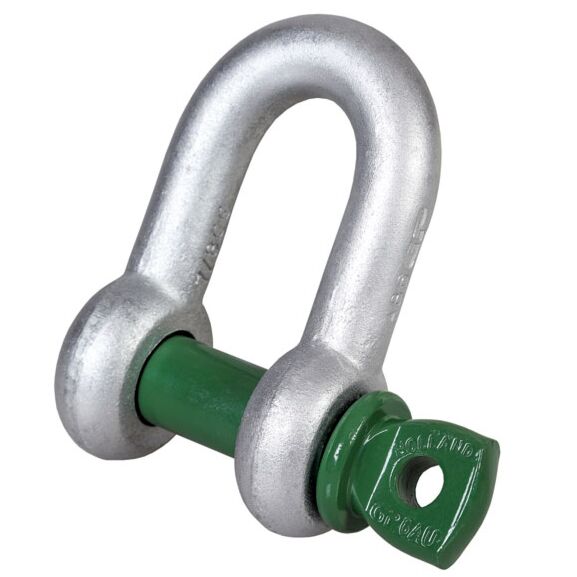

Galvanised Steel Green Screw Collar Pin D Shackle

More Views

Show Price without VAT

Availability: In stock

Grade 6 high tensile steel, quenched and tempered lifting VAN BEEST - GREEN PIN branded d or dee shackle

Minimum breaking load is 6 times the Working Load Limit (WLL)

Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2

Grade A Hot dipped galvanised steel shackle with a removable green pin

Working temperature range from -20 °C up to +200 °C. DNV Type Approved Shackle

Product Name	A (mm)	E (mm)	h (mm)	F (mm)	C (mm)	B (mm)	G (mm)	D (mm)	WLL (tonnes)	Price
0.33 tonnes Green Screw Pin D Shackle	5	9.5	31	19	12.5	6	38	5	0.33	Excl. VAT: £2.44 Incl. VAT: £2.93
0.5 tonnes Green Screw Pin D Shackle	7	12	40	22	17	8	47	7	0.5	Excl. VAT: £2.49 Incl. VAT: £2.99
0.75 tonnes Green Screw Pin D Shackle	9	13.5	49	26	21	10	56	9	0.75	Excl. VAT: £2.94 Incl. VAT: £3.53
1.00 tonnes Green Screw Pin D Shackle	10	17	56	32	23	11	66	10	1.00	Excl. VAT: £2.99 Incl. VAT: £3.59
1.5 tonnes Green Screw Pin D Shackle	11	19	68	37	26	13	74	11	1.5	Excl. VAT: £3.32 Incl. VAT: £3.98
2 tonnes Green Screw Pin D Shackle	13.5	22	76	43	34	16	85	13.5	2	Excl. VAT: £4.99 Incl. VAT: £5.99
3.25 tonnes Green Screw Pin D Shackle	16	27	93	51	40	19	105	16	3.25	Excl. VAT: £5.99 Incl. VAT: £7.19
4.75 tonnes Green Screw Pin D Shackle	19	31	107	59	47	22	125	19	4.75	Excl. VAT: £7.99 Incl. VAT: £9.59
6.5 tonnes Green Screw Pin D Shackle	22	36	123	73	53	25	144	22	6.5	Excl. VAT: £10.99 Incl. VAT: £13.19
8.5 tonnes Green Screw Pin D Shackle	25	43	141	85	60	28	161	25	8.5	Excl. VAT: £14.99 Incl. VAT: £17.99
9.5 tonnes Green Screw Pin D Shackle	28	47	158	90	67	32	179	28	9.5	Excl. VAT: £22.99 Incl. VAT: £27.59
12 tonnes Green Screw Pin D Shackle	32	51	176	94	74	35	199	32	12	Excl. VAT: £29.49 Incl. VAT: £35.39
