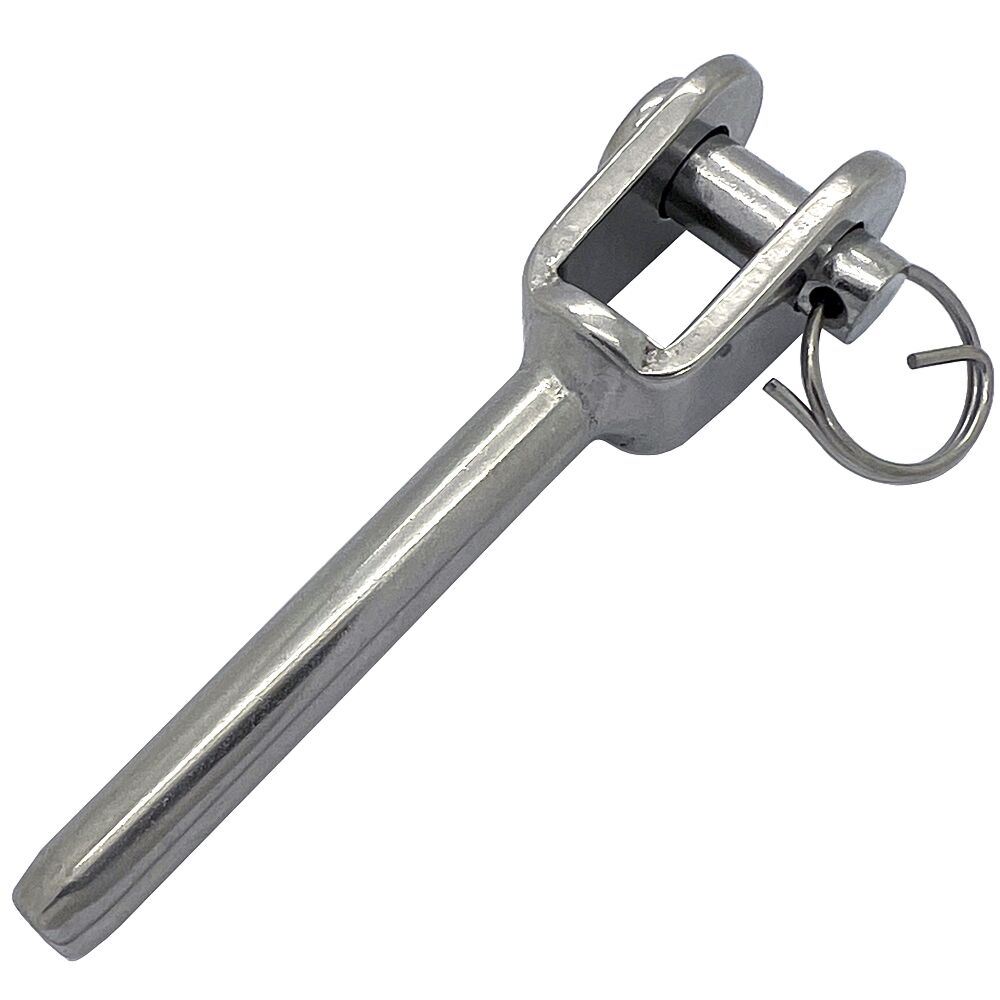

Stainless Steel Wire Rope Swage Jaw Fork Terminals

More Views

Stainless Steel Wire Rope Swage Jaw Fork Terminals
Show Price without VAT

Availability: In stock

A4-AISI 316 Marine Grade Stainless Steel with a Polished Finish

These need to be Hydraulically Crimped / Swaged onto your Steel Wire Rope

Removable Clevis Pin which is kept captive by a split ring

Swage Fork or Jaw available for 3mm 4mm 5mm 6mm 8mm 10mm and 12mm diameter Steel Wire Ropes
Product Name Suit Wire Ø (mm) A (mm) L1 (mm) D3 (mm) D1 (mm) D2 (mm) L2 (mm) Price Qty
3mm Stainless Steel Swage Jaw Terminal 3 7.5 65 5 3.3 6.35 32
Excl. VAT: £1.24 Incl. VAT: £1.49
4mm Stainless Steel Swage Jaw Terminal 4 10 77 8 4.2 7.5 40
Excl. VAT: £1.84 Incl. VAT: £2.21
5mm Stainless Steel Swage Jaw Terminal 5 12 88 8 5.2 9 57
Excl. VAT: £2.44 Incl. VAT: £2.93
6mm Stainless Steel Swage Jaw Terminal 6 14 106 9 6.25 12.5 63
Excl. VAT: £4.79 Incl. VAT: £5.75
8mm Stainless Steel Swage Jaw Terminal 8 15 145 14 8.4 16.1 85
Excl. VAT: £8.99 Incl. VAT: £10.79
10mm Stainless Steel Swage Jaw Terminal 10 20 150 19 11 18 90
Excl. VAT: £14.99 Incl. VAT: £17.99
12mm Stainless Steel Swage Jaw Terminal 12 23 195 19 14 18 100
Excl. VAT: £16.66 Incl. VAT: £19.99
