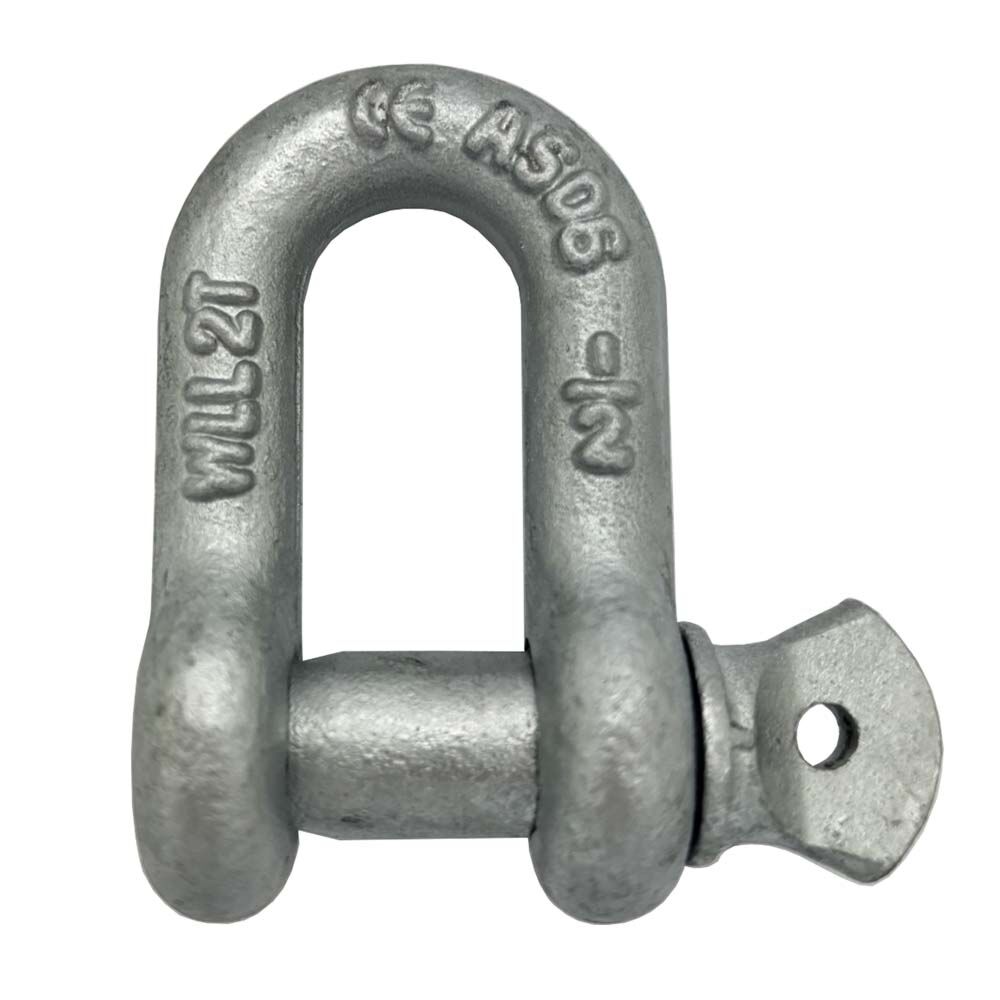

Galvanised Steel US Federal US Federal RR-C-271 D Shackles

GS Products offer a range of hot dipped galvanised steel D shackles with a 6:1 safety factor.

These D shackles are drop forged for maximum strength and have their working load limit and CE stamped for guidance on the shackle body.

The shackle pin is completely removable from the shackle body.

Available in 6mm, 8mm, 10mm, 11mm, 12mm, 16mm, 18mm, 22mm, 25mm, 28mm, and 30mm. Order online today.

In stock

Grouped product items
Product Name	E (mm)	d (inches)	D (inches)	S (inches)	W (inches)	SWL Tonnes	PRICE
6mm 0.50ton US Fed D Shackle	17	1/4"	5/16"	7/8"	15/32"	0.50	£0.71 £0.59
8mm 0.75ton US Fed D Shackle	22	5/16"	3/8"	1-1/32"	17/32"	0.75	£0.91 £0.76
10mm 1.00ton US Fed D Shackle	25	3/8"	7/16"	1-1/4"	21/32"	1.00	£1.02 £0.85
11mm 1.50ton US Fed D Shackle	25	7/16"	1/2"	1-7/16"	23/32"	1.50	£1.16 £0.97
12mm 2.00ton US Fed D Shackle	29	1/2"	5/8"	1-5/8"	13/16"	2.00	£1.58 £1.32
16mm 3.25ton US Fed D Shackle	39	5/8"	3/4"	2"	1-1/16"	3.25	£2.63 £2.19
18mm 4.75ton US Fed D Shackle	46	3/4"	7/8"	2-3/8"	1-1/4"	4.75	£5.11 £4.26
22mm 6.50ton US Fed D Shackle	53	7/8"	1"	2-13/16"	1-7/16"	6.50	£6.95 £5.79
25mm 8.50ton US Fed D Shackle	60	1"	1-1/8"	3-3/16"	1-11/16"	8.50	£9.38 £7.82
28mm 9.50ton US Fed D Shackle	67	1-1/8"	1-1/4"	3-9/16"	1-13/16"	9.50	£14.21 £11.84
30mm 12.00ton US Fed D Shackle	78	1-1/4"	1-3/8"	3-15/16"	2-1/32"	12.00	£16.79 £13.99
