Stainless Steel Wire Rope Balustrade Ball and Curved Socket System

More Views

Stainless Steel Wire Rope Balustrade Ball and Curved Socket System
Show Price without VAT

Availability: In stock

Easy to use, this ball and socket adjustable steel wire rope system is suitable for 42.4mm diameter round balustrade posts. A4 / AISI 316 stainless steel with a high polished finish offers maximum corrosion resistance.

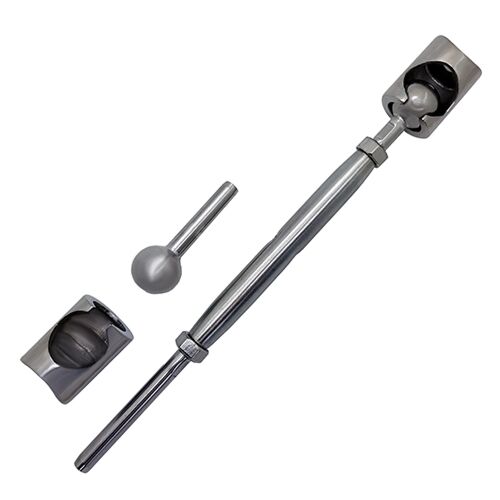

With this kit you get:

  • 2 x curved sockets with fixing screws
  • 1 x swage ball terminal
  • 1 x swage adjuster with ball terminal
  • 2 x M6 x 15mm fixing screws

Curved mounting sockets allow sleek attachment to your 42.4mm steel balustrade posts. The swage ball end and swage ball adjuster easily interlock with the sockets and create a stunning finish. This system allows 45 degrees of articulation for any inclines on your wire system.

Suitable for 4mm diameter stainless steel wire rope.

Perfect for straight runs or angles up to 35 degrees.

A hydraulic crimping tool  will need to be used with this system to swage the terminals onto the steel wire rope.

Email us for a quote if you would like us to fabricate your balustrade system in house.

Product Name Suit Wire Ø (mm) A (mm) D3 (mm) L1 (mm) D2 (mm) M (mm) D1 (mm) R (mm) B (mm) L2 (mm) D (mm) L (mm) Price Qty
Stainless Steel Ball and Socket Kit 4 20 6.5 190 4.4 8 7.5 42.4 38 31 25 105
Excl. VAT: £19.99 Incl. VAT: £23.99
