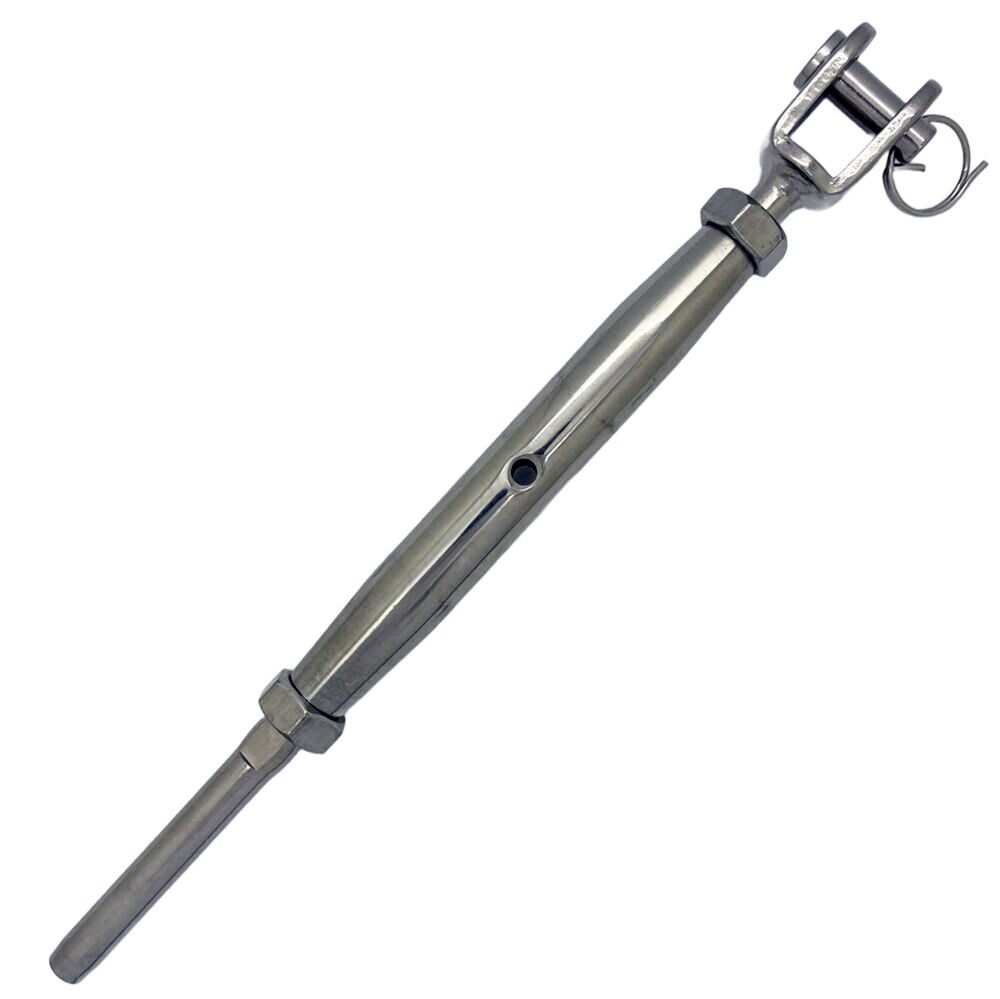

Stainless Steel Rigging Screws Jaw and Wire Rope Swage Stud

More Views

Stainless Steel Rigging Screws Jaw and Wire Rope Swage Stud

Show Price without VAT

Availability: In stock

Also Known as Barrel Strainers, Closed Body Turnbuckle Tentioners and Balustrading Wire Adjusters

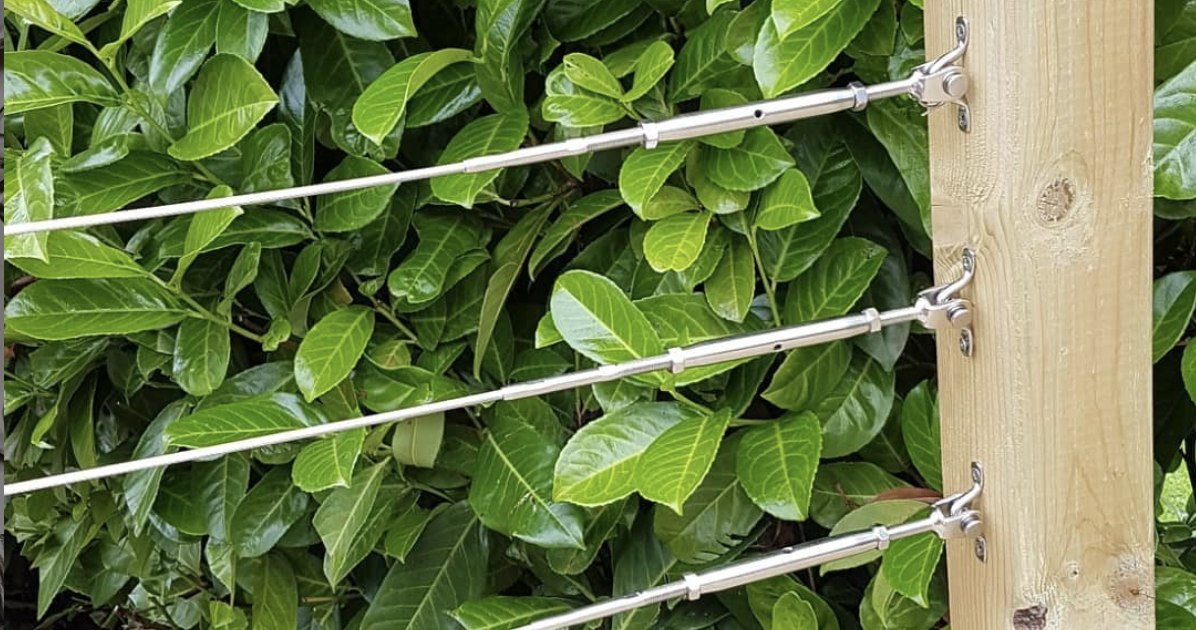

Your Steel Wire Rope slots into the Swage End and then needs to be hydraulically pressed onto your Rigging Steel Wire to create an inline Balustrade or Rigging Adjuster

Sizes to suit 3mm 4mm 5mm 6mm and 8mm Steel Wire Rope

PLEASE MAKE SURE to double check that you are buying the correct rigging screw to suit your wire rope diameter

Product Name	A (mm)	D1 (mm)	D3 (mm)	D2 (mm)	H (mm)	L1 (mm)	To Suit Rope	L (mm)	D (mm)	Break Load (Kgs)	Price
6mm Stainless Steel Rigging Screw for 3mm Wire Rope	7.5	6	3.2	6.5	10	175	3mm	90	6	1500	Excl. VAT: £3.99 Incl. VAT: £4.79
8mm Stainless Steel Rigging Screw for 4mm Wire Rope	11	8	4.3	7.5	11	205	4mm	105	8	3000	Excl. VAT: £5.79 Incl. VAT: £6.95
10mm Stainless Steel Rigging Screw for 5mm Wire Rope	12	10	5.3	9	14	230	5mm	125	9	4300	Excl. VAT: £8.99 Incl. VAT: £10.79
12mm Stainless Steel Rigging Screw for 6mm Wire Rope	14	12	6.3	12.6	21	285	6mm	150	12	6500	Excl. VAT: £14.99 Incl. VAT: £17.99
16mm Stainless Steel Rigging Screw for 8mm Wire Rope	17	16	8.3	16	26	375	8mm	190	16	9500	Excl. VAT: £39.99 Incl. VAT: £47.99
