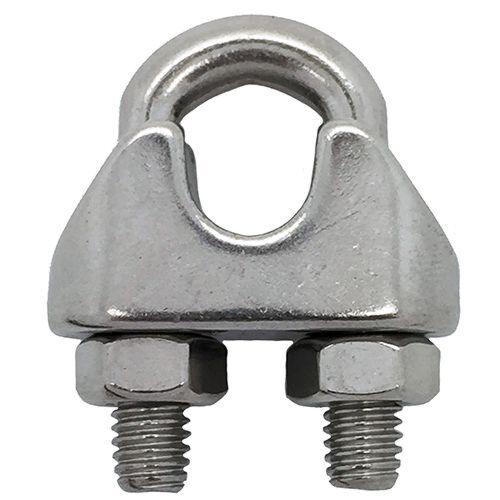

Stainless Steel Wire Rope Grips DIN741

More Views

Videos

Stainless Steel Wire Rope Grips DIN741
Show Price without VAT

Availability: In stock

A4-AISI 316, Polished Finish Stainless Steel

Also known as Bull Dog Grips, Wire Rope Clamps and Wire Clips

2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 16mm 19mm and 25mm diameters available

It is recommended to use 3 Steel Wire Rope Clamps per end

TIP - These grips are sized on a like for like basis, eg. if you have 3mm wire rope and wish to create a loop by threading two wires through the grip you will need to buy a 3mm wire rope grip
Product Name Suit Wire Ø (mm) A (mm) H1 (mm) B2 (mm) B1 (mm) I (mm) H2 (mm) D (mm) Price Qty
2mm Stainless Steel Wire Rope Grip DIN741 2 10 17 10 4 17 10 M3
Excl. VAT: £0.45 Incl. VAT: £0.54
3mm Stainless Steel Wire Rope Grip DIN741 3 10 21 10 4 20 10 M4
Excl. VAT: £0.49 Incl. VAT: £0.59
4mm Stainless Steel Wire Rope Grip DIN741 4 13 23 11 6 20 13 M4
Excl. VAT: £0.54 Incl. VAT: £0.65
5mm Stainless Steel Wire Rope Grip DIN741 5 13 26 11 7 23 11 M5
Excl. VAT: £0.59 Incl. VAT: £0.71
6mm Stainless Steel Wire Rope Grip DIN741 6 16 30 13 8 26 11 M5
Excl. VAT: £0.69 Incl. VAT: £0.83
8mm Stainless Steel Wire Rope Grip DIN741 8 19 36 14 10 30 16 M6
Excl. VAT: £0.82 Incl. VAT: £0.98
10mm Stainless Steel Wire Rope Grip DIN741 10 21 44 18 12 34 16 M8
Excl. VAT: £1.59 Incl. VAT: £1.91
13mm Stainless Steel Wire Rope Grip DIN741 13 26 56 23 15 41 22 M10
Excl. VAT: £2.49 Incl. VAT: £2.99
16mm Stainless Steel Wire Rope Grip DIN741 16 31 64 26 19 50 26 M12
Excl. VAT: £3.69 Incl. VAT: £4.43
19mm Stainless Steel Wire Rope Grip DIN741 19 37 76 29 22 53 30 M12
Excl. VAT: £6.99 Incl. VAT: £8.39
25mm Stainless Steel Wire Rope Grip DIN741 25 37 76 29 28 68 37 M14
Excl. VAT: £9.99 Incl. VAT: £11.99


A simple guide on how to use and fit your steel wire rope grips

  • Din741, Din1142 and US Federal Steel Wire Rope Grips should be spaced six wire rope diameters apart to give adequate holding power (eg. 5mm wire rope = 30mm distance between grips)
  • We recommend a minimum of 3 grips per end
  • They should be tightened before the rope is placed under tension
  • After the load is placed on the wire rope, tighten the clamps again to take care of any lessening in rope diameter caused by tension of the load
  • Regularly check the nuts ensuring they are still fastened tightly
  • The Wire Rope Grips are sized like for like, eg. If you have 5mm wire rope then buy 5mm grips, each grip allows that diameter of wire to pass through twice to form a loop
  • It is generally accepted that you should achieve 50% of the wire rope breaking load as a guide to holding power

Please take note of the above image, the dead end of the wire (cut end) should always be at the top, the live end should always be at the bottom on the saddle.
