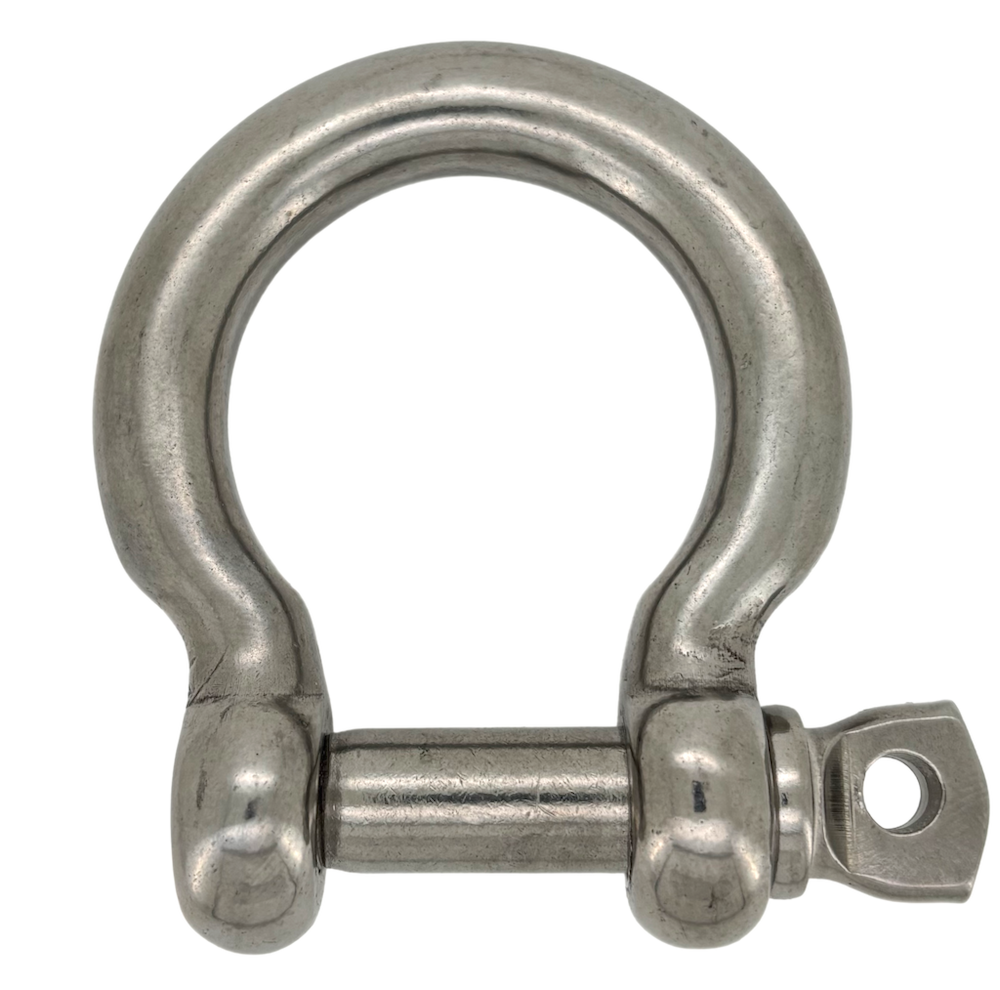

Stainless Steel Bow Shackles - AISI 316

Take a look at our A4 marine grade AISI 316 stainless steel forged bow shackles

It has high polished finish. The shackle pin is totally removable from the bowed round shackle body

This shackles is very popular as the extra space in the bowed body allows for loads to be applied on angles, please note the body pattern design can change slightly from batch to batch

We have 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm and 19mm diameter bow shackles available. Order yours online today - UK STOCK - Get them fast

In stock
Grouped product items
Product Name A (mm) L (mm) R (mm) Ø (mm) Break Load (Kgs) PRICE Qty
3mm Bow Shackle 7 11 11 3 500
£0.98 £0.82
  • Buy 100 for £0.97 £0.81 each and save 1%
  • Buy 250 for £0.95 £0.79 each and save 4%
4mm Bow Shackle 8 14 14 4 800
£0.59 £0.49
  • Buy 100 for £0.58 £0.48 each and save 2%
  • Buy 250 for £0.56 £0.47 each and save 4%
5mm Bow Shackle 10 17.5 17 5 1200
£0.67 £0.56
  • Buy 100 for £0.65 £0.54 each and save 4%
  • Buy 250 for £0.62 £0.52 each and save 7%
6mm Bow Shackle 12 21 21 6 1900
£0.82 £0.68
  • Buy 100 for £0.79 £0.66 each and save 3%
  • Buy 250 for £0.77 £0.64 each and save 6%
8mm Bow Shackle 16 28 28 8 2800
£1.19 £0.99
  • Buy 100 for £1.18 £0.98 each and save 1%
  • Buy 250 for £1.15 £0.96 each and save 3%
10mm Bow Shackle 20 35 34 10 4300
£1.99 £1.66
  • Buy 100 for £1.97 £1.64 each and save 1%
  • Buy 250 for £1.91 £1.59 each and save 4%
12mm Bow Shackle 24 42 42 12 6500
£3.19 £2.66
  • Buy 100 for £3.06 £2.55 each and save 4%
  • Buy 250 for £2.98 £2.48 each and save 7%
16mm Bow Shackle 32 56 42 16 12000
£7.58 £6.32
  • Buy 100 for £7.19 £5.99 each and save 5%
  • Buy 250 for £6.86 £5.72 each and save 9%
19mm Bow Shackle 38 78 66 19 18200
£14.99 £12.49
  • Buy 100 for £14.74 £12.28 each and save 2%
  • Buy 250 for £14.27 £11.89 each and save 5%
25mm Bow Shackle 50 96 75 25 24000
£29.99 £24.99
  • Buy 100 for £28.56 £23.80 each and save 5%
  • Buy 250 for £27.24 £22.70 each and save 9%
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet

Stainless Steel Bow Shackles FAQs

What is a breaking load?

A breaking load outlines product performance, it is not a tested load. This shackle is not safe for lifting - we do stock stainless steel lifting bow shackles here

Is the pin totally removable?

Yes, the pin can be totaaly removed from the shackle

Are these marine grade stainless steel?

Yes, they are AISI 316 marine grade bow shackles

Are these in stock?

Yes, we keep a lot of stock of these as they are very popular
