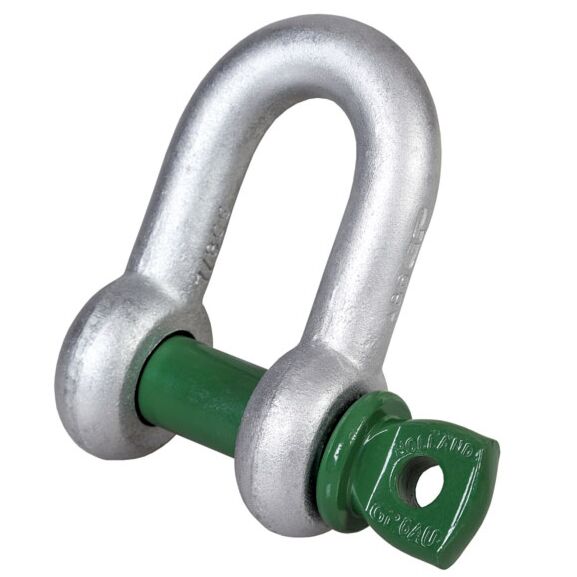

12 tonnes WLL VAN BEEST Green Pin Screw Pin D Shackle - BS EN 13889
In stock
SKU: A0212
| a | 32mm |
| b | 35mm |
| c | 74mm |
| d | 32mm |
| e | 51mm |
| f | 94mm |
| g | 199mm |
| h | 176mm |
| Working Load Limit | 12.00 tonnes (6:1 safety factor) |
| Weight | 3.72kgs |
- VAN BEEST Green Pin Lifting D shackle with a removable screw collar pin.
- 6:1 Safety Factor (the breaking load limit is 6x the Working Load Limit).
- Suitable for lifting applications.
- Hot dipped galvanised.
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Temperature range from -40° up to 200°.
- Conforms to BS EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 type IVA class 2, grade A.
£74.42
£62.02
