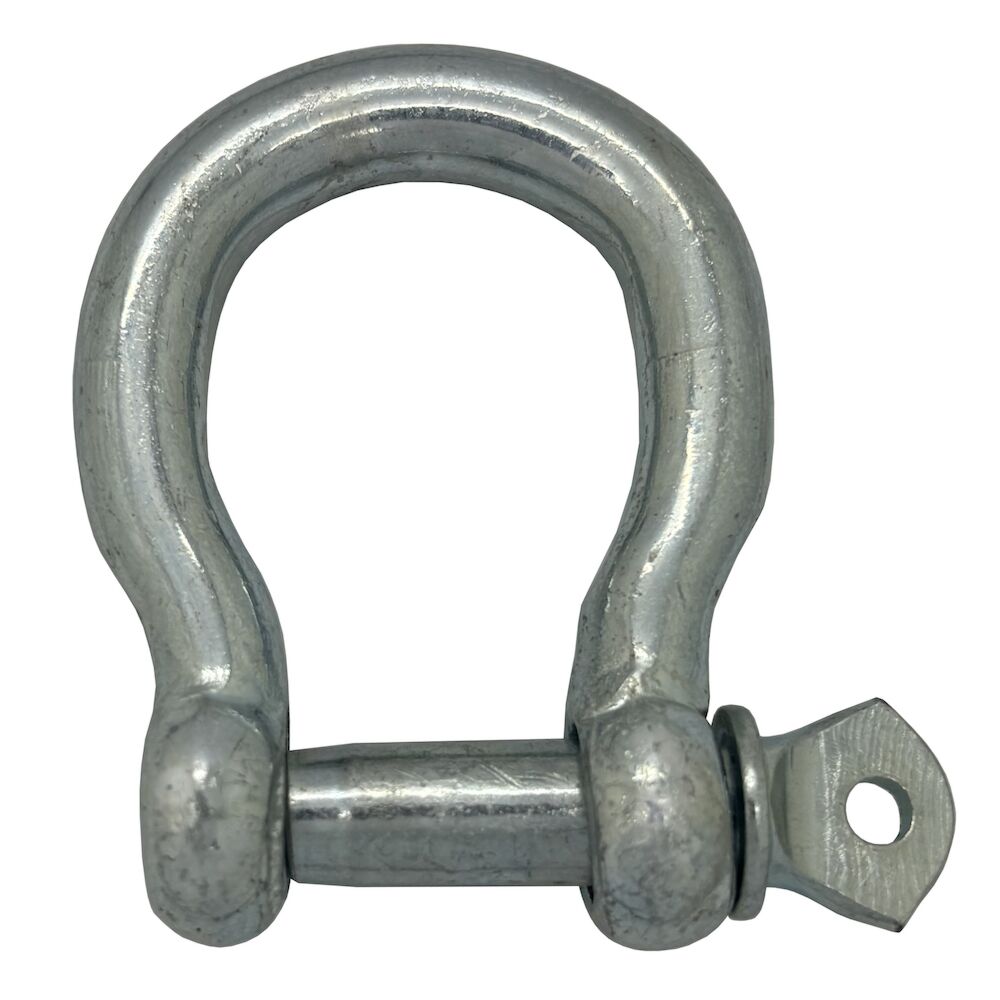

Galvanised Steel Bow Shackles

More Views

Show Price without VAT

Availability: In stock

Also known as O Shackles and Anchor Shackles. Bow Shaped

Electro Galvanised Mild Steel

The O Loop in the Body allows for more room and allows for loads to be applied easier on different angles

Screwed collared pin which can be totally removed from the body

5mm 6mm 8mm 10mm 12mm 16mm 20mm 22mm and 25mm diameters available, Not to be used for lifting

Product Name	W (mm)	S (mm)	R (mm)	E (mm)	d (mm)	D (mm)	Price
5mm Galvanised Bow Shackle	10	17	8	10	5	5	Excl. VAT: £0.14 Incl. VAT: £0.17
6mm Galvanised Bow Shackle	12	21	10	12	6	6	Excl. VAT: £0.17 Incl. VAT: £0.20
8mm Galvanised Bow Shackle	16	28	16	14	8	8	Excl. VAT: £0.26 Incl. VAT: £0.31
10mm Galvanised Bow Shackle	20	35	17	20	10	10	Excl. VAT: £0.38 Incl. VAT: £0.46
12mm Galvanised Bow Shackle	24	42	21	24	12	12	Excl. VAT: £0.66 Incl. VAT: £0.79
16mm Galvanised Bow Shackle	32	64	28	32	16	16	Excl. VAT: £1.19 Incl. VAT: £1.43
20mm Galvanised Bow Shackle	32	66	33	40	20	20	Excl. VAT: £2.49 Incl. VAT: £2.99
22mm Galvanised Bow Shackle	44	88	38	44	22	22	Excl. VAT: £2.99 Incl. VAT: £3.59
25mm Galvanised Bow Shackle	48	96	42	50	25	25	Excl. VAT: £4.49 Incl. VAT: £5.39
