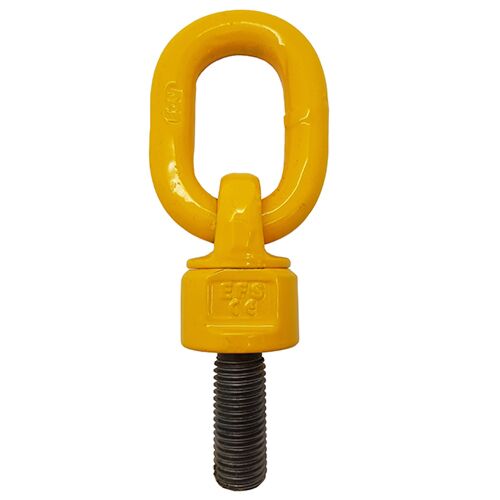

Grade 80 Swivel Lifting Point Eye Bolts

GS Products supply grade 80 alloy steel swivel eye bolts with fitted bearings.

Each comes with welded oval link and can turn multi-directional for lifting applications.

These bolts have been individually tested to 2 times the working load limit. The factor of safety is 4:1.

M10, M12, M16, M20, M24 and M30 diameters available in various lengths. Order yours online today.

In stock
Grouped product items
Product Name A (mm) d (mm) L (mm) H (mm) D (mm) W (mm) W.L.L PRICE Qty
M10 x 18mm Swivel Eye Bolt 51 14 18 55 10 30 0.45t
£18.00 £15.00
M10 x 90mm Swivel Eye Bolt 51 14 90 55 10 30 0.50t
£22.56 £18.80
M12 x 18mm Swivel Eye Bolt 51 14 18 55 12 30 0.50t
£20.26 £16.88
M12 x 110mm Swivel Eye Bolt 51 14 110 55 12 30 0.50t
£24.53 £20.44
M16 x 40mm Swivel Eye Bolt 52 14 40 55 16 30 1.12t
£21.24 £17.70
M16 x 120mm Swivel Eye Bolt 52 14 120 55 16 30 1.12t
£27.31 £22.76
M20 x 30mm Swivel Eye Bolt 68 16 30 70 20 35 2.00t
£34.54 £28.78
M20 x 120mm Swivel Eye Bolt 68 16 120 70 20 35 2.00t
£41.06 £34.22
M24 x 40mm Swivel Eye Bolt 78 18 40 85 24 40 3.15t
£54.12 £45.10
M24 x 120mm Swivel Eye Bolt 78 18 120 85 24 40 3.15t
£61.13 £50.94
M30 x 35mm Swivel Eye Bolt 96.5 20 35 85 30 40 5.30
£79.20 £66.00
M30 x 120mm Swivel Eye Bolt 96.5 20 120 85 30 40 5.30
£86.40 £72.00
Show Price without VAT






What is the thread pitch for your Grade 80 eye bolts?

All of our Eye Bolts are suppllied with a Metric Coarse standard thread as per ISO 262 or BS 3643 specifications, please refer to the table below for thread pitches
