Galvanised Steel Wire Rope Thimbles

More Views

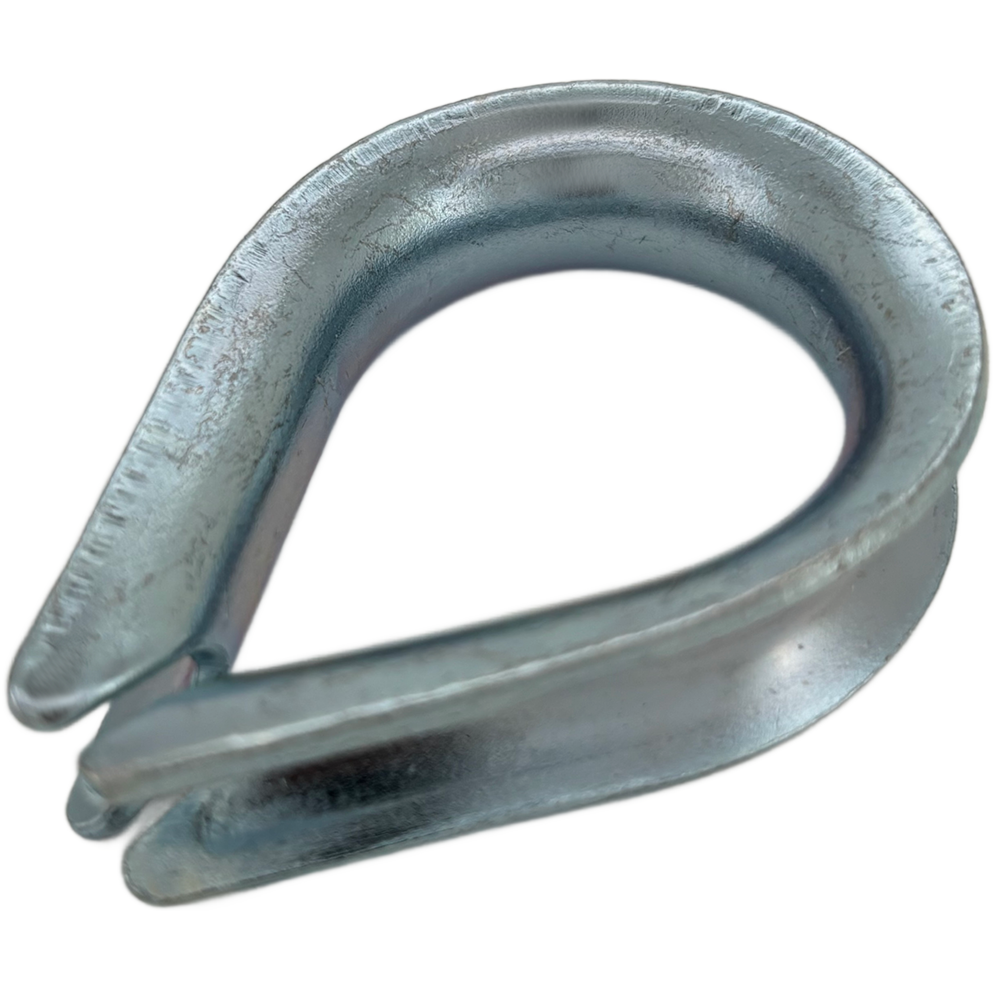

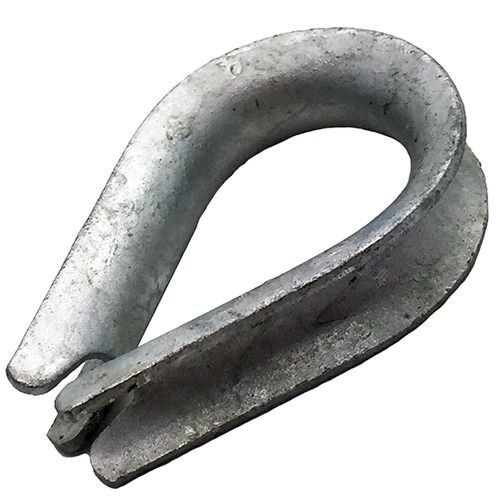

Galvanised Steel Wire Rope Thimbles
Show Price without VAT

Availability: In stock

A thimble can be installed inside the loop to preserve the natural shape of the loop and protect the cable from damaging, pinching and abrading

The use of steel wire rope eyelet thimbles in loops is industry best practice and is also known as an 'Hard Eye'

Available to suit 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm and 26mm diameter Steel Wire Ropes
Product Name Suit Wire Ø (mm) A (mm) S (mm) B (mm) C (mm) L (mm) Price Qty
3-4mm Galvanised Steel Wire Rope Thimble 3-4 4 1.6 26 13 21
Excl. VAT: £0.09 Incl. VAT: £0.11
5mm Galvanised Steel Wire Rope Thimble 5 6 2.4 31 16 22
Excl. VAT: £0.09 Incl. VAT: £0.11
6mm Galvanised Steel Wire Rope Thimble 6 8 2.8 37 19 26
Excl. VAT: £0.12 Incl. VAT: £0.14
8mm Galvanised Steel Wire Rope Thimble 8 10 3.1 51 24 34
Excl. VAT: £0.18 Incl. VAT: £0.22
10mm Galvanised Steel Wire Rope Thimble 10 12 3.3 64 32 42
Excl. VAT: £0.22 Incl. VAT: £0.26
12mm Galvanised Steel Wire Rope Thimble 12 12 3.3 76 38 51
Excl. VAT: £0.38 Incl. VAT: £0.46
14mm Galvanised Steel Wire Rope Thimble 14 14 4.1 82 40 57
Excl. VAT: £0.48 Incl. VAT: £0.58
16mm Galvanised Steel Wire Rope Thimble 16 16 4.7 89 42 60
Excl. VAT: £0.64 Incl. VAT: £0.77
18mm Galvanised Steel Wire Rope Thimble 18 18 5.7 102 46 72
Excl. VAT: £0.98 Incl. VAT: £1.18
20-22mm Galvanised Steel Wire Rope Thimble 20-22 24 6.5 127 54 83
Excl. VAT: £1.99 Incl. VAT: £2.39
24-26mm Galvanised Steel Wire Rope Thimble 24-26 28 8 152 68 102
Excl. VAT: £2.99 Incl. VAT: £3.59
