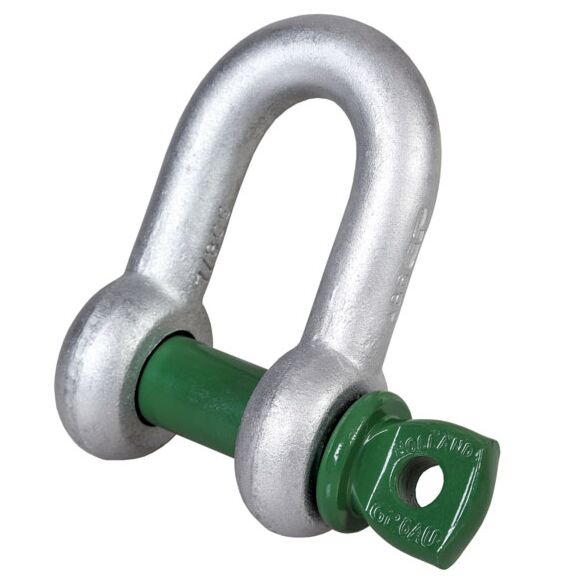

9.5 tonnes WLL VAN BEEST Green Pin Screw Pin D Shackle - BS EN 13889
In stock
SKU: A0211
| a | 28mm |
| b | 32mm |
| c | 67mm |
| d | 28mm |
| e | 47mm |
| f | 90mm |
| g | 179mm |
| h | 158mm |
| Working Load Limit | 9.50 tonnes (6:1 safety factor) |
| Weight | 2.77kgs |
- VAN BEEST Green Pin Lifting D shackle with a removable screw collar pin.
- 6:1 Safety Factor (the breaking load limit is 6x the Working Load Limit).
- Suitable for lifting applications.
- Hot dipped galvanised.
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Temperature range from -40° up to 200°.
- Conforms to BS EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 type IVA class 2, grade A.
£55.27
£46.06
