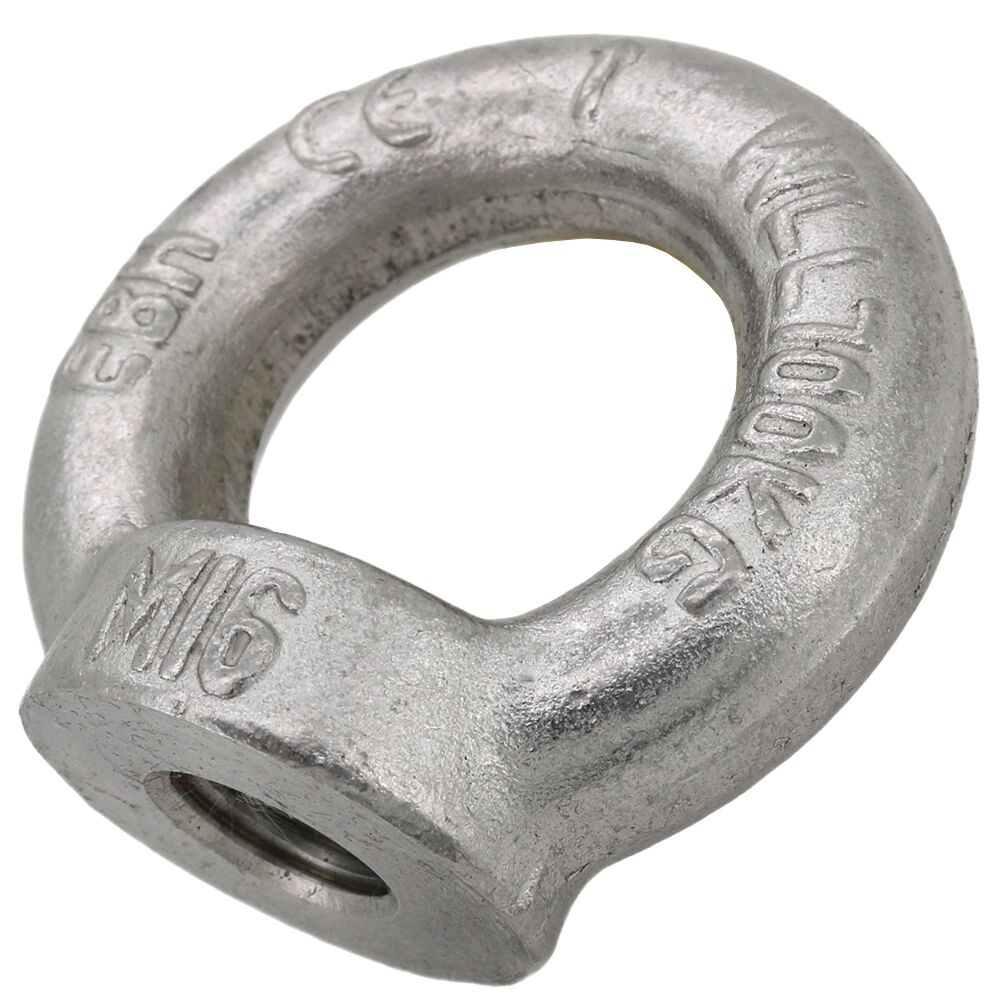

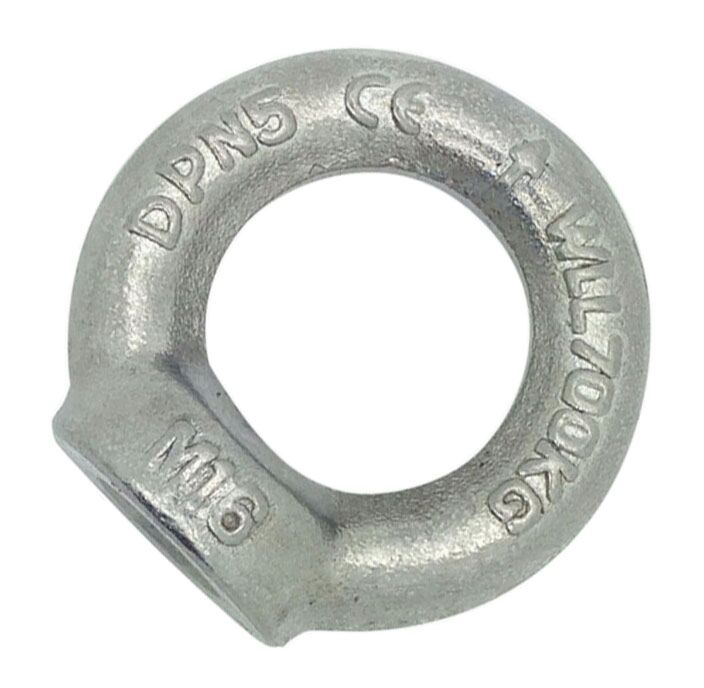

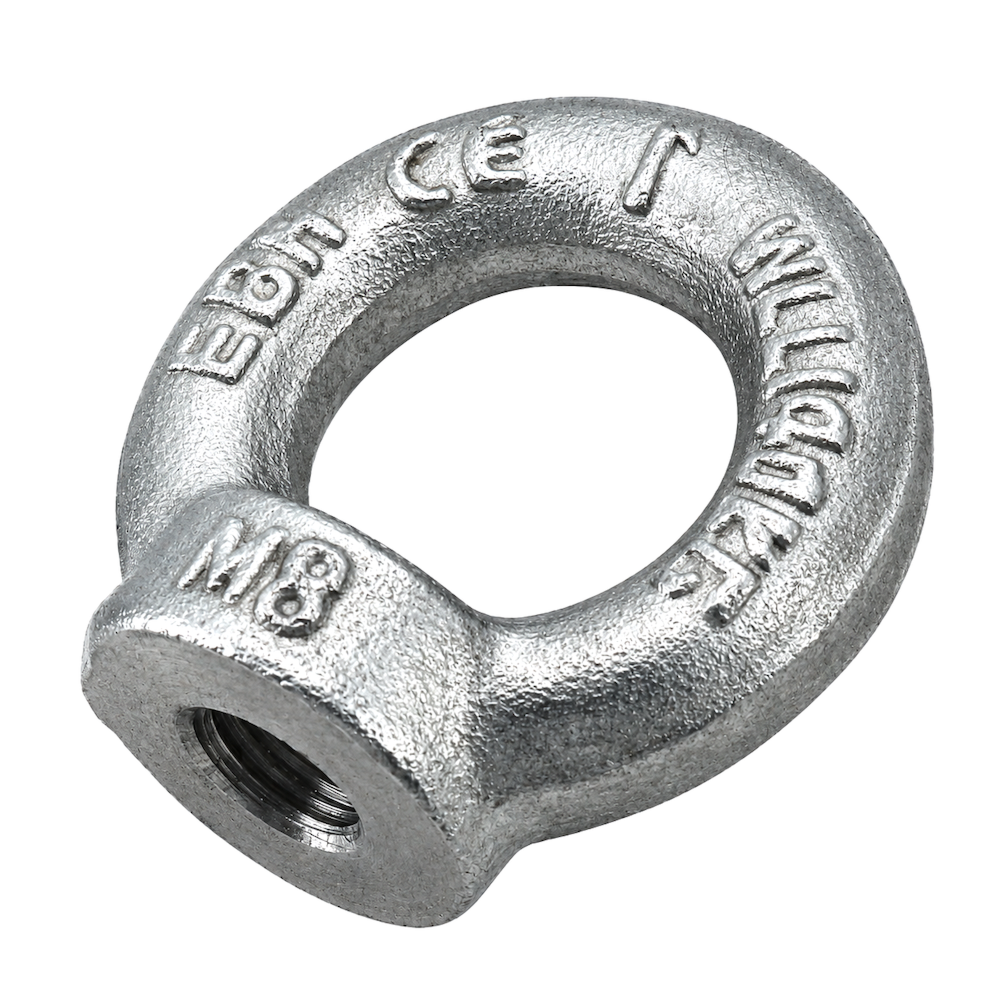

Stainless Steel Lifting Eye Nuts - AISI 316 - DIN 582 - Forged - WLL Rated

GS Products supply A4-AISI 316 grade stainless steel lifting female thread eye nuts that have been drop forged and tempered for extra strength.

These marine grade stainless lifting eye nuts are working load limit rated and are suitable for lifting applications. Supplied with WLL, CE, and Batch ID markings on the body for clear guidance and full traceability.

Manufactured to DIN 582 specification, available in 8mm, 10mm, 12mm, 16mm 20mm and 24mm internal thread diameters.

4:1 factor of safety. The stated WLL is for vertical lifts only.

Supplied with a statement of conformity certificate.

In stock
Grouped product items
Product Name H (mm) D (mm) E (mm) WLL (kg) PRICE Qty
M8 Stainless Steel Eye Nut 33 8 20 140
£3.59 £2.99
M10 Stainless Steel Eye Nut 42 10 25 230
£4.39 £3.66
M12 Stainless Steel Eye Nut 51 12 30 340
£6.95 £5.79
M16 Stainless Steel Eye Nut 60 16 35 700
£10.19 £8.49
M20 Stainless Steel Eye Nut 68 20 40 1200
£16.79 £13.99
M24 Stainless Steel Eye Nut 86 24 50 1800
£27.59 £22.99
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet






Stainless Steeel Lifting Eye Nuts DIN 582 Key Features

  • Supplied with a statement of conformity certificate
  • Suitable for lifting applications
  • Drop forged for extra strength
  • Conforms to DIN 582 specification
  • W.L.L based on vertical lifts only
  • Marked with W.L.L, CE and ID mark
  • Safety Factor 4:1 (breaking load is 4x the W.L.L)
  • A4 - AISI 316 marine grade stainless steel
  • UK Stockists - get them fast!
