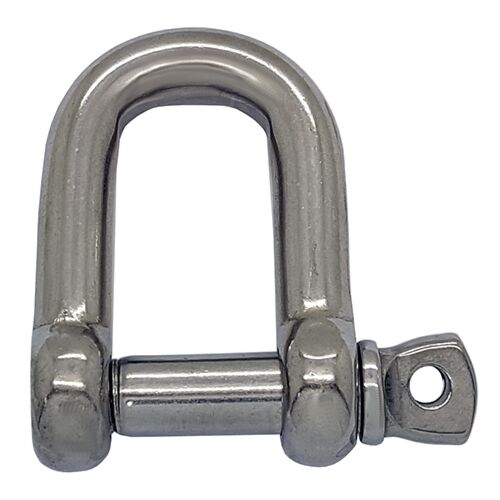

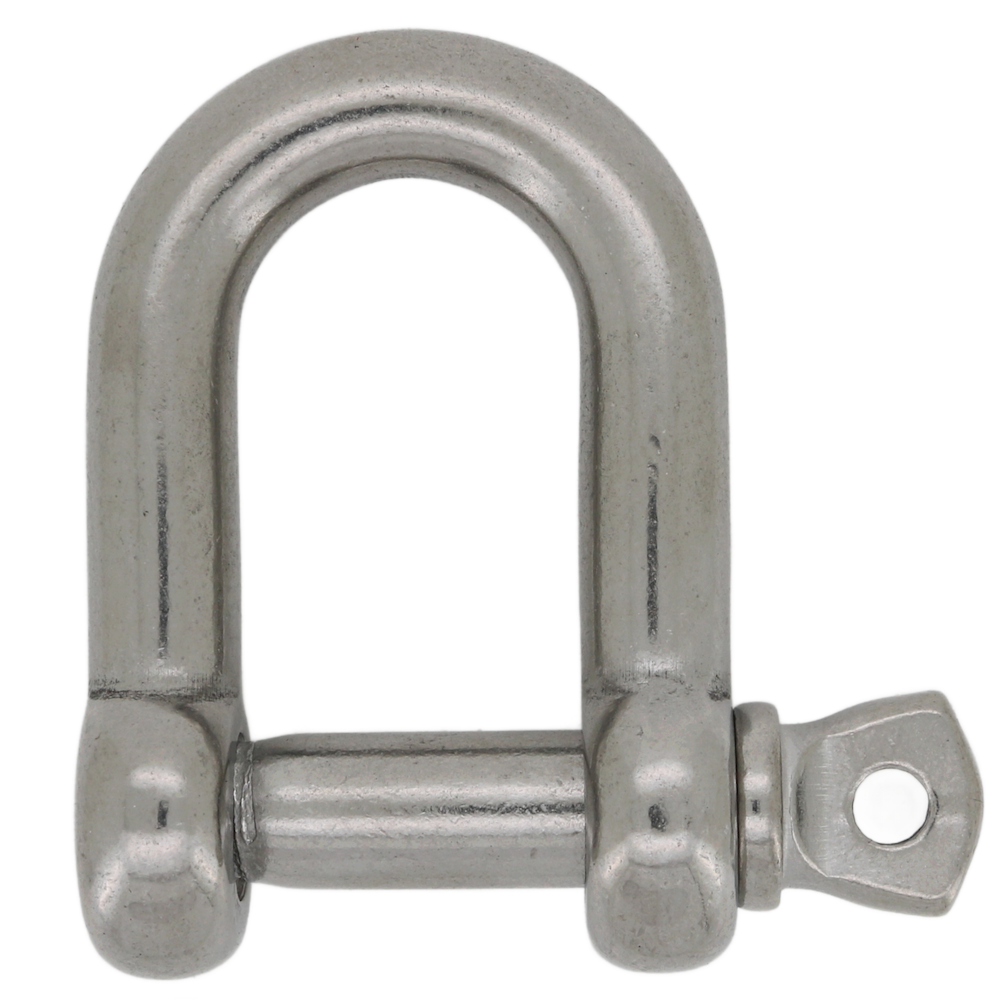

Stainless Steel D Shackles

These A4-AISI 316 Stainless Steel Shackles are tough, durable and manufactured to a high level of quality with a high polished finish.



They feature a screw collared pin which is totally removable from the dee shaped shackle body. They are ideal for maritime use but suitable for a range of industries including construction and industrial.



Our D shackles are available in a wide range of sizes including 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm and 19mm diameter.

In stock
Grouped product items
Product Name d (mm) D (mm) E (mm) W (mm) S (mm) Break Load (Kgs) PRICE Qty
3mm Stainless Steel D Shackle 3 3 6 7 11 500
£0.94 £0.78
4mm Stainless Steel D Shackle 4 4 8 8 14 700
£0.71 £0.59
5mm Stainless Steel D Shackle 5 5 10 10 14.5 1000
£1.10 £0.92
6mm Stainless Steel D Shackle 6 6 12 12 21 1500
£1.37 £1.14
8mm Stainless Steel D Shackle 8 8 16 16 28 3000
£2.27 £1.89
10mm Stainless Steel D Shackle 10 10 20 20 36 4500
£3.26 £2.72
12mm Stainless Steel D Shackle 12 12 24 24 44 7000
£4.79 £3.99
16mm Stainless Steel D Shackle 16 16 32 32 56 10000
£9.59 £7.99
19mm Stainless Steel D Shackle 19 19 38 35 65 16000
£28.79 £23.99
