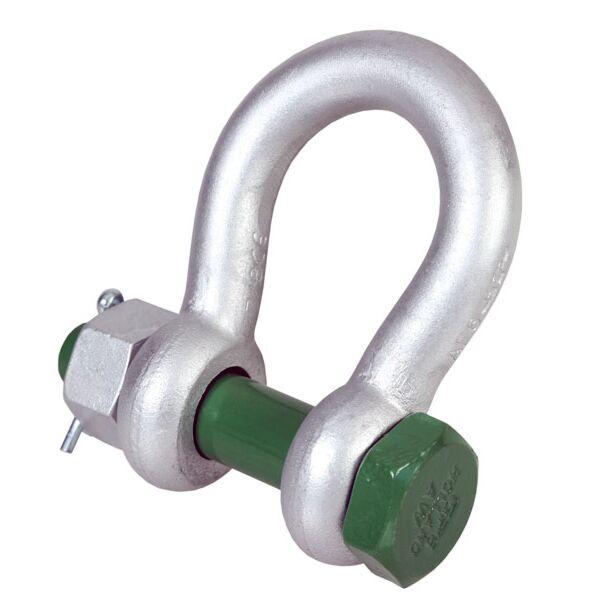

Galvanised Steel Green Screw Collar Pin Bow Shackle With Safety Nut And Bolt Pin

More Views

Galvanised Steel Green Screw Collar Pin Bow Shackle With Safety Nut And Bolt Pin
Show Price without VAT

Availability: In stock

Grade 6 high tensile steel, quenched and tempered lifting VAN BEEST - GREEN PIN branded Bow shackle

Minimum breaking load is 6 times the Working Load Limit (WLL)

Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A

Hot dipped galvanised steel shackle with a removable green pin, Safety Nut and Bolt Pin

Working temperature range from -20 °C up to +200 °C.

DNV Type Approved Shackle

Product Name F (mm) H (mm) E (mm) A (mm) I (mm) C (mm) B (mm) G (mm) D (mm) K (mm) J (mm) Item Weight (kgs) Price Qty
0.5 ton Safety Bow Shackle 29 54 12 7 43 17 8 20 7 4 37 0.06
Excl. VAT: £3.32 Incl. VAT: £3.98
0.75 ton Safety Bow Shackle 32 61 13.5 9 51 21 10 22 9 5 42 0.11
Excl. VAT: £3.39 Incl. VAT: £4.07
1 ton Safety Bow Shackle 36.5 71 17 10 61 23 11 26 10 8 49 0.16
Excl. VAT: £4.39 Incl. VAT: £5.27
1.5ton Safety Bow Shackle 43 80 19 11 68 26 13 29 11 11 54 0.22
Excl. VAT: £4.79 Incl. VAT: £5.75
2ton Safety Bow Shackle 51 91 22 13.5 83 34 16 32 13.5 13 63 0.42
Excl. VAT: £5.49 Incl. VAT: £6.59
3.25ton Safety Bow Shackle 64 114 27 16 99 40 19 43 16 17 79 0.74
Excl. VAT: £8.49 Incl. VAT: £10.19
4.75ton Safety Bow Shackle 76 136 31 19 115 47 22 51 19 20 94 1.18
Excl. VAT: £9.99 Incl. VAT: £11.99
6.5ton Safety Bow Shackle 83 157 36 22 131 53 25 58 22 23 107 1.77
Excl. VAT: £13.99 Incl. VAT: £16.79
8.5ton Safety Bow Shackle 95 176 43 25 151 60 28 68 25 25 124 2.58
Excl. VAT: £18.99 Incl. VAT: £22.79
9.5ton Safety Bow Shackle 108 197 47 28 167 67 32 75 28 28 137 3.66
Excl. VAT: £29.99 Incl. VAT: £35.99
12ton Safety Bow Shackle 115 218 51 32 179 74 35 83 32 31 154 4.91
Excl. VAT: £34.99 Incl. VAT: £41.99
