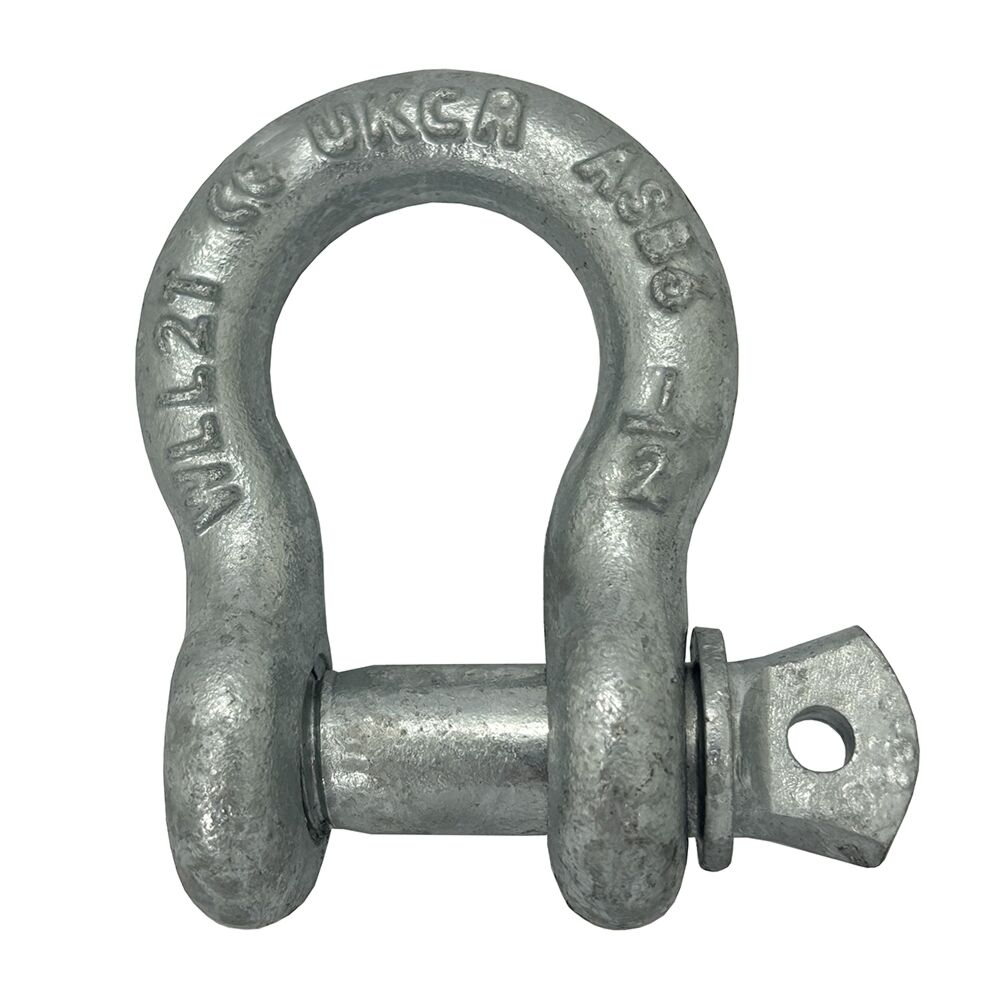

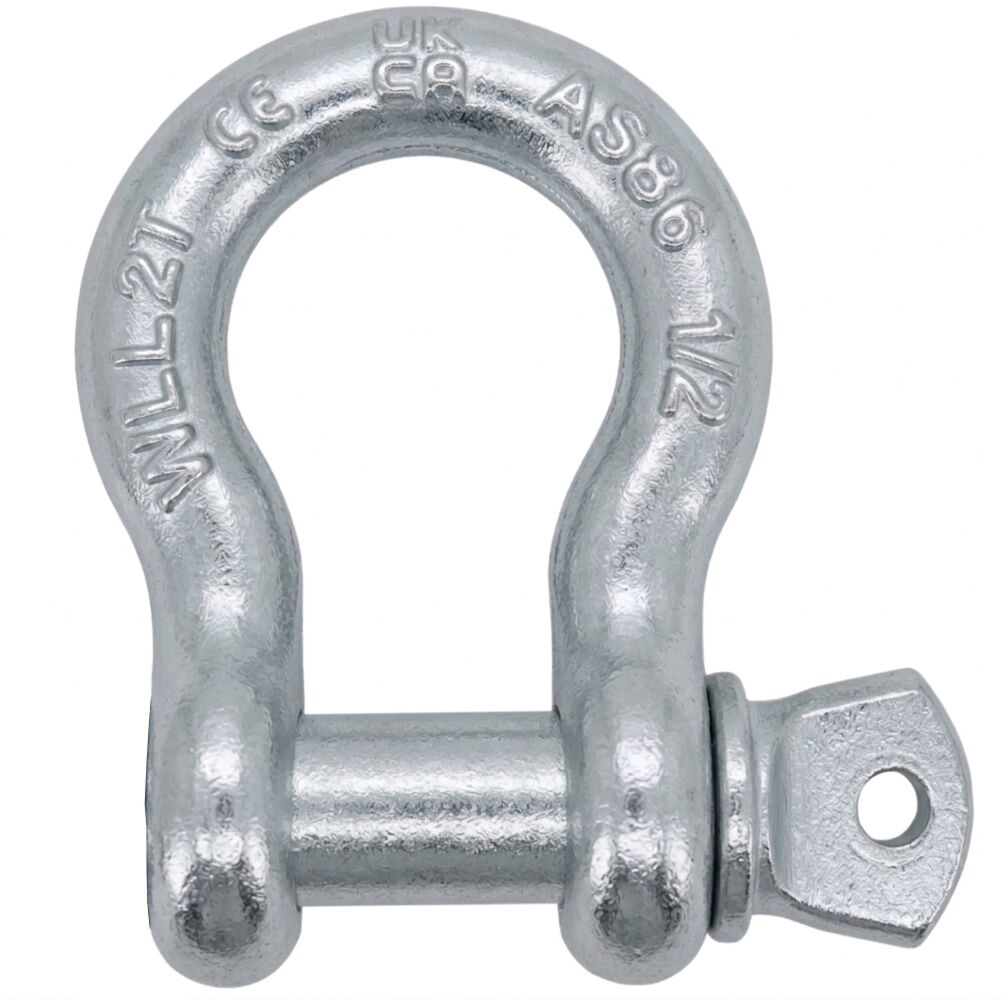

Galvanised Steel US Federal RR-C-271 Bow Shackles

These bow shackles meet US Federal RR-C-271 Specification and feature a screw pin.

They are drop forged galvanised for ultimate strength and durability. Tough and corrosion resistant, they are ideal for outdoor and maritime use.

The working load limit is forged onto the shackle body for guidance on safe use.

A range of sizes are available, in the following diameters: 6mm, 8mm, 10mm, 11mm, 12mm, 16mm, 18mm, and 22mm shackles available.

In stock

Grouped product items
Product Name	d (inches)	D (inches)	S (inches)	W (inches)	R (inches)	SWL Tonnes	PRICE
6mm 0.50ton US Fed Bow Shackle	1/4"	5/16"	1-1/8"	15/32"	3/4"	0.50	£1.03 £0.86
8mm 0.75ton US Fed Bow Shackle	5/16"	3/8"	1-1/4"	17/32"	13/16"	0.75	£1.37 £1.14
10mm 1.00ton US Fed Bow Shackle	3/8"	7/16"	1-7/16"	21/32"	15/16"	1.00	£1.75 £1.46
11mm 1.50ton US Fed Bow Shackle	7/16"	1/2"	1-11/16"	23/32"	1-1/16"	1.50	£2.21 £1.84
12mm 2.00ton US Fed Bow Shackle	1/2"	5/8"	1-7/8"	13/16"	1-3/16"	2.00	£2.83 £2.36
16mm 3.25ton US Fed Bow Shackle	5/8"	3/4"	2-13/32"	1-1/16"	1-1/2"	3.25	£4.44 £3.70
18mm 4.75ton US Fed Bow Shackle	3/4"	7/8"	2-27/32"	1-1/4"	1-3/4"	4.75	£8.52 £7.10
22mm 6.50ton US Fed Bow Shackle	7/8"	1"	3-5/16"	1-7/16"	2"	6.50	£10.54 £8.78
25mm 8.50ton US Fed Bow Shackle	1"	1-1/8"	3-3/4"	1-11/16"	2-5/16"	8.50	£15.29 £12.74
28mm 9.50ton US Fed Bow Shackle	1-1/8"	1-1/4"	4-1/4"	1-13/16"	2-5/8"	9.50	£21.67 £18.06
30mm 12ton US Fed Bow Shackle	1-1/4"	1-3/8"	4-11/16"	2-1/32"	2-7/8"	12.00	£29.04 £24.20
