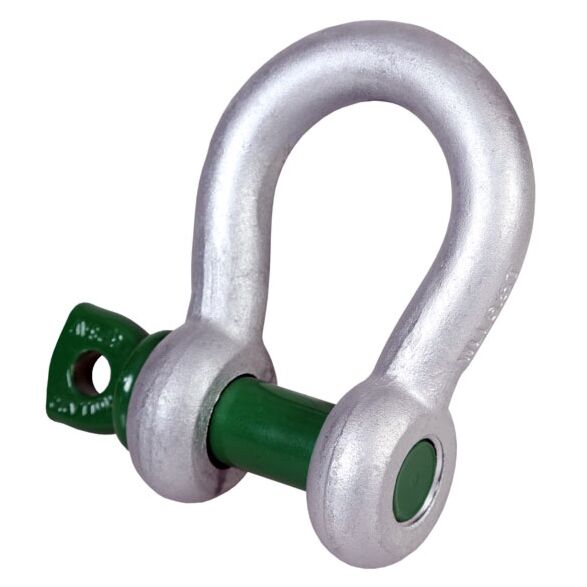

Galvanised Steel Green Screw Collar Pin Bow Shackle

More Views

Galvanised Steel Green Screw Collar Pin Bow Shackle
Show Price without VAT

Availability: In stock

Grade 6 high tensile steel, quenched and tempered lifting VAN BEEST - GREEN PIN branded Bow shackle

Minimum breaking load is 6 times the Working Load Limit (WLL)

Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A

Hot dipped galvanised steel shackle with a removable green pin

Working temperature range from -20 °C up to +200 °C.

DNV Type Approved Shackle

Product Name A (mm) H (mm) F (mm) E (mm) B (mm) I (mm) C (mm) G (mm) J (mm) D (mm) Item Weight (kgs) Price Qty
0.33 tonnes Green Screw Pin Shackle 5 41 22 9.5 6 31 12.5 16 28 5 0.02
Excl. VAT: £2.24 Incl. VAT: £2.69
0.5 tonnes Green Screw Pin Shackle 7 54 29 12 8 37 17 20 37 7 0.05
Excl. VAT: £2.47 Incl. VAT: £2.96
0.75 tonnes Green Screw Pin Shackle 9 61 32 13.5 10 49 21 22 42 9 0.1
Excl. VAT: £2.54 Incl. VAT: £3.05
1 tonnes Green Screw Pin Shackle 10 71 36.5 17 11 56 23 26 49 10 0.14
Excl. VAT: £2.99 Incl. VAT: £3.59
1.5 tonnes Green Screw Pin Shackle 11 80 43 19 13 68 26 29 54 11 0.19
Excl. VAT: £3.49 Incl. VAT: £4.19
2 tonnes Green Screw Pin Shackle 13.5 91 51 22 16 76 34 32 63 13.5 0.36
Excl. VAT: £3.99 Incl. VAT: £4.79
3.25 tonnes Green Screw Pin Shackle 16 114 64 27 19 93 40 43 79 16 0.63
Excl. VAT: £5.99 Incl. VAT: £7.19
4.75 tonnes Green Screw Pin Shackle 19 136 76 31 22 107 47 51 94 19 1.01
Excl. VAT: £7.99 Incl. VAT: £9.59
6.5 tonnes Green Screw Pin Shackle 22 157 83 36 25 123 53 58 107 22 1.5
Excl. VAT: £9.99 Incl. VAT: £11.99
8.5 tonnes Green Screw Pin Shackle 25 176 95 43 28 141 60 68 124 25 2.21
Excl. VAT: £11.99 Incl. VAT: £14.39
9.5 tonnes Green Screw Pin Shackle 28 197 108 47 32 158 67 75 137 28 3.16
Excl. VAT: £17.99 Incl. VAT: £21.59
12 tonnes Green Screw Pin Shackle 32 218 115 51 35 176 74 83 154 32 4.31
Excl. VAT: £22.99 Incl. VAT: £27.59
Questions & Answers
Expand all
Sort by
Most Recent Questions
Q:
Hi, what size do I need to join 10mm galvanised anchor chain ( din 766)

Thanks, I ha e been using Titan 7/16 in the past.
