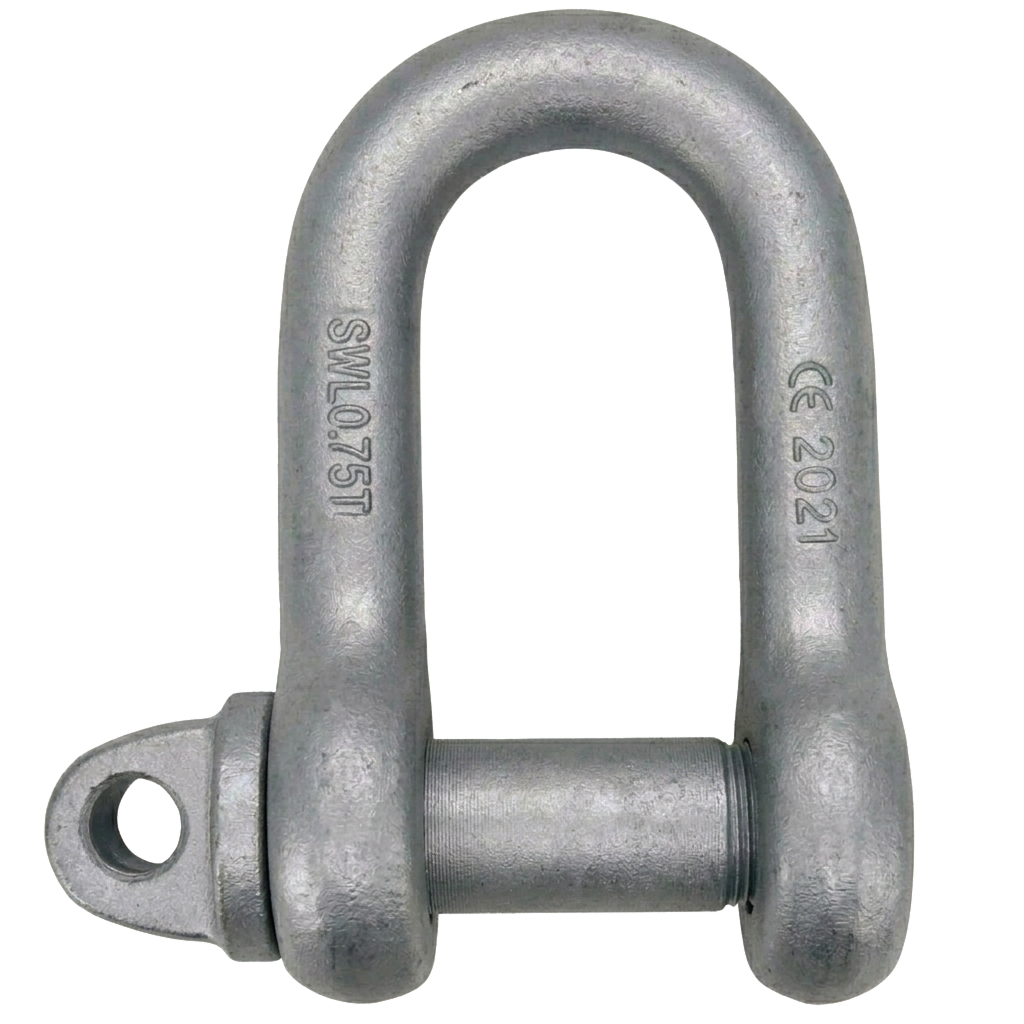

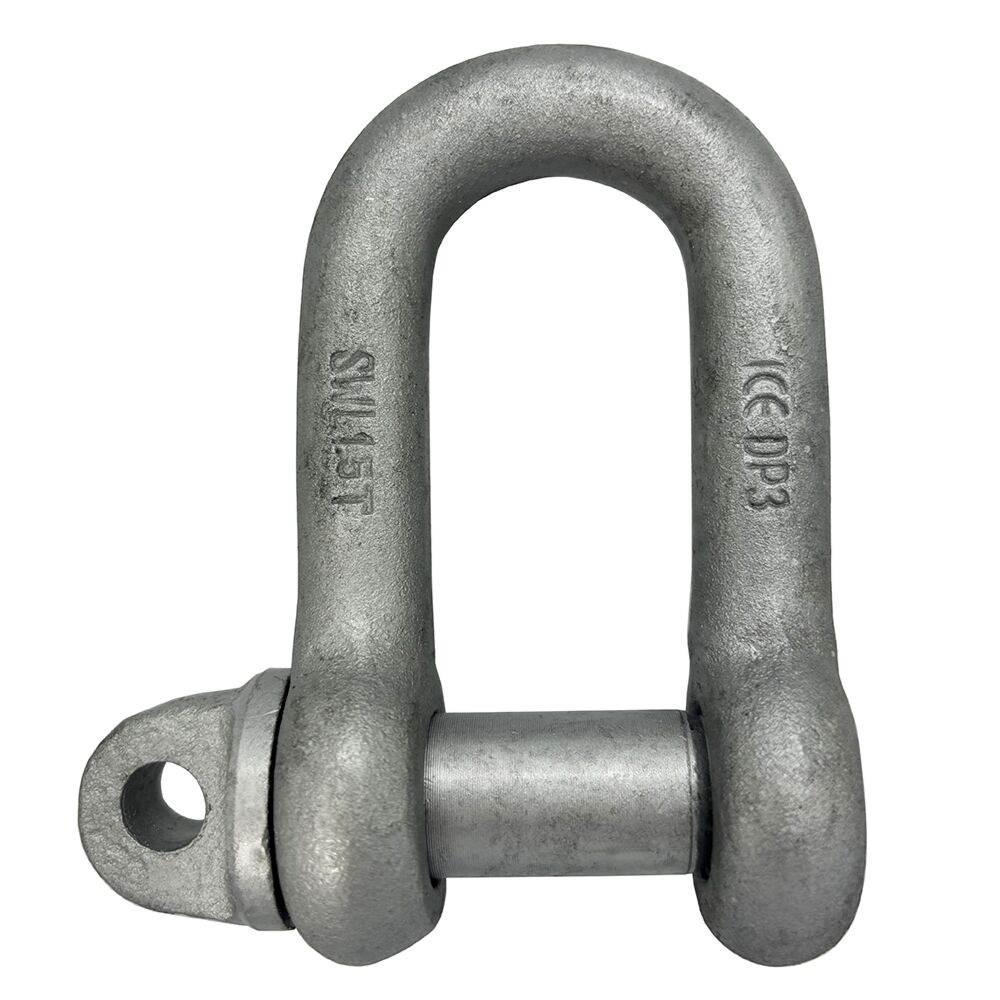

Galvanised Large D Shackles BS 3032 - WLL Rated

GS Products offer hot dipped galvanised large D shackles made to British standard 3032 specification.

This heavy duty drop forged shackle is suitable for lifting and is made from high tensile C1045 steel.

The shackle pin is totally removable for non-permanent shackle use.

Each shackle is CE marked and comes with a batch number and the SWL stamped into the shackle body for full traceability.

0.50 - 5.00 tonnes Safe Working Loads available. Supplied with statement of conformity certificate.

In stock
Grouped product items
Product Name d (inches) D (inches) S (inches) W (inches) SWL Tonnes E (inches) PRICE Qty
3/8" Shackle 3/8" 1/2" 1-1/2" 3/4" 0.50 1"
£3.05 £2.54
1/2" Shackle 1/2" 5/8" 2-1/8" 1-1/8" 0.75 1-1/4"
£3.86 £3.22
5/8" Shackle 5/8" 3/4" 2-1/2" 1-1/4" 1.50 1-1/2"
£6.14 £5.12
3/4" Shackle 3/4" 7/8" 2-7/8" 1-1/2" 2.00 1-3/4"
£10.42 £8.68
7/8" Shackle 7/8" 1" 3-1/4" 1-3/4" 3.00 2"
£7.19 £5.99
1" Shackle 1" 1-1/8" 3-3/4" 2" 3.75 2-1/4"
£17.66 £14.72
1-1/8" Shackle 1-1/8" 1-1/4" 4-1/8" 2-1/8" 5.00 2-1/2"
£28.01 £23.34
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet
