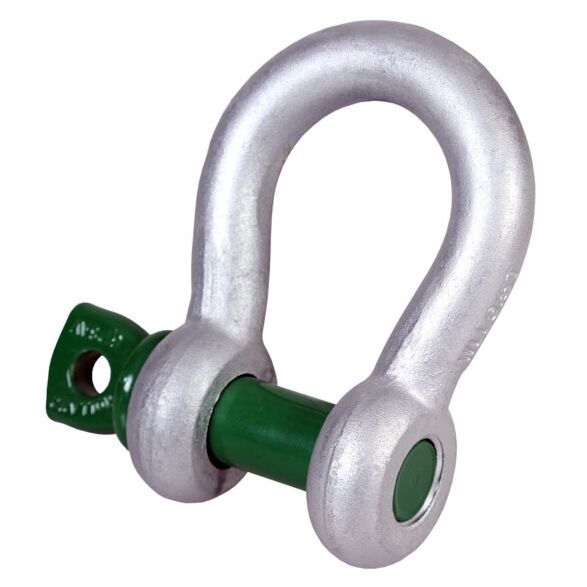

6.50 tonnes WLL VAN BEEST Green Pin Bow Shackle - Screw Pin - BS EN 13889
In stock
SKU: A0109
| a | 22mm |
| b | 25mm |
| c | 53mm |
| d | 22mm |
| e | 36mm |
| f | 83mm |
| g | 58mm |
| h | 157mm |
| i | 123mm |
| j | 107mm |
| Working Load Limit | 6.50 tonnes (6:1 safety factor) |
| Weight | 1.5kgs |
- VAN BEEST Green Pin bow shackle with a screwed collared pin.
- 6:1 safety factor (the breaking load limit is 6x the Working Load Limit).
- Suitable for lifting applications.
- Hot dipped galvanised.
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Temperature range from -40° up to 200°.
- Conforms to BS EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 type IVA class 2, grade A.
£24.24
£20.20
