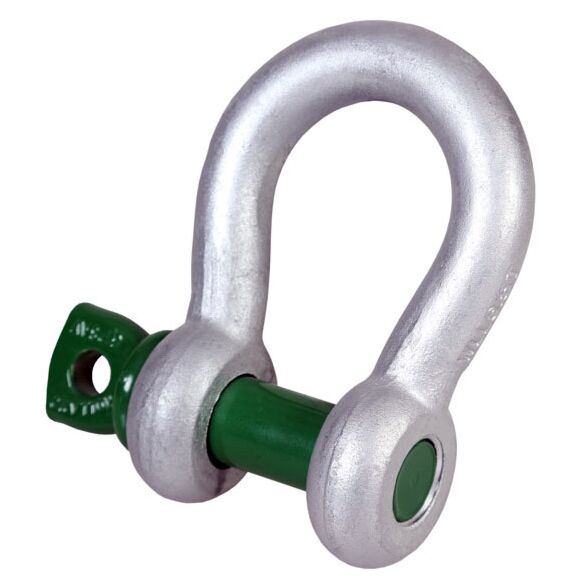

0.33 tonnes WLL VAN BEEST Green Pin Bow Shackle - Screw Pin - BS EN 13889
In stock
SKU: A0101
| a | 5mm |
| b | 6mm |
| c | 12.5mm |
| d | 5mm |
| e | 9.5mm |
| f | 22mm |
| g | 16mm |
| h | 41mm |
| i | 31mm |
| j | 28mm |
| Working Load Limit | 0.33 tonnes (6:1 safety factor) |
| Weight | 0.02kgs |
- VAN BEEST Green Pin bow shackle with a screwed collared pin.
- 6:1 safety factor (the breaking load limit is 6x the Working Load Limit).
- Suitable for lifting applications.
- Hot dipped galvanised.
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Temperature range from -40° up to 200°.
- Conforms to BS EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 type IVA class 2, grade A.
£5.83
£4.86
