1.00 tonnes WLL VAN BEEST Green Pin Bow Shackle – Safety Pin Nut and Bolt - BS EN 13889
In stock
SKU: A0304
| a | 10mm |
| b | 11mm |
| c | 23mm |
| d | 10mm |
| e | 17mm |
| f | 36.5mm |
| g | 26mm |
| h | 71mm |
| i | 61mm |
| j | 49mm |
| k | 8mm |
| Working Load Limit | *** tonnes (6:1 safety factor) |
| Weight | 0.16kgs |

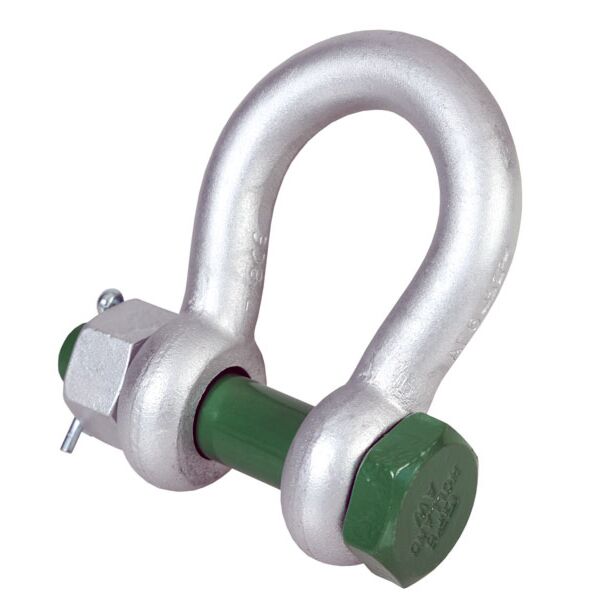

- VAN BEEST Green Pin bow shackle with a nut and bolt safety pin.
- 6:1 safety factor (the breaking load limit is 6x the Working Load Limit).
- Suitable for lifting applications.
- Hot dipped galvanised.
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Temperature range from -40° up to 200°.
- Conforms to BS EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 type IVA class 2, grade A.
£10.79
£8.99
