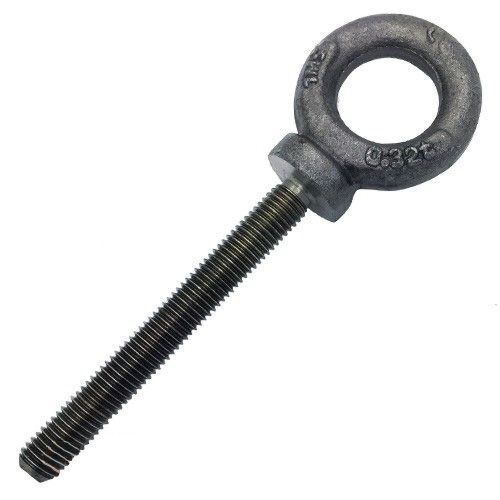

Self Colour Long Shank Dynamo Eye Bolts

Place your order for our reliable self colour, long shank steel dynamo eye bolts.

These metric coarse, long shank, right hand thread eye bolts come in a range of sizes: 8mm, 10mm, 12mm, 16mm and 20mm.

Each of our long shank eye bolts have been hardened and tempered and have a safe working load shown at 0 degree (vertical) angle of lift.

In stock
Add to Wish List Add to Compare
main product photo
Grouped product items
Product Name A (mm) B (mm) C (mm) D (mm) E (mm) G (mm) SWL (Kgs) PRICE Qty
8mm Eye Bolt M8 22 10 26 102 19 150
£2.03 £1.69
  • Buy 50 for £1.99 £1.66 each
  • Buy 100 for £1.91 £1.59 each
10mm Eye Bolt M10 22 10 26 102 19 230
£2.18 £1.82
  • Buy 50 for £2.14 £1.78 each
  • Buy 100 for £2.06 £1.72 each
12mm Eye Bolt M12 26 11 35 102 25 320
£2.50 £2.08
  • Buy 50 for £2.39 £1.99 each
  • Buy 100 for £2.30 £1.92 each
16mm Eye Bolt M16 32 13 41 114 28 630
£4.58 £3.82
  • Buy 50 for £4.52 £3.77 each
  • Buy 100 for £4.34 £3.62 each
20mm Eye Bolt M20 40 17 54 127 36 1250
£6.83 £5.69
  • Buy 50 for £6.50 £5.42 each
  • Buy 100 for £6.14 £5.12 each
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet

Long Shank Dynamo Lifting Eye Bolt Key Features

✔ Self colour (non-plated) finish

✔ Standard longer metric thread than a standard dynamo eye bolt

✔ Meets the performance requirements of BS 4278

✔ 5:1 factor of safety (minimum breaking load is 5x the Working Load Limit)

✔ CE, batch number and SWL clearly marked on hook for full traceability

❌ Never exceed the eye bolts SWL

❌ Stated SWL is for vertical lifts only
