Stainless Steel Lifting Eye Bolts - DIN 580

Stainless Steel Lifting Eye Bolts - DIN 580

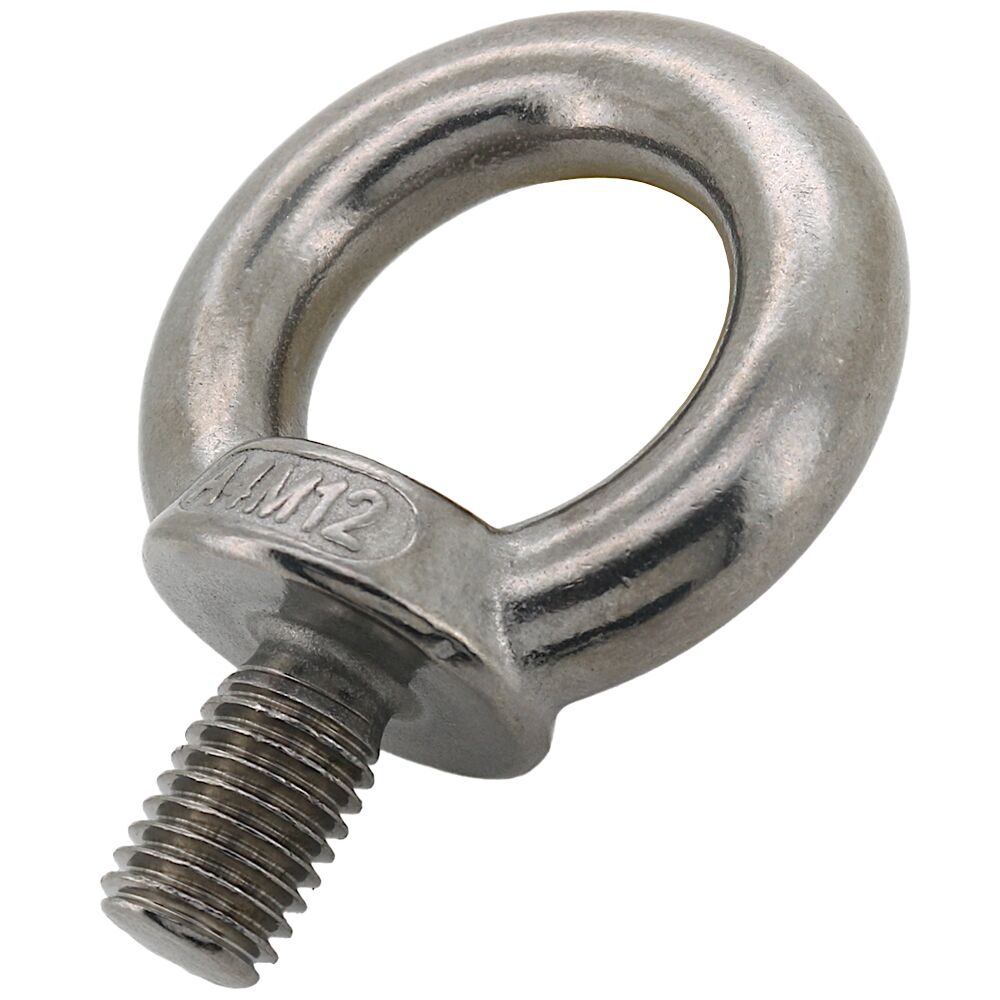

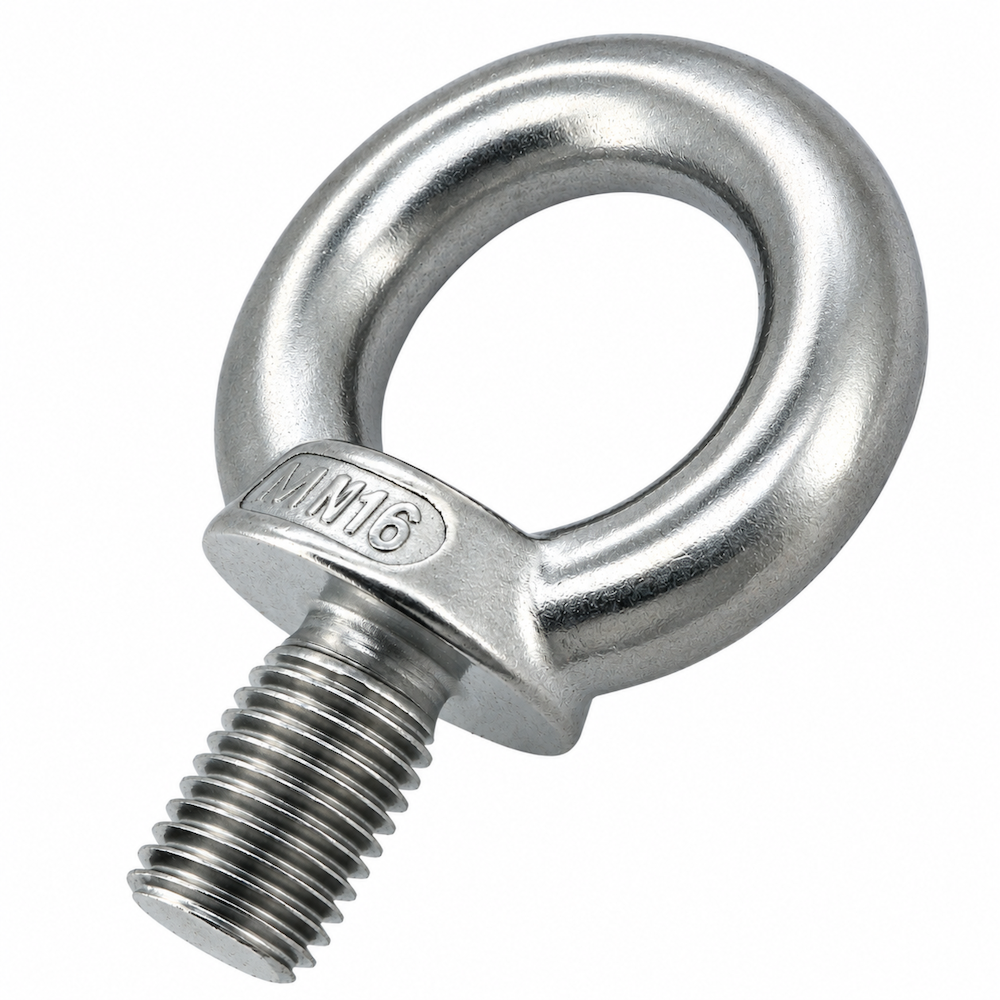

Stainless Steel DIN 580 Lifting Eye Bolts

More Views

Stainless Steel Lifting Eye Bolts - DIN 580

Show Price without VAT

Availability: In stock

We stock an extensive range of Lifting Eye Bolts, all finished in AISI 316 A4 Marine Grade Stainless Steel DIN580. Our metric coarse right hand thread eye bolts are available in a wide range of sizes, listed below, from 5mm right up to the larger 20mm.

Available in M5, M6, M8, M10, M12, M16, and M20.

They are most commonly used to attach ropes or cables to a fixed structure, threaded on one end for a more secure fit. Marine grade, they are grade, tough, durable and corrosion resistant, ideal for maritime use or for a variety of applications such as construction.

Product Name	D1 (mm)	D3 (mm)	D2 (mm)	E (mm)	H (mm)	B (mm)	D (mm)	WLL (kg)	K (mm)	Item Weight (kgs)	Price
5mm Stainless Steel Eye Bolt DIN 580	15	15	25	5	12	11	M5	40	5	0.04	Excl. VAT: £0.88 Incl. VAT: £1.06
6mm Stainless Steel Eye Bolt DIN 580	17	17	28	5	12	13	M6	70	6	0.04	Excl. VAT: £0.86 Incl. VAT: £1.03
8mm Stainless Steel Eye Bolt DIN 580	20	20	36	6	18	15	M8	140	8	0.08	Excl. VAT: £1.08 Incl. VAT: £1.30
10mm Stainless Steel Eye Bolt DIN 580	25	25	45	8	22	18	M10	230	10	0.11	Excl. VAT: £1.82 Incl. VAT: £2.18
12mm Stainless Steel Eye Bolt DIN 580	30	30	54	10	26	22	M12	340	12	0.18	Excl. VAT: £3.49 Incl. VAT: £4.19
16mm Stainless Steel Eye Bolt DIN 580	36	35	63	12	30	28	M16	700	16	0.28	Excl. VAT: £6.38 Incl. VAT: £7.66
20mm Stainless Steel Eye Bolt DIN 580	40	40	72	12	35	30	M20	1200	20	0.45	Excl. VAT: £8.99 Incl. VAT: £10.79
