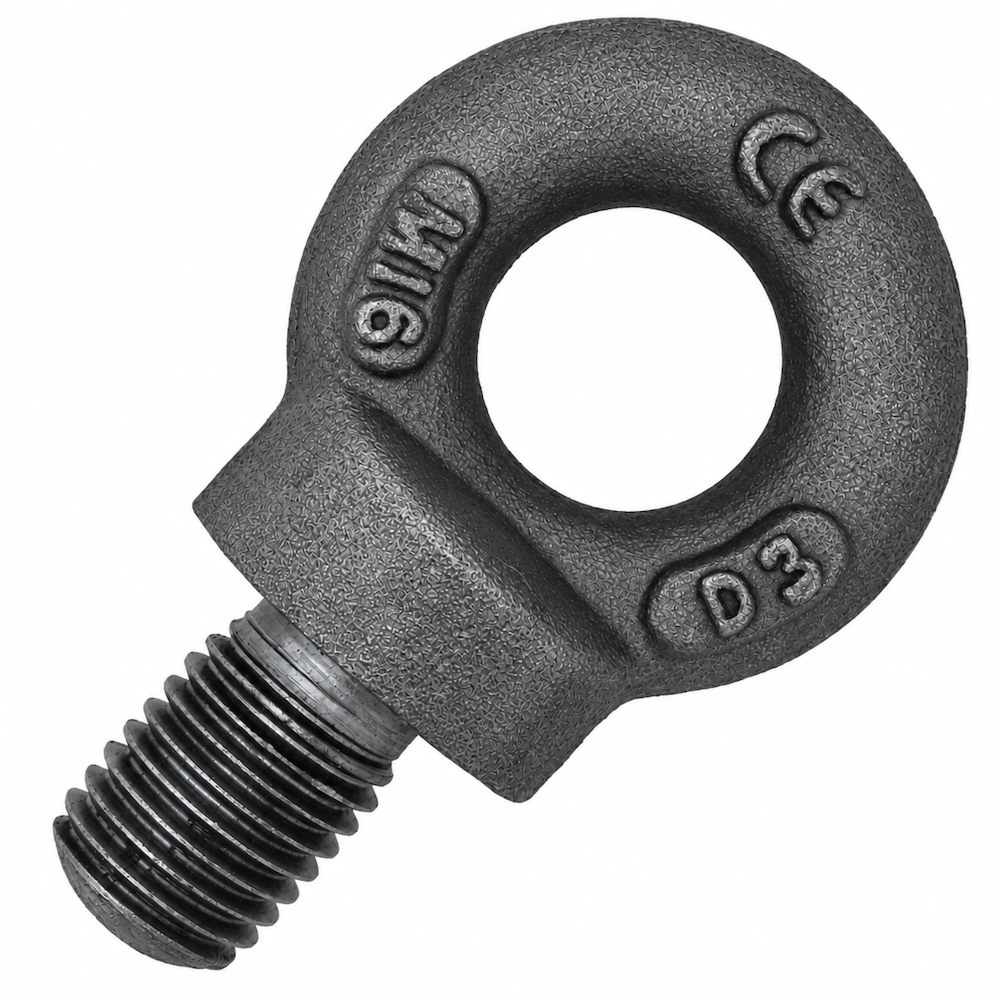

Self Colour Collared Lifting Eye Bolts BS 4278 - Forged - WLL Rated

Drop forged, high tensile steel, heat treated hardened lifting eye bolts . Our collared eye bolts are metric coarse right hand threaded and are available in a range of sizes.

They are available in: 10mm, 12mm ,16mm, 20mm, 24mm, and 30mm diameter sizes. The strength capacities of these lifting eye bolts ranges from 0.25 to 4 tonnes with diameters between 10mm and 30mm. These eye bolts meet the performance requirements of BS 4278 standards.

Each eye bolt is marked with SWL, ID markings, Size and CE for full traceability. Minimum breaking load is 5x the SWL.

SWL shown is for vertical lifts only. Comes supplied with statement of conformity certificate.

In stock
Grouped product items
Product Name A (mm) B (mm) H (mm) E (mm) F (mm) G (mm) SWL (Kgs) PRICE Qty
10mm Eye Bolt M10 22 18 15 9 20 250
£1.55 £1.29
  • Buy 50 for £1.49 £1.24 each and save 4%
  • Buy 100 for £1.43 £1.19 each and save 8%
12mm Eye Bolt M12 22 18 15 9 20 400
£1.66 £1.38
  • Buy 50 for £1.58 £1.32 each and save 4%
  • Buy 100 for £1.54 £1.28 each and save 7%
16mm Eye Bolt M16 29 23 20 12 26 800
£2.12 £1.77
  • Buy 50 for £1.97 £1.64 each and save 7%
  • Buy 100 for £1.84 £1.53 each and save 14%
20mm Eye Bolt M20 40 32 27 16 36 1600
£3.98 £3.32
  • Buy 50 for £3.84 £3.20 each and save 4%
  • Buy 100 for £3.70 £3.08 each and save 7%
24mm Eye Bolt M24 52 40 35 21 46 2500
£7.06 £5.88
  • Buy 50 for £6.78 £5.65 each and save 4%
  • Buy 100 for £6.38 £5.32 each and save 10%
30mm Eye Bolt M30 65 51 44 26 58 4000
£14.28 £11.90
  • Buy 50 for £13.68 £11.40 each and save 4%
  • Buy 100 for £12.96 £10.80 each and save 9%
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet

Collared Lifting Eye Bolt Key Features

✔ Supplied with statement of conformity certificate

✔ Self colour (non-plated) finish

✔ Standard metric thread

✔ Meets the performance requirements of BS 4278

✔ 5:1 factor of safety (minimum breaking load is 5x the Working Load Limit)

✔ CE, batch number and SWL clearly marked on hook for full traceability

❌ Never exceed the eye bolts SWL

❌ Stated SWL is for vertical lifts only
