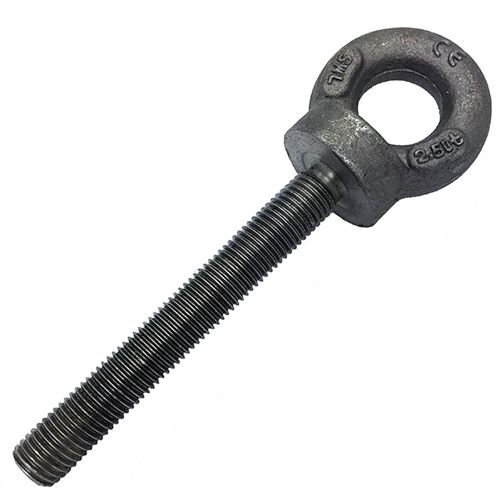

Self Colour Long Shank Collared Eye Bolts - Load Rated

  • GS Products offer metric coarse long shank collared eye bolts with a right hand thread.
  • These collared long shank lifting eye bolts are available in: M10, M12, M16, M20 and M24 sizes.
  • Drop forged, heat treated, high tensile steel collared eye bolt.
  • SWL shown is for vertical lifts only.
  • Minimum breaking load is 5x the SWL.
  • Marked with CE, SWL, ID and Diameter for full traceability.
  • Comes supplied with a statement of conformity certificate.
  • In stock
    Grouped product items
    Product Name A (mm) B (mm) H (mm) E (mm) F (mm) G (mm) SWL (Kgs) PRICE Qty
    10mm Eye Bolt M10 22 178 14 10 20 250
    £4.06 £3.38
    • Buy 100 for £3.94 £3.28 each
    • Buy 500 for £3.74 £3.12 each
    12mm Eye Bolt M12 28 178 19 11 25 400
    £4.79 £3.99
    • Buy 50 for £4.58 £3.82 each
    • Buy 100 for £4.43 £3.69 each
    16mm Eye Bolt M16 36 178 24 14 32 800
    £5.99 £4.99
    • Buy 50 for £5.62 £4.68 each
    • Buy 100 for £5.33 £4.44 each
    20mm Eye Bolt M20 43 178 28 17 38 1600
    £8.39 £6.99
    • Buy 50 for £7.70 £6.42 each
    • Buy 100 for £7.19 £5.99 each
    24mm Eye Bolt M24 57 178 38 22 51 2500
    £11.99 £9.99
    • Buy 50 for £11.63 £9.69 each
    • Buy 100 for £11.18 £9.32 each
    Show Price without VAT
    Download Product Data Sheet Download Product Data Sheet

    Long Shank Collared Lifting Eye Bolt Key Features

    ✔ Supplied with statement of conformity certificate

    ✔ Self colour (non-plated) finish

    ✔ Standard longer metric thread than a standard collared eye bolt

    ✔ Meets the performance requirements of BS 4278

    ✔ 5:1 factor of safety (minimum breaking load is 5x the Working Load Limit)

    ✔ CE, batch number and SWL clearly marked on hook for full traceability

    ❌ Never exceed the eye bolts SWL

    ❌ Stated SWL is for vertical lifts only
