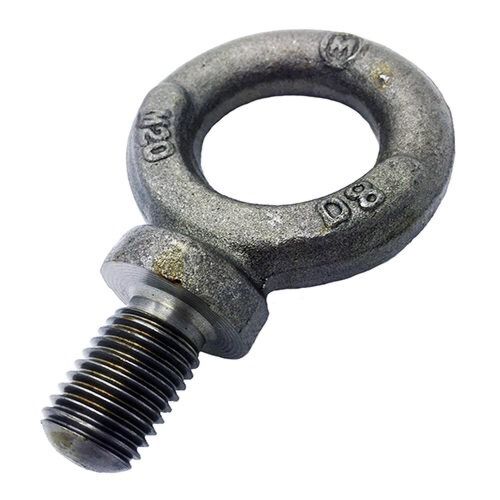

Self Colour Dynamo Eye Bolts - Load Rated

GS Products offer a range of steel dynamo eye bolts for lifting applications. They have been drop forged, heat treated and made from high tensile steel.

These metric coarse right hand threaded dynamo eye bolts are available in a variety of axial load capacities ranging between 100kg and 2000kg load in a wide range of sizes. The minimum breaking load is 5x the SWL

Thread sizes available include: M6, M8, M10, M12, M16, M20, and M24.

All our dynamo eye bolts come with safe working load (SWL) specifications clearly forged on each eye bolt, along with CE and ID markings for full traceability.

Please note that the SWL stated is for vertical lifts only. Supplied with a statement of conformity certificate.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	A (mm)	B (mm)	H (mm)	E (mm)	F (mm)	G (mm)	SWL (Kgs)	PRICE
6mm Eye Bolt	M6	17	18	22	9	27	100	£1.43 £1.19
Bulk discounts available... Buy 50 for £1.40 £1.17 each Buy 100 for £1.33 £1.11 each
8mm Eye Bolt	M8	17	18	22	9	27	150	£1.37 £1.14
Bulk discounts available... Buy 50 for £1.31 £1.09 each Buy 100 for £1.27 £1.06 each
10mm Eye Bolt	M10	17	18	22	9	27	230	£1.99 £1.66
Bulk discounts available... Buy 50 for £1.94 £1.62 each Buy 100 for £1.90 £1.58 each
12mm Eye Bolt	M12	17	18	22	9	27	320	£2.18 £1.82
Bulk discounts available... Buy 50 for £2.14 £1.78 each Buy 100 for £2.06 £1.72 each
16mm Eye Bolt	M16	23	23	29	11	34	630	£2.39 £1.99
Bulk discounts available... Buy 50 for £2.30 £1.92 each Buy 100 for £2.21 £1.84 each
20mm Eye Bolt	M20	32	32	40	15	47	1250	£3.59 £2.99
Bulk discounts available... Buy 50 for £3.38 £2.82 each Buy 100 for £3.23 £2.69 each
24mm Eye Bolt	M24	40	40	51	19	60	2000	£7.19 £5.99
Bulk discounts available... Buy 50 for £6.98 £5.82 each Buy 100 for £6.59 £5.49 each
