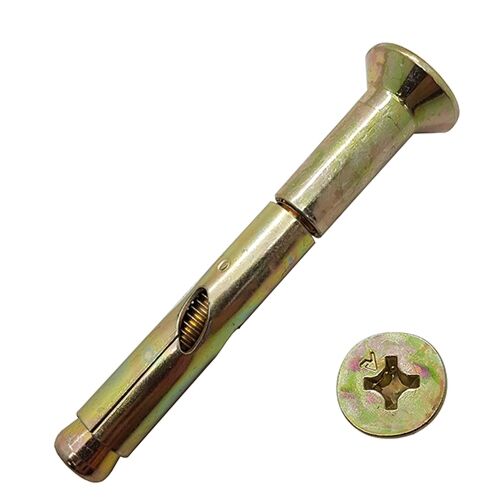

Zinc Plated Countersunk Sleeve Anchor

More Views

Zinc Plated Countersunk Sleeve Anchor
Show Price without VAT

Availability: In stock

A zinc plated and yellow passivated, thin walled sleeve anchor. Suitable for use in non-cracked concrete, dense concrete blocks, solid bricks and some natural stone.

Perfect for fixing light to medium duty loads

Torque controlled expansion collapse feature to allow a positive clamping force, Phillips Head Drive 3 required to tighten

Supplied pre-assembled for rapid installation

8mm and 10mm diameters available

Product Name Drill Hole Diameter (mm) Head Diameter (mm) Drill Hole Depth (mm) Overall Anchor Length (mm) Maximum Fixture Thickness (mm) Price Qty
8mm x 60mm Sleeve Anchor 8 14 40 65 30
Excl. VAT: £0.18 Incl. VAT: £0.22
8mm x 85mm Sleeve Anchor 8 14 45 88 53
Excl. VAT: £0.20 Incl. VAT: £0.24
10mm x 75mm Sleeve Anchor 10 16 40 78 38
Excl. VAT: £0.28 Incl. VAT: £0.34
