BZP Steel Projecting Bolts with Sleeve Fixing Anchor

More Views

BZP Steel Projecting Bolts with Sleeve Fixing Anchor
Show Price without VAT

Availability: In stock

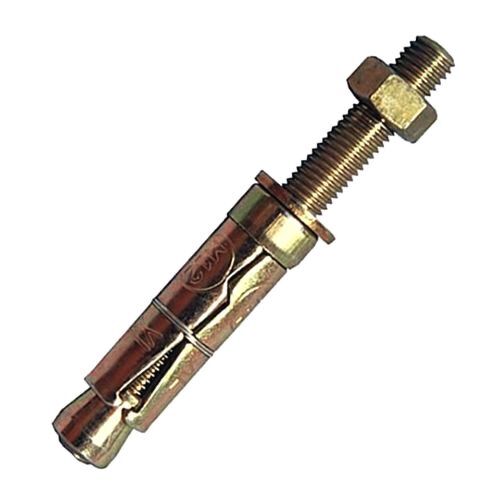

A zinc plated, yellow passivated, torque controlled projecting bolt with a fixing sleeve anchor

Suitable for use in non-cracked concrete, dense concrete blocks, solid bricks and some natural stone

Available in M6 M8 M10 M12 and M16 diameters with varying length bolts

High Tensile 8.8 Grade Steel - comes with loose nut and washer

See charts below for perfomance data

Product Name Thread Diam (mm) Overall Length (mm) Max Fixture Clearance (mm) Drill Hole Diameter (mm) Embedment Depth (mm) Drill Hole Depth (mm) Installation Torque (Nm) Price Qty
M6 x 10mm ZP Steel Projecting Bolt 6 60 10 12 45 50 6
Excl. VAT: £0.23 Incl. VAT: £0.28
M6 x 25mm ZP Steel Projecting Bolt 6 75 25 12 45 50 6
Excl. VAT: £0.26 Incl. VAT: £0.31
M6 x 50mm ZP Steel Projecting Bolt 6 100 50 12 45 50 6
Excl. VAT: £0.29 Incl. VAT: £0.35
M8 x 15mm ZP Steel Projecting Bolt 8 75 15 14 50 55 14
Excl. VAT: £0.35 Incl. VAT: £0.42
M8 x 40mm ZP Steel Projecting Bolt 8 100 40 14 50 55 14
Excl. VAT: £0.38 Incl. VAT: £0.46
M8 x 80mm ZP Steel Projecting Bolt 8 140 80 14 50 55 14
Excl. VAT: £0.38 Incl. VAT: £0.46
M10 x 10mm ZP Steel Projecting Bolt 10 80 10 16 60 65 27
Excl. VAT: £0.48 Incl. VAT: £0.58
M10 x 30mm ZP Steel Projecting Bolt 10 100 30 16 60 65 27
Excl. VAT: £0.54 Incl. VAT: £0.65
M10 x 50mm ZP Steel Projecting Bolt 10 120 50 16 60 65 27
Excl. VAT: £0.58 Incl. VAT: £0.70
M10 x 70mm ZP Steel Projecting Bolt 10 140 70 16 60 65 27
Excl. VAT: £0.66 Incl. VAT: £0.79
M12 x 15mm ZP Steel Projecting Bolt 12 100 15 20 75 85 46
Excl. VAT: £0.78 Incl. VAT: £0.94
M12 x 25mm ZP Steel Projecting Bolt 12 110 25 20 75 85 46
Excl. VAT: £0.89 Incl. VAT: £1.07
M12 x 50mm ZP Steel Projecting Bolt 12 135 50 20 75 85 46
Excl. VAT: £0.94 Incl. VAT: £1.13
M12 x 70mm ZP Steel Projecting Bolt 12 155 70 20 75 85 46
Excl. VAT: £0.98 Incl. VAT: £1.18
M16 x 35mm ZP Steel Projecting Bolt 16 160 35 25 110 125 110
Excl. VAT: £1.66 Incl. VAT: £1.99
