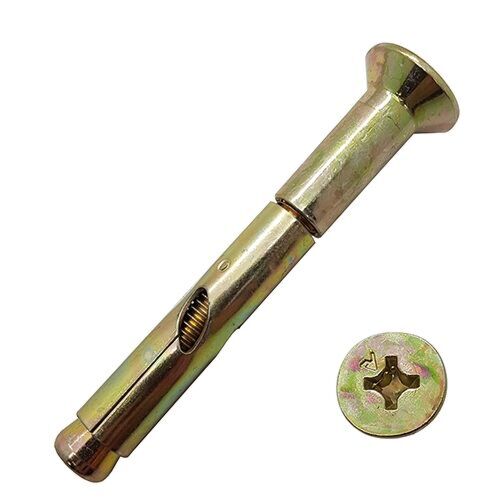

8mm x 85mm Zinc Plated Countersunk Sleeve Anchor

More Views

8mm x 85mm Zinc Plated Countersunk Sleeve Anchor
Excl. VAT: £0.20 Incl. VAT: £0.24
Show Price without VAT

Availability: In stock

SKU: SLC08085
Drill Diameter 8mm
Overall Anchor Length 88mm
Head Diameter 14mm
Maximum Fixture Thickness 53mm
Fixture Clearance Hole 10mm
Embedment Depth 35mm
Minimum Drill Hole Depth 40mm
Phillips Head Drive No3
Minimum Structure Thickness 100mm
Installation Torque 10Nm

  • Zinc plated steel
  • Countersunk sleeve anchor
  • Torque controlled expansion/collapse feature to create a positive clamping force
  • Pre assembled for rapid installation
