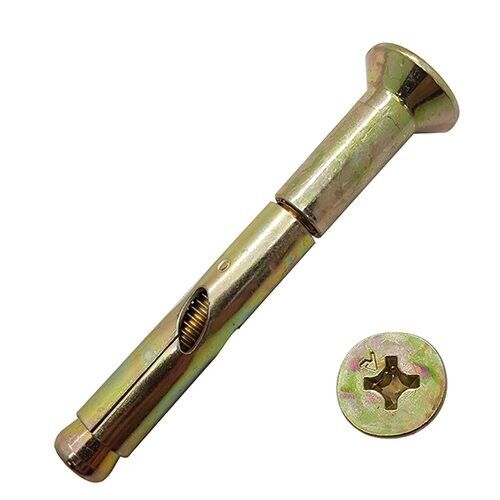

10mm x 75mm Zinc Plated Countersunk Sleeve Anchor

More Views

10mm x 75mm Zinc Plated Countersunk Sleeve Anchor
Excl. VAT: £0.28 Incl. VAT: £0.34
Show Price without VAT

Availability: In stock

SKU: SLC10075
Drill Diameter 10mm
Overall Anchor Length 78mm
Head Diameter 16mm
Maximum Fixture Thickness 38mm
Fixture Clearance Hole 12mm
Embedment Depth 40mm
Minimum Drill Hole Depth 45mm
Phillips Head Drive No3
Minimum Structure Thickness 100mm
Installation Torque 20Nm

  • Zinc plated steel
  • Countersunk sleeve anchor
  • Torque controlled expansion/collapse feature to create a positive clamping force
  • Pre assembled for rapid installation
