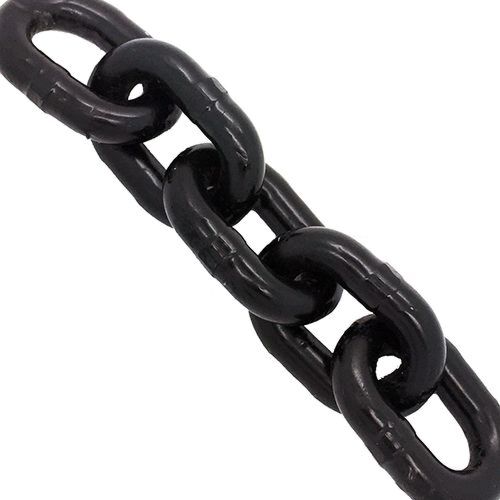

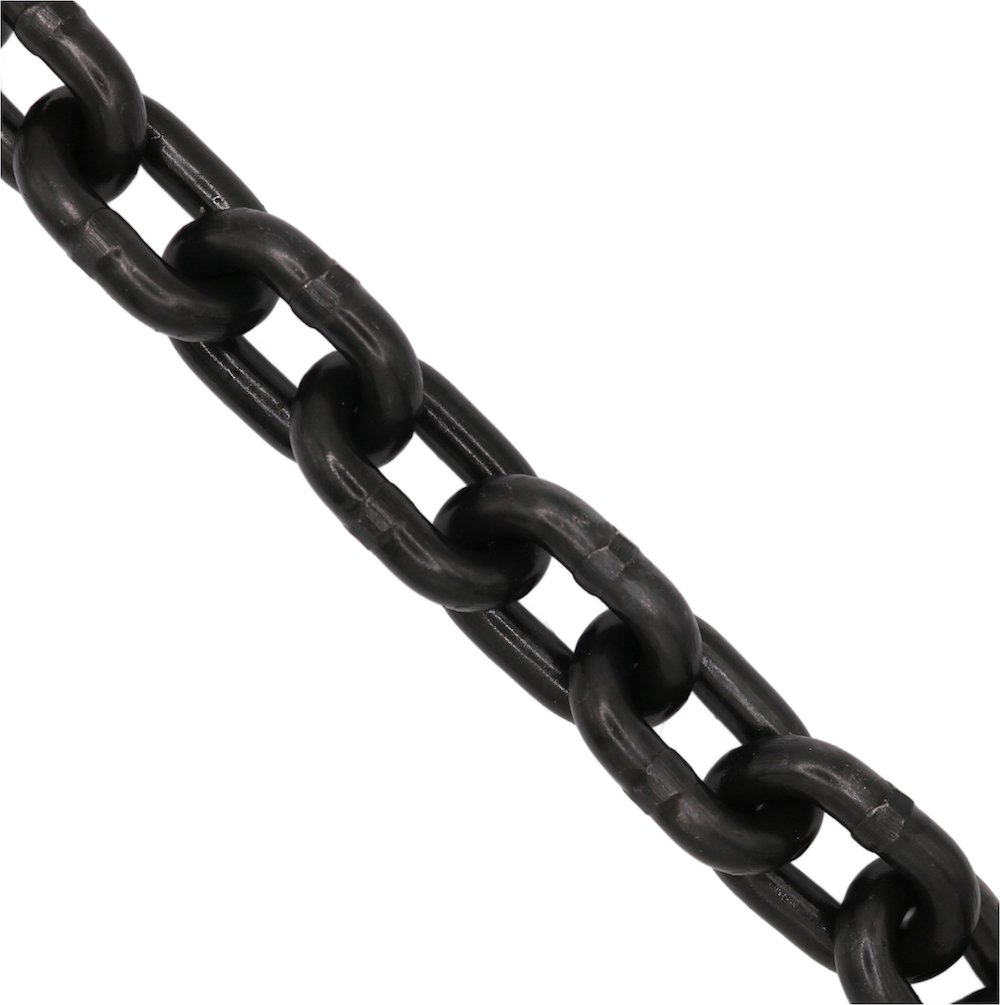

Grade 80 Short Link Alloy Steel Lifting Chain BS EN818-2 - WLL Rated

This short link alloy steel chain is approved for lifting and is rated to BS EN 818-2 standards.

Cataphoresis coated with varnished finish - comes slightly lubricated.

Made from super alloy G8 steel, this lifting chain comes with a 4:1 safety factor (the breaking load is 4x the W.L.L) and has G80 markings at every 1 meter intervals.

Our Grade 80 chain can be used within a temperature range of -40°C up to 200°C without reduction in the stated working load limit.

6mm, 7mm, 8mm, 10mm, 13mm and 16mm diameters grade 80 short link chain is available to buy.

Our lifting chains are sold per meter. Simply add your required meterage into the quantity box and we will send your lifting chain in one continuous length.

In stock
Grouped product items
Product Name H (mm) D (mm) E (mm) Weight/Metre (kgs) WLL (kg) PRICE Qty
6mm Grade 80 Lifting Chain - Per Metre 8 6 18 0.95 1120
£4.46 £3.72
7mm Grade 80 Lifting Chain - Per Metre 9 7 21 1.1 1500
£4.99 £4.16
8mm Grade 80 Lifting Chain - Per Metre 10.5 8 24 1.4 2000
£5.38 £4.48
10mm Grade 80 Lifting Chain - Per Metre 14 10 30 2.2 3150
£7.06 £5.88
13mm Grade 80 Lifting Chain - Per Metre 18 13 39 3.8 5300
£11.99 £9.99
16mm Grade 80 Lifting Chain - Per Metre 22 16 48 5.6 8000
£19.44 £16.20
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet

Grade 80 Lifting Chain Technical Specifications

  • Conforms to BS EN 818-2
  • Cataphoresis coated with a varnished finish - comes slightly lubricated
  • Super Alloy Grade 8 Steel
  • Temperature range -40°C up to +200°C
  • Fatigue rated x 1.5 Working Load Limit
  • Proof tested - 2.5 times Working Load Limit
  • Safety Factor 4:1 (the breaking load is 4x the W.L.L)
  • UK stockists
  • Supplied with statement of conformity certifcate




Grade 80 Chain FAQ's

Q: What is a grade 80 chain?

Grade 80 chain was specifically designed to for the rigorous requirements of overhead lifting applications. Grade 80 Chain is a Premium quality high strength alloy steel. Grade 80 chains are also referred to as Grade 8, System 8, Spectrum 8.

Q: Is Grade 80 chain approved for lifting?

Yes, this chain is certified and approve for lifting appications

Q: Is this chain in stock and how fast can i get it?

Yes, our Grade 80 chain is very popular and we always keep plenty of stock. Delivery is usually 1-2 working days

Q: If i order 20 metres of this chain will it be supplied in one single length?

Yes, our chain is priced per meter but supplied in a single linear length, so if you order 20 qty it will be supplied as a single length of 20 metres

Q: Can i collect Grade 80 chain?

Yes, our Grade 80 chain and components are available for collection from out trade counter - GS PRODUCTS, Lodgefield Road, Halesowen, West Midlands, B62 8AR
