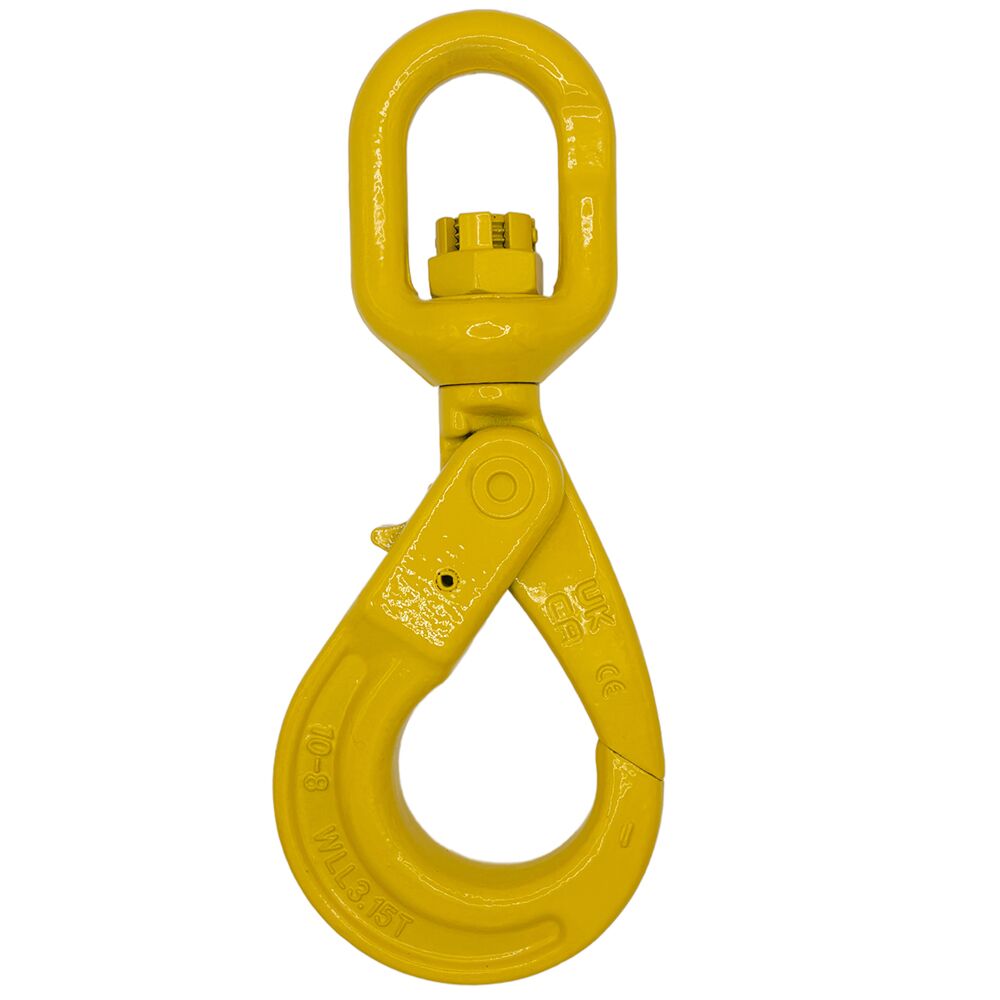

Grade 80 Swivel Self Locking Hook
These swivel self locking hooks meet the performance requirements of BS EN 1677-3 specification.
They are suitable for use with grade 80 chains and on wire/fibre rope slings.
Large swivel eye makes assembly to wire/fibre rope slings (with thimbles) easier.
Each lifting hook is made with alloy steel that is quenched and tempered, then painted yellow.
These are suitable for use with lifting chain sizes 7mm, 8mm, 10mm, and 13mm.
In stock
Download Product Data Sheet
Grade 80 Eye Swivel Hook Technical Specifications:
- Suitable for lifting applications
- Conforms to BS EN 1677-3
- Super alloy Grade 8 steel
- Temperature range -40°C up to +200°C
- Marked with W.L.L, material grade, CE and ID mark
- Fatigue rated x 1.5 Working Load Limit (W.L.L) for 20,000 cycles
- Proof tested - 2.5 times Working Load Limit
- 100% magnaflux crack detection
- Safety Factor 4:1 (breaking load is 4x the W.L.L)
- UK stock
- Comes supplied with relevant certificates
