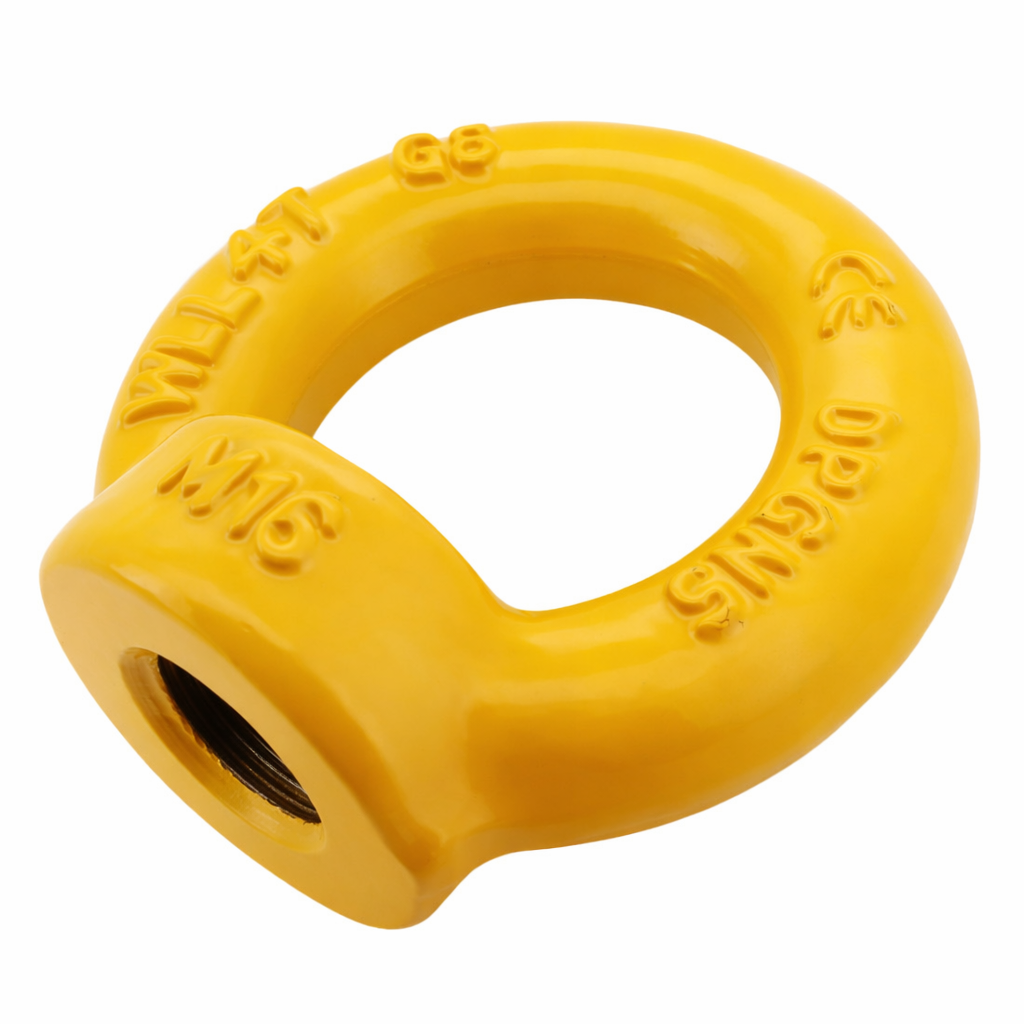

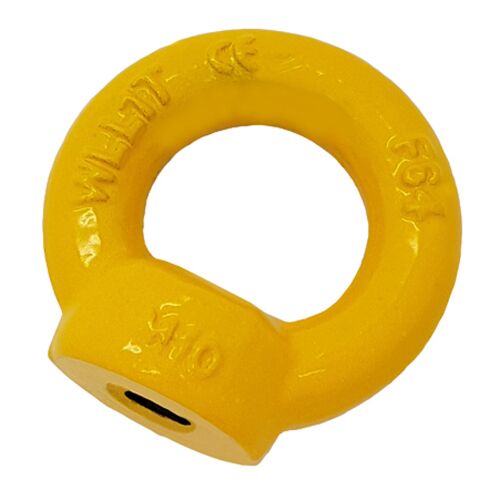

Grade 80 Eye Nuts DIN 582
Our high tensile, grade 80 yellow painted steel lifting eyes have been heat-treated with a high strength to weight ratio.
Our Grade 80 lifting eye nuts have an internal thread are suitable for lifting applications.
M6, M8, M10, M12, M16, M20 and M24 internal metric threaded diameters available.
Please note that the working loads stated are for vertical lift only.
In stock
Download Product Data Sheet
Grade 80 DIN 582 Lifting Eye Nuts Technical Specifications:
- Suitable for lifting applications
- Sizes based generally on DIN 582 eye nuts
- W.L.L based on vertical lifts only
- Super alloy Grade 8 steel
- Temperature range -40°C up to +200°C
- Marked with W.L.L, material grade, CE and ID mark
- Fatigue rated x 1.5 Working Load Limit (W.L.L) for 20,000 cycles
- Proof tested - 2.5 times Working Load Limit
- 100% magnaflux crack detection
- Safety Factor 4:1 (breaking load is 4x the W.L.L)
- UK stock
- Comes supplied with relevant certificates
The below table shows working angles for our DIN 582 Grade 80 Eye Nuts
