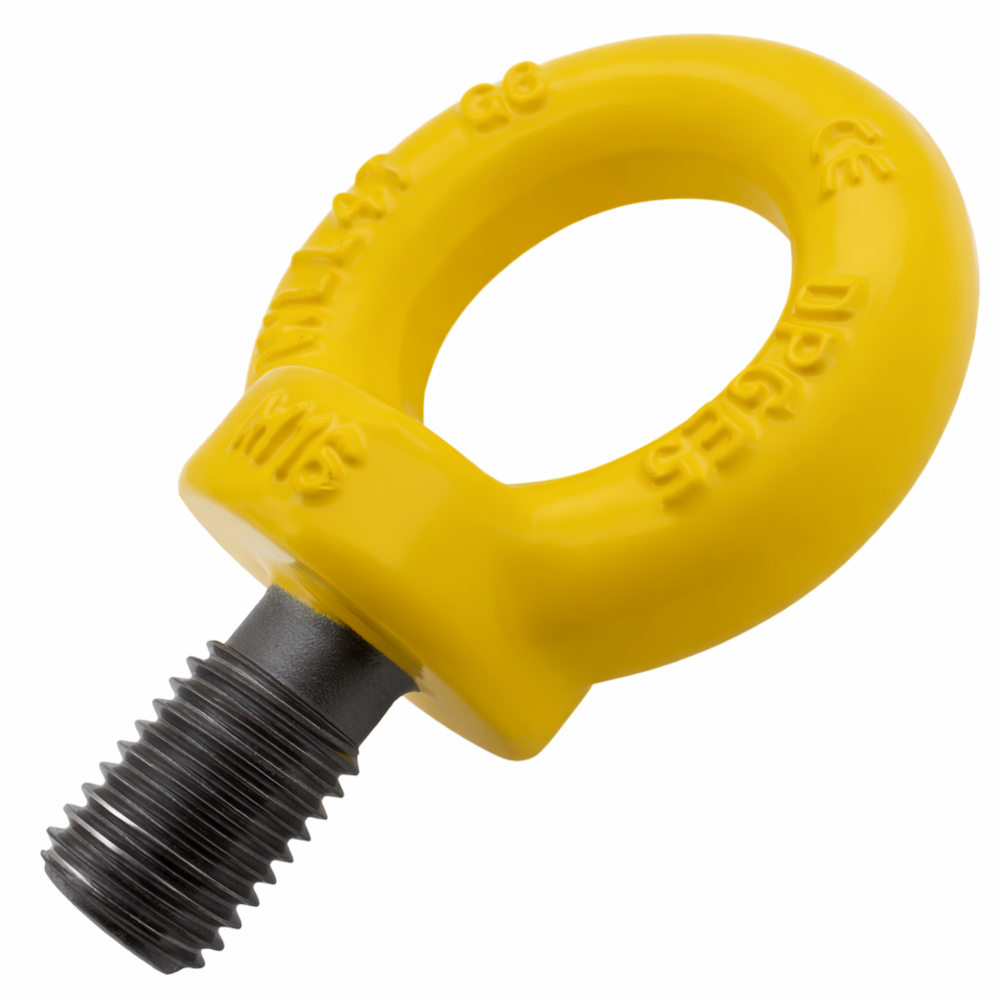

Grade 80 Eye Bolts DIN 580
GS Products supplies a range of grade 80 DIN 580 lifting steel eye bolts that are heat-treated with a high strength to weight ratio.
These are yellow painted (colour may vary) high tensile lifting eyes have metric coarse right hand threads.
M6, M8, M10, M12, M16, M20, and M24 diameters available.
These eye bolts are suitable for lifting.
The working load limit (WLL) shown is for vertical lifts only. Please see below table for non-axial loading.
In stock
Download Product Data Sheet
Grade 80 DIN 580 Lifting Eye Bolts Technical Specifications:
- Suitable for lifting applications
- Sizes based generally on DIN 580 eye bolts
- W.L.L based on vertical lifts only
- Super alloy Grade 8 steel
- Temperature range -40°C up to +200°C
- Marked with W.L.L, material grade, CE and ID mark
- Fatigue rated x 1.5 Working Load Limit (W.L.L) for 20,000 cycles
- Proof tested - 2.5 times Working Load Limit
- 100% magnaflux crack detection
- Safety Factor 4:1 (breaking load is 4x the W.L.L)
- UK stock
- Comes supplied with relevant certificates

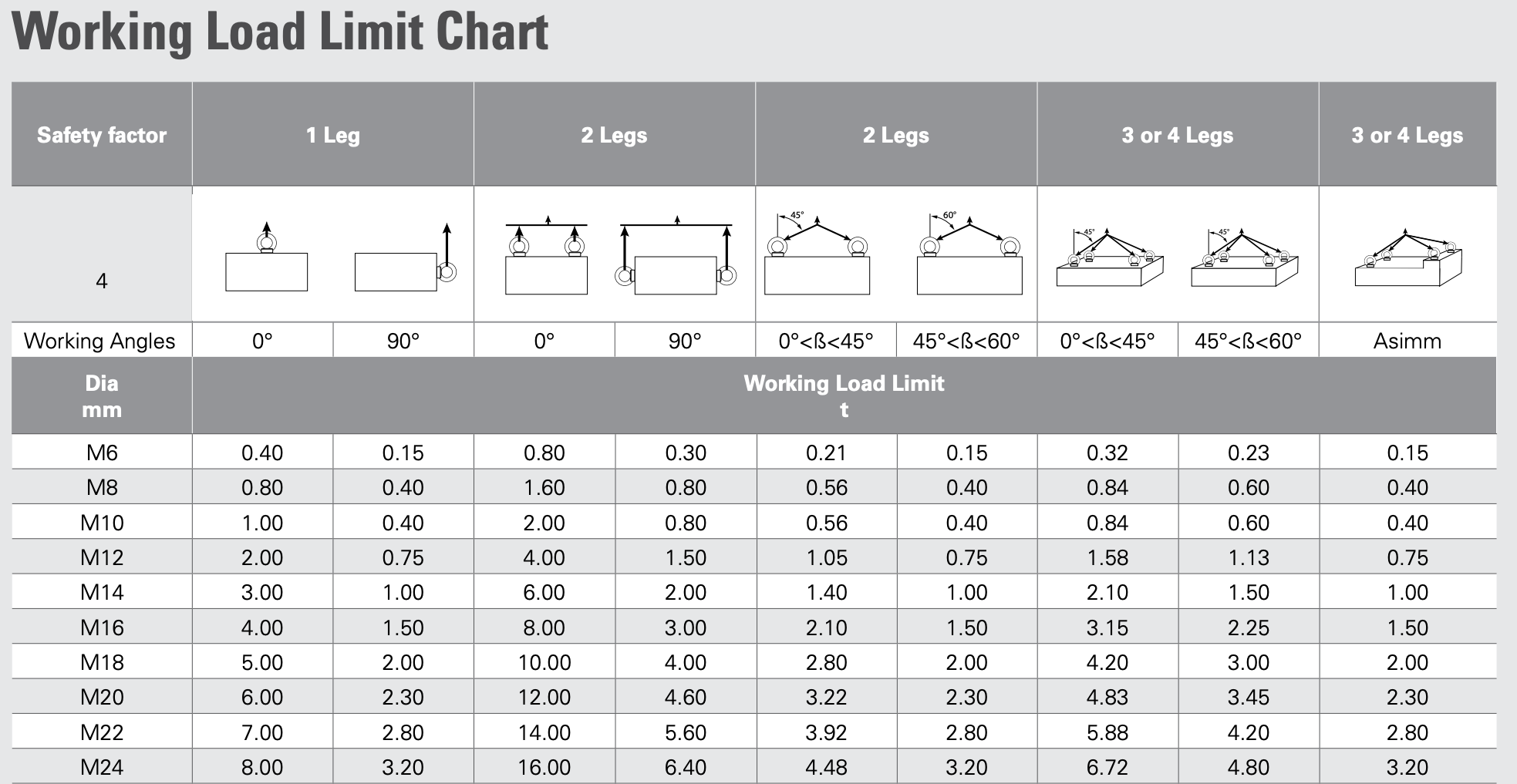

The below table shows working load angles for our DIN 580 Grade 80 Eye Bolts
