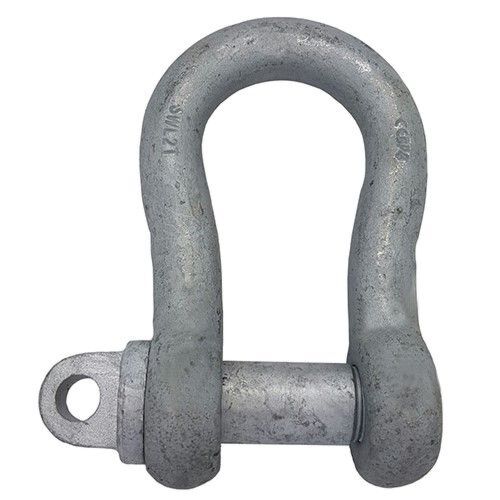

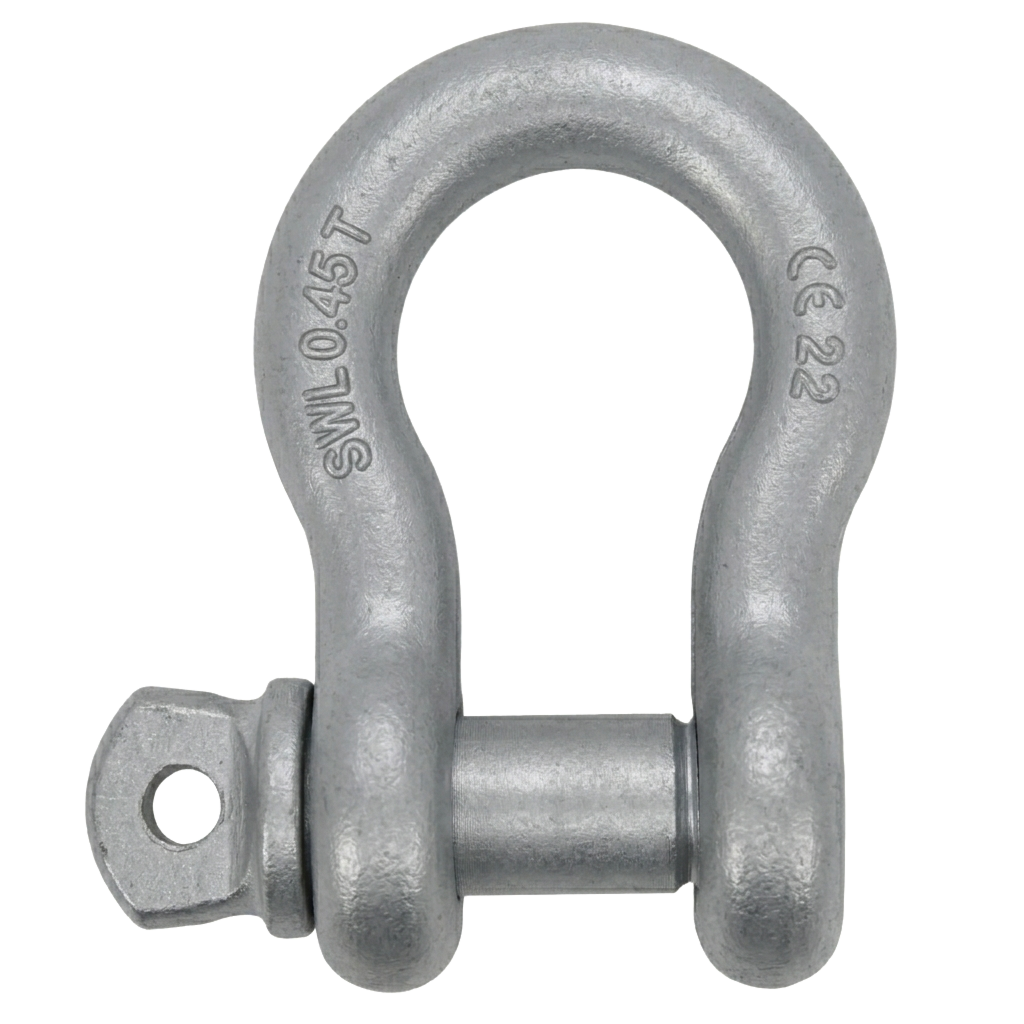

Galvanised Large Bow Shackles BS 3032

More Views

Show Price without VAT

Availability: In stock

Meets the WLL Performance of the withdrawn BS 3032

Hot Dipped Galvanised Steel

High tensile steel C1045

Factor of safety 4:1

Marked with WLL Limit on the Shackle Body

Type A Screw Collar Pin

Product Name	A (inches)	D (inches)	B (inches)	E (inches)	C (inches)	WLL (tonnes)	Price
3/8" 0.45 Tons Large Bow Shackle BS 3032	3/8"	1-5/8"	1/2"	1"	5/8"	0.45	Excl. VAT: £1.72 Incl. VAT: £2.06
1/2" 0.75 Tons Large Bow Shackle BS 3032	1/2"	2-1/8"	5/8"	1-1/4"	7/8"	0.75	Excl. VAT: £1.99 Incl. VAT: £2.39
5/8" 1.25 Tons Large Bow Shackle BS 3032	5/8"	2-3/4"	3/4"	1-1/2"	1-1/8"	1.25	Excl. VAT: £2.99 Incl. VAT: £3.59
3/4" 2 Tons Large Bow Shackle BS 3032	3/4"	3-3/8"	7/8"	1-3/4"	1-3/8"	2.00	Excl. VAT: £4.79 Incl. VAT: £5.75
7/8" 2.75 Tons Large Bow Shackle BS 3032	7/8"	3-7/8"	1"	2"	1-5/8"	2.75	Excl. VAT: £6.99 Incl. VAT: £8.39
1" 3.75 Tons Large Bow Shackle BS 3032	1"	4-1/4"	1-1/8"	2-1/4"	1-3/4"	3.75	Excl. VAT: £8.99 Incl. VAT: £10.79
1-1/8" 4.75 Tons Large Bow Shackle BS 3032	1-1/8"	4-7/8"	1-1/4"	2-1/2"	2"	4.75	Excl. VAT: £12.99 Incl. VAT: £15.59
1-1/4" 5.75 Tons Large Bow Shackle BS 3032	1-1/4"	5-3/8"	1-3/8"	2-3/4"	2-1/4"	5.75	Excl. VAT: £19.99 Incl. VAT: £23.99
1-3/8" 7.25 Tons Large Bow Shackle BS 3032	1-3/8"	6"	1-1/2"	3"	2-1/2"	7.25	Excl. VAT: £27.99 Incl. VAT: £33.59
