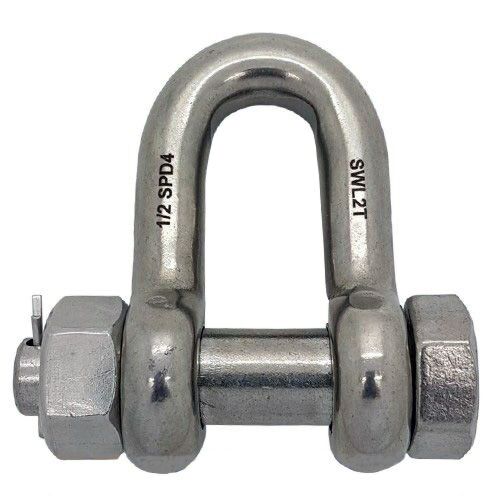

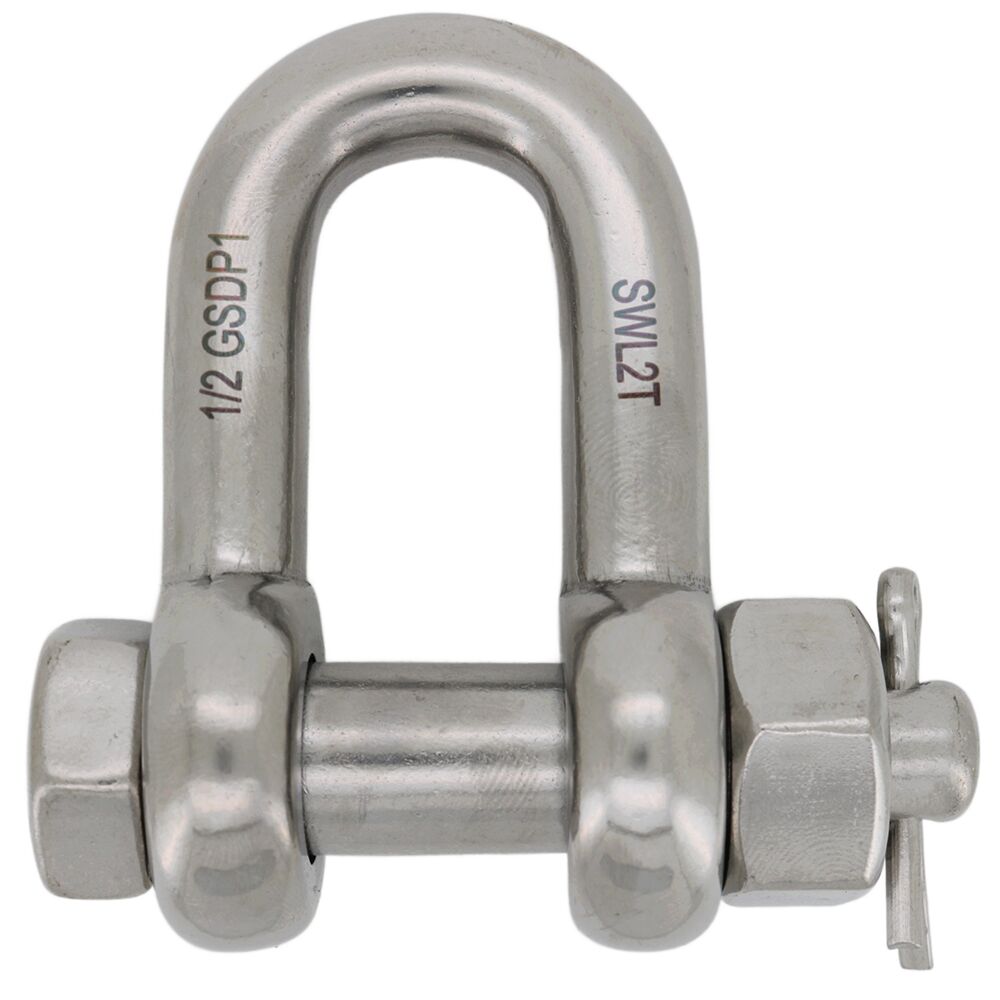

Stainless Steel Safe Working Load Rated Dee Shackles - Safety Pin

GS Products offer load rated stainless steel lifting dee shackles made with A4-AISI 316 stainless steel.

The D shaped shackle body comes with type 'E' safety pin with nut and is suitable for lifting applications.

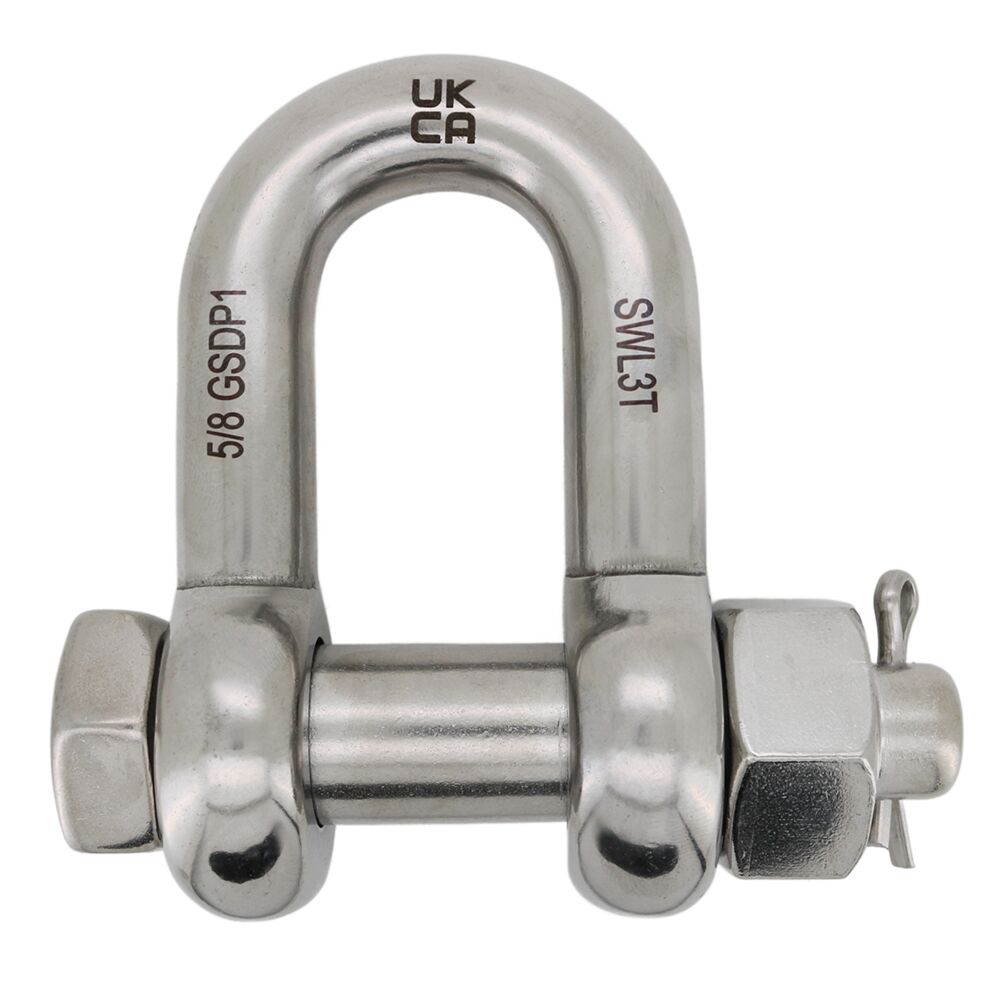

The safe working load (SWL), batch code and UKCA is marked on the D body. The factor of safety is 4:1 (The minimum breaking load is 4x the WLL)

We have 0.75 ton, 1 ton, 2 ton, 3 ton, 4 ton, 5 ton and 6 ton SWLs available.

In stock

Grouped product items
Product Name	A (mm)	B (mm)	C (mm)	H (mm)	D (mm)	E (mm)	F (mm)	G (mm)	SWL (Kgs)	PRICE
0.75 Ton Shackle	7.5	10	20	50	7.5	15	27	49	750	£4.66 £3.88
1 Ton Shackle	9.5	12	24	63	9.5	17	32	60	1000	£4.79 £3.99
2 Ton Shackle	12	16	31	74	12	20	41	77	2000	£9.59 £7.99
3 Ton Shackle	15	20	39	100	15	27	54	111	3000	£15.59 £12.99
4 Ton Shackle	18	21	43	111	18	34	60	111	4000	£27.24 £22.70
5 Ton Shackle	21	24	48	123	21	37	69	125	5000	£41.99 £34.99
6 Ton Shackle	24	27	55	141	24	46	75	138	6000	£47.99 £39.99
