Stainless Steel Wire Rope End Stop Clamp Ring

More Views

Stainless Steel Wire Rope End Stop Clamp Ring
Show Price without VAT

Availability: In stock

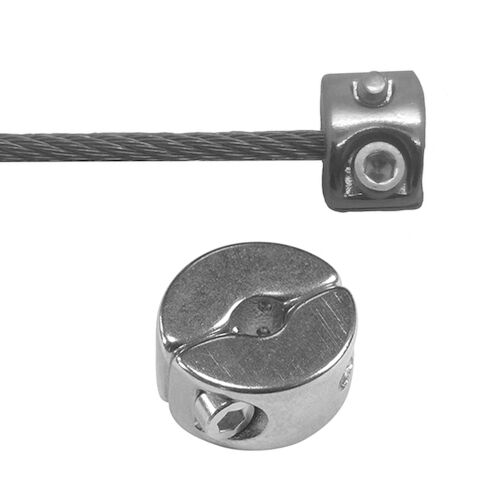

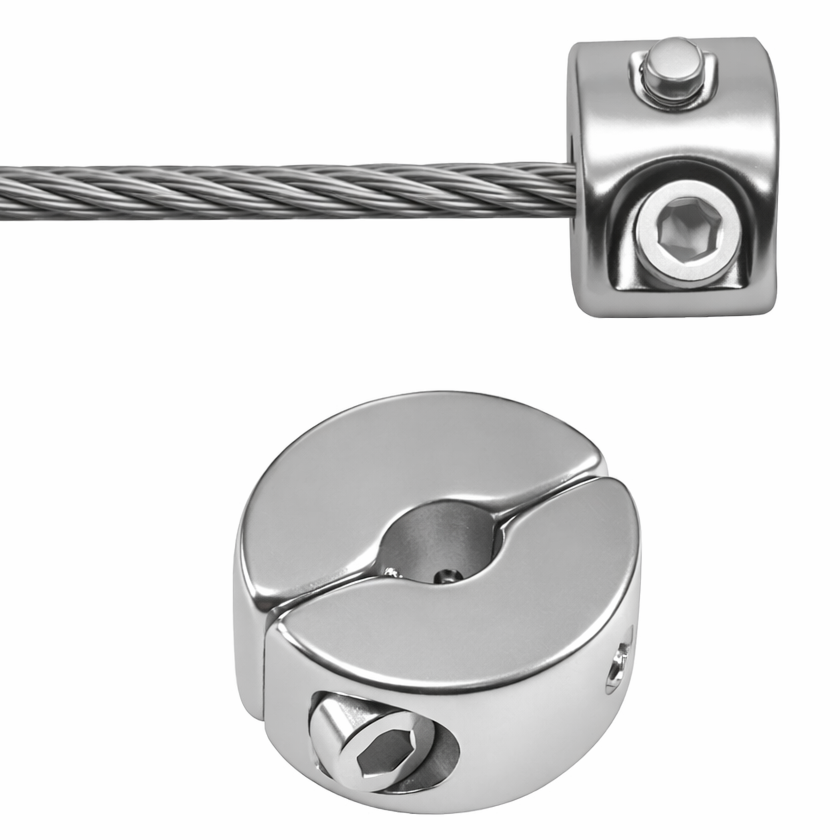

Our Steel Wire Rope End Stop Clamp rings are made from A4 - AISI 316 Stainless Steel, marine grade making them tough, durable and corrosion resistant.

They’re ideal for quick and easy attachment to your Steel Wire Rope via an Allen Key (not Supplied).

These clamp rings are multi-use, can be used as an End Stop, a Location Point or by using a Ring Clamp in a Trellis system as a plant training aid.

Available in range of sizes, they will fit to 3mm, 4mm, 5mm and 6mm diameter steel wire ropes.

They are a 2 piece system that can be totally separated, and are held together by 2 grub screws.

Product Name DS-Ø (mm) Ø (mm) H (mm) Price Qty
2mm End Stopper 2 10 8
Excl. VAT: £1.88 Incl. VAT: £2.26
3mm End Stopper 3 15 10
Excl. VAT: £1.66 Incl. VAT: £1.99
4mm End Stopper 4 15 10
Excl. VAT: £1.66 Incl. VAT: £1.99
5mm End Stopper 5 20 10
Excl. VAT: £1.79 Incl. VAT: £2.15
6mm End Stopper 6 20 10
Excl. VAT: £1.89 Incl. VAT: £2.27
8mm End Stopper 8 20 12
Excl. VAT: £2.06 Incl. VAT: £2.47
Questions & Answers
Expand all
Sort by
Most Recent Questions
Q:
Hi, Will the 2mm end stopper be suitable for a 2mm diameter steel wire. if not, do you have a product that would fit that diameter? Many thanks, in advance for your help
1 answers
Q:
I wondered if there is enough material on the 8mm end stopper, such that I could drill it out to 11mm, to act as a stop point clamped on to an 11mm diameter electrical cable?
egards,
Chris Dunn
1 answers
Q:
with ref to stainless end stopper wire rope end clamp is the DS-0 3mm designed for 3 mm cable or do i have to use DS-0 2mm for 3mm cable ie extra grip
thank you
1 answers
Q:
Hi, I would use these to suspend a sculpture. What is the rated pullout strength in lbs. for these stoppers? I would use the equivalent of 3/32" stainless cable. Thanks!
1 answers
