Balustrade Steel Wire Rope Swage Rigging Screw With Fixing Lacing Eye

More Views

Balustrade Steel Wire Rope Swage Rigging Screw With Fixing Lacing Eye
Show Price without VAT

Availability: In stock

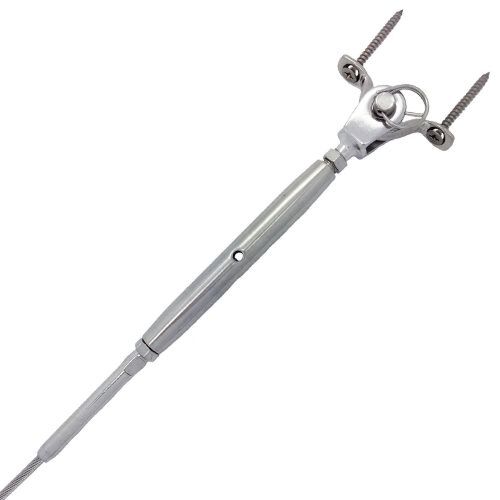

Polished Finish AISI 316 Marine Grade A4 Stainless Steel Rigging Screws with Swage Stud End and Lacing Eye Straps for easy attachment of your Cable

This Balustrade Steel Wire Adjuster needs to be hydraulically pressed onto your Rigging Steel Wire to create an inline adjuster

The Lacing Eye Strap will act as your Balustrade fixing point for any surface

To suit 3mm 4mm and 5mm Steel Wire Rope Diameters
Product Name A (mm) H (mm) D2 (mm) L1 (mm) To Suit Rope D3 (mm) D (mm) Break Load (Kgs) L (mm) Price Qty
6mm Stainless Steel Rigging Screw Jaw/Swage Stud comes with Lacing Eye Strap (3mm Wire Rope) 7.5 10 6.5 175 3mm 3.2 6 1500 90
Excl. VAT: £4.49 Incl. VAT: £5.39
8mm Stainless Steel Rigging Screw Jaw/Swage Stud comes with Lacing Eye Strap (4mm Wire Rope) 11 11 7.5 205 4mm 4.3 8 3000 105
Excl. VAT: £6.49 Incl. VAT: £7.79
10mm Stainless Steel Rigging Screw Jaw/Swage Stud comes with Lacing Eye Strap (5mm Wire Rope) 12 14 9 230 5mm 5.3 9 4300 125
Excl. VAT: £9.79 Incl. VAT: £11.75

 Below shows how an adjustable rigging screw with lacing eye strap fixes to a timber post

Questions & Answers
Expand all
Sort by
Most Recent Questions
Q:
Hi, do the fixing screws come with the lacing eyes, if not what size is needed for using with 3mm wire fittings?
1 answers
