Wire Rope Swage Stud Terminals - Right Handed

More Views

Wire Rope Swage Stud Terminals - Right Handed
Show Price without VAT

Availability: In stock

We offer a range of swage stud fittings, these Swage Stud Terminals are very popular and made from A4-AISI 316 Marine Grade Stainless Steel.

Featuring a polished finish, they are right handed metric coarse threaded. Ideal for making steel wire balustrade systems with steel posts.

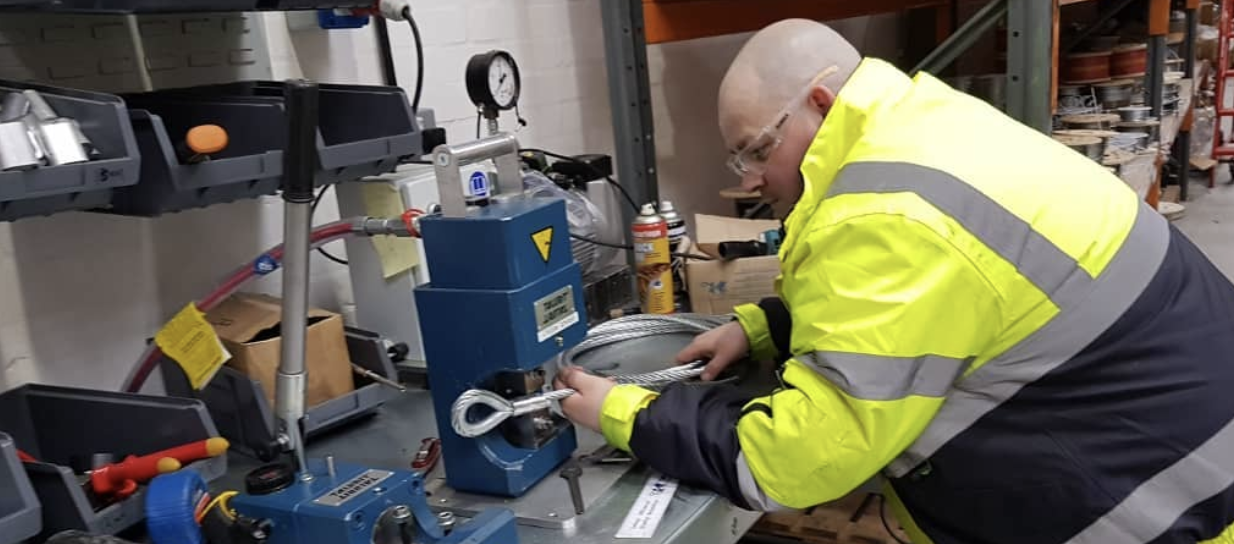

These swage stud fittings need to be Hydraulically Crimped or Swaged onto the Steel Wire Rope. The come with 1 hex nut included.

They are available for use with a wide range of wire rope diameters, including 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, and 12mm diameter wire.

Left Handed Wire Rope Swage Stud versions available here

Product Name Suit Wire Ø (mm) A (mm) L1 (mm) L2 (mm) G (mm) D (mm) L (mm) Price Qty
2mm Stainless Steel Swage Stud Terminal (M4 Stud) 2 2.3 38 30 4 4.5 73
Excl. VAT: £0.79 Incl. VAT: £0.95
3mm Stainless Steel Swage Stud Terminal (M6 Stud) 3 3.3 40 32 6 6.35 80
Excl. VAT: £0.89 Incl. VAT: £1.07
4mm Stainless Steel Swage Stud Terminal (M8 Stud) 4 4.2 52 40 8 7.5 102
Excl. VAT: £1.24 Incl. VAT: £1.49
5mm Stainless Steel Swage Stud Terminal (M10 Stud) 5 5.2 63 57 10 9 130
Excl. VAT: £1.66 Incl. VAT: £1.99
6mm Stainless Steel Swage Stud Terminal (M12 Stud) 6 6.75 68 63 12 12.5 142
Excl. VAT: £2.99 Incl. VAT: £3.59
8mm Stainless Steel Swage Stud Terminal (M16 Stud) 8 8.35 89 76 16 13 175
Excl. VAT: £7.99 Incl. VAT: £9.59
10mm Stainless Steel Swage Stud Terminal (M16 Stud) 10 11 100 80 16 13 210
Excl. VAT: £8.99 Incl. VAT: £10.79
12mm Stainless Steel Swage Stud Terminal (M20 Stud) 12 13 120 85 20 16 245
Excl. VAT: £12.99 Incl. VAT: £15.59

The swage stud fittings are very popular, commonly used when making a steel wire balustarde system with steel posts

Pictured below is a 4mm swage stud fitting screwed directly into a 42.5mm diameter post, the holes have been tapped out and these swage studs have been directly screwed in, the nut then will act as a locking nut against the post
