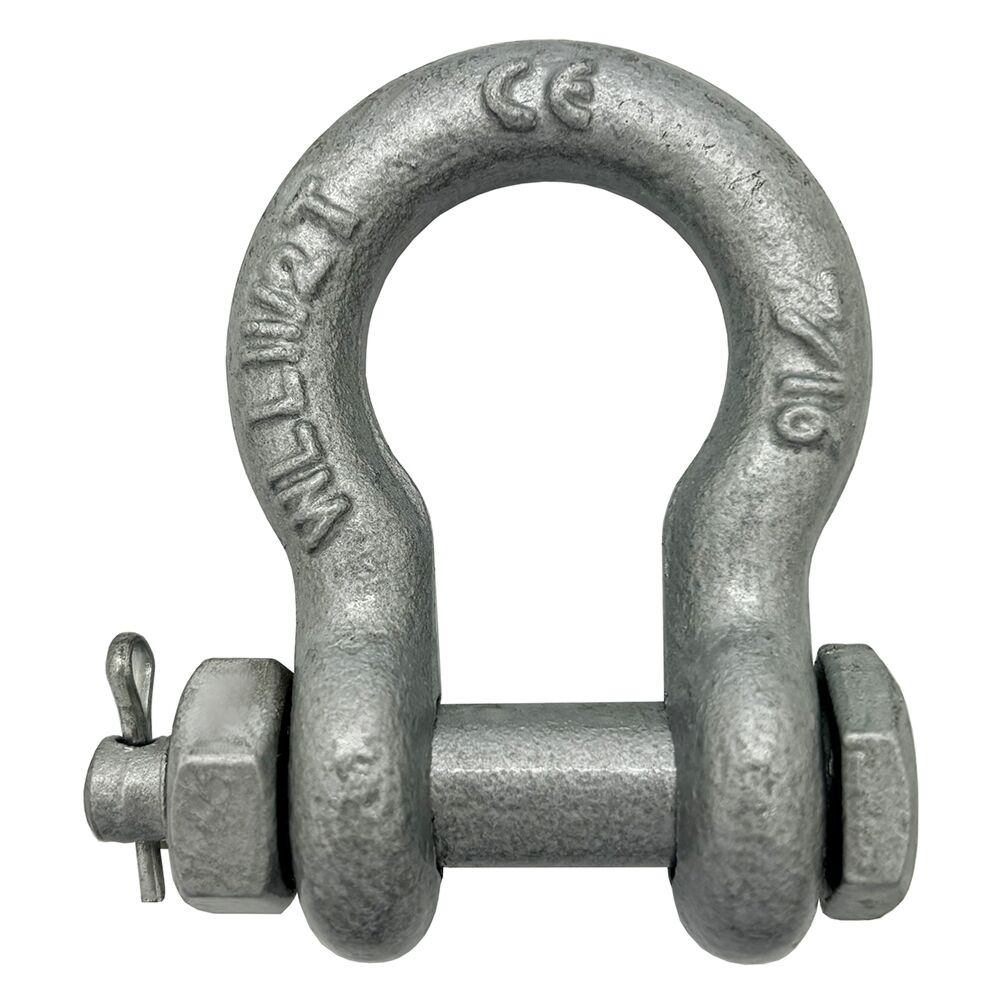

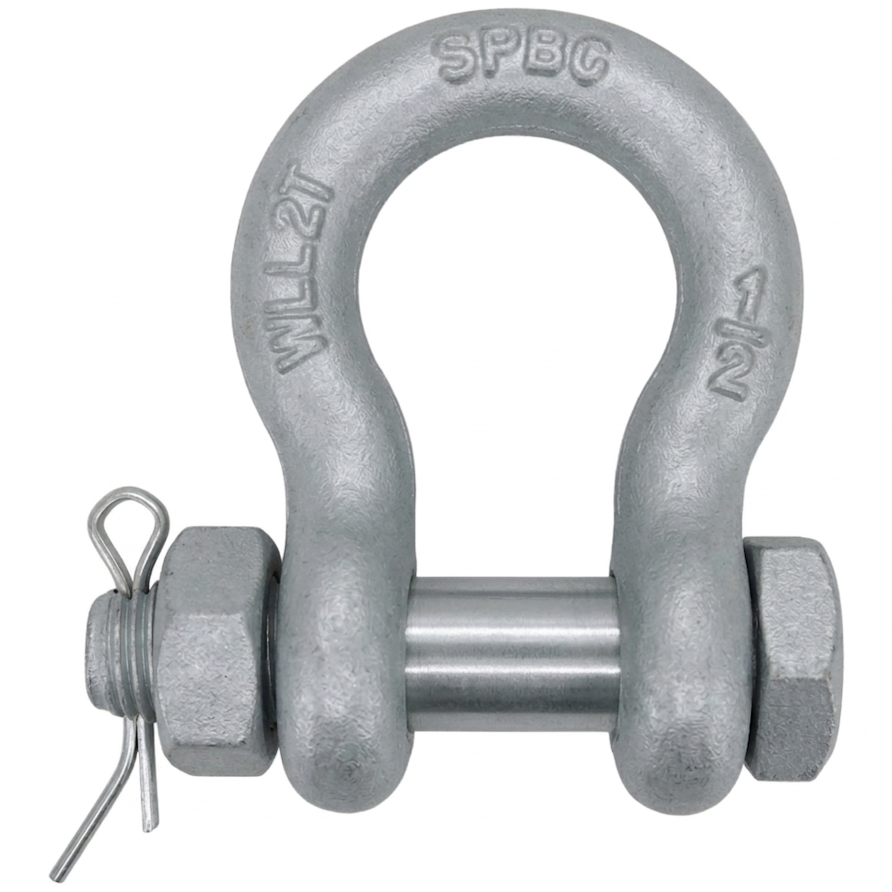

Galvanised Steel Lifting Bow Shackle - Safety Pin

GS Products offers lifting shackles with grade 6 high tensile steel body and pin. These lifting shackles have been quenched and tempered.

Working Load Limit marked and CE on shackle body. These lifting shackles meet US FED specification RR C 271.

Factor of Safety 6:1.

This safety nut and bolt bow shaped shackle design is available in sizes 0.75 tonnes - 12.00 tonne.

Made from hot dipped galvanised steel.

In stock

Grouped product items
Product Name	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	2x E (mm)	WLL (tonnes)	PRICE
0.75 tonnes US Fed Bow Shackle	8	10	13	31	10.5	21	0.75	£1.78 £1.48
1.00 tonnes US Fed Bow Shackle	9.5	12	17	36.5	13	26	1.00	£2.06 £1.72
1.50 tonnes US Fed Bow Shackle	11	12	18	42.5	14.5	29	1.50	£2.86 £2.38
2.00 tonnes US Fed Bow Shackle	12.7	16	20.6	47.3	16	32	2.00	£3.50 £2.92
3.25 tonnes US Fed Bow Shackle	16	19.8	27	60.5	21.5	43	3.25	£5.28 £4.40
4.75 tonnes US Fed Bow Shackle	19	22	32	71.5	25.5	51	4.75	£8.99 £7.49
6.50 tonnes US Fed Bow Shackle	22	27	36.5	84	29	58	6.50	£12.86 £10.72
8.50 tonnes US Fed Bow Shackle	25	30	43	96	34	66	8.50	£17.78 £14.82
9.50 tonnes US Fed Bow Shackle	28.5	33	46	108	37.5	75	9.50	£24.53 £20.44
12.00 tonnes US Fed Bow Shackle	31.8	36	51.6	119	41.5	83	12.00	£31.42 £26.18
