Stainless Steel Drop In Anchors

More Views

Stainless Steel Drop In Anchors
Show Price without VAT

Availability: In stock

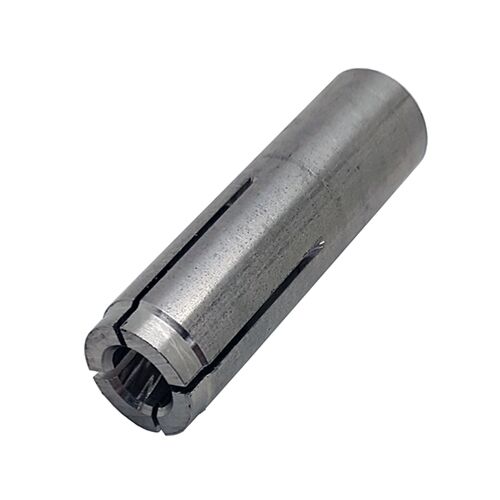

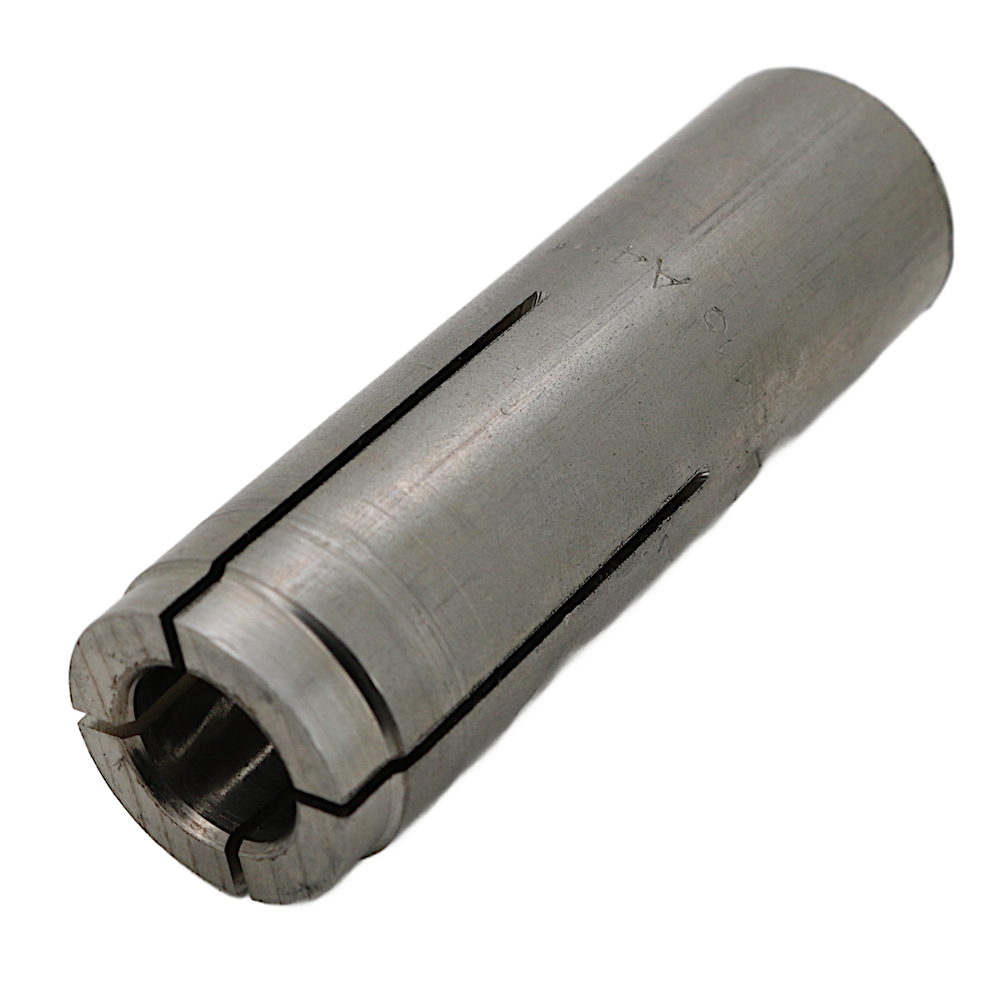

A4 - AISI 316 Stainless Steel Drop In Anchors

A setting punch will be required

Deformation controlled anchor, suitable for use in non-cracked concrete between C20/25 and C50/60.

Internal thread suits threaded studs or bolts, M6, M8, M10, M12 and M16 diameters available.

Permanent socket to allow removal and replacement of fixture

Tested to ETAG 001 Part 4

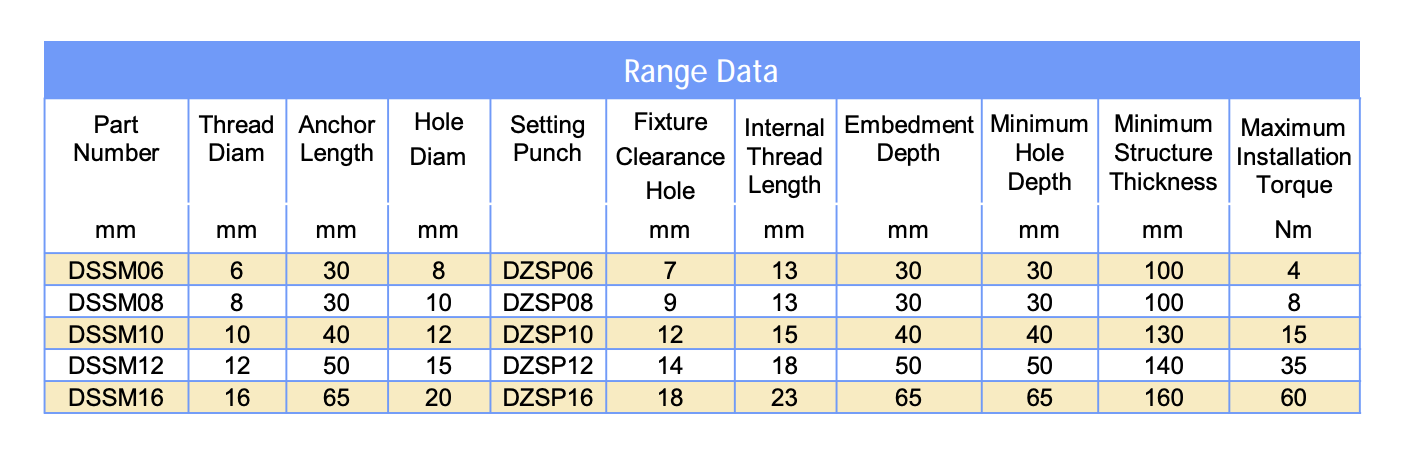

Product Name Thread Diam (mm) Drill Hole Diameter (mm) Embedment Depth (mm) Overall Anchor Length (mm) Installation Torque (Nm) Setting Punch Required Price Qty
M6 Stainless Steel Drop In Anchor 6 8 30 30 4 DZSP06
Excl. VAT: £0.74 Incl. VAT: £0.89
M8 Stainless Steel Drop In Anchor 8 10 30 30 8 DZSP08
Excl. VAT: £0.89 Incl. VAT: £1.07
M10 Stainless Steel Drop In Anchor 10 12 40 40 15 DZSP10
Excl. VAT: £1.49 Incl. VAT: £1.79
M12 Stainless Steel Drop In Anchor 12 15 50 50 35 DZSP12
Excl. VAT: £2.89 Incl. VAT: £3.47
M16 Stainless Steel Drop In Anchor 16 20 65 65 60 DZSP16
Excl. VAT: £5.89 Incl. VAT: £7.07
