12mm x 100mm Stainless Steel Countersunk Sleeve Anchor

More Views

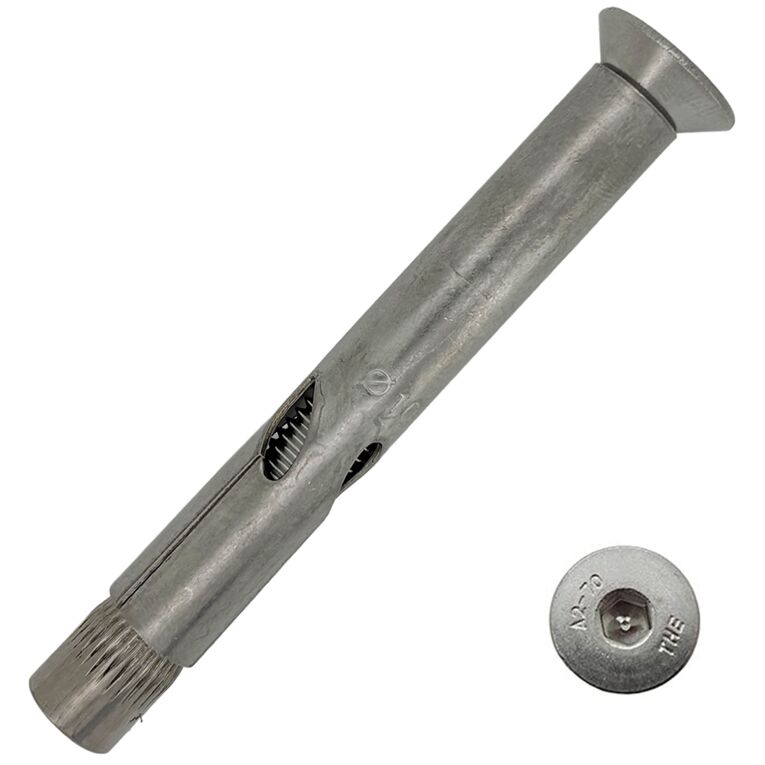

12mm x 100mm Stainless Steel Countersunk Sleeve Anchor
Excl. VAT: £1.89 Incl. VAT: £2.27
Show Price without VAT

Availability: In stock

SKU: SLC12100SS
Drill Diameter 12mm
Overall Anchor Length 100mm
Head Diameter 20mm
Maximum Fixture Clearance 30mm
Minimum Hole Depth 100mm
Hex Socket Drive A/F 6mm
Minimum Structure Thickness 125mm
Installation Torque Concrete 35Nm
Installation Torque Brick 32Nm
Installation Torque Block 25Nm

  • A2/AISI 304 stainless steel countersunk sleeve anchor
  • Torque controlled expansion collapse feature to allow a positive clamping force
  • For use in non-cracked concrete, dense concrete blocks, solid bricks and some ntural stone
  • Supplied pre-assembled for rapid installation
