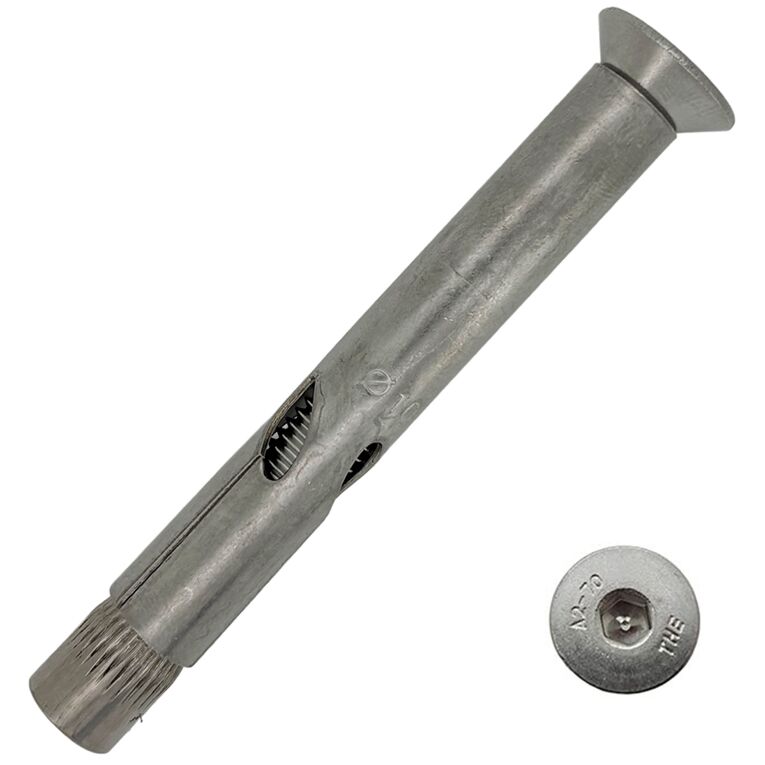

10mm x 60mm Stainless Steel Countersunk Sleeve Anchor

More Views

10mm x 60mm Stainless Steel Countersunk Sleeve Anchor
Excl. VAT: £0.96 Incl. VAT: £1.15
Show Price without VAT

Availability: In stock

SKU: SLC10060SS
Drill Diameter 10mm
Overall Anchor Length 60mm
Head Diameter 16mm
Maximum Fixture Clearance 9mm
Minimum Hole Depth 60mm
Hex Socket Drive A/F 5mm
Minimum Structure Thickness 100mm
Minimum Hole Depth 60mm
Installation Torque Concrete 20Nm
Installation Torque Brick 18Nm
Installation Torque Block 10Nm

  • A2/AISI 304 stainless steel countersunk sleeve anchor
  • Torque controlled expansion collapse feature to allow a positive clamping force
  • For use in non-cracked concrete, dense concrete blocks, solid bricks and some ntural stone
  • Supplied pre-assembled for rapid installation
