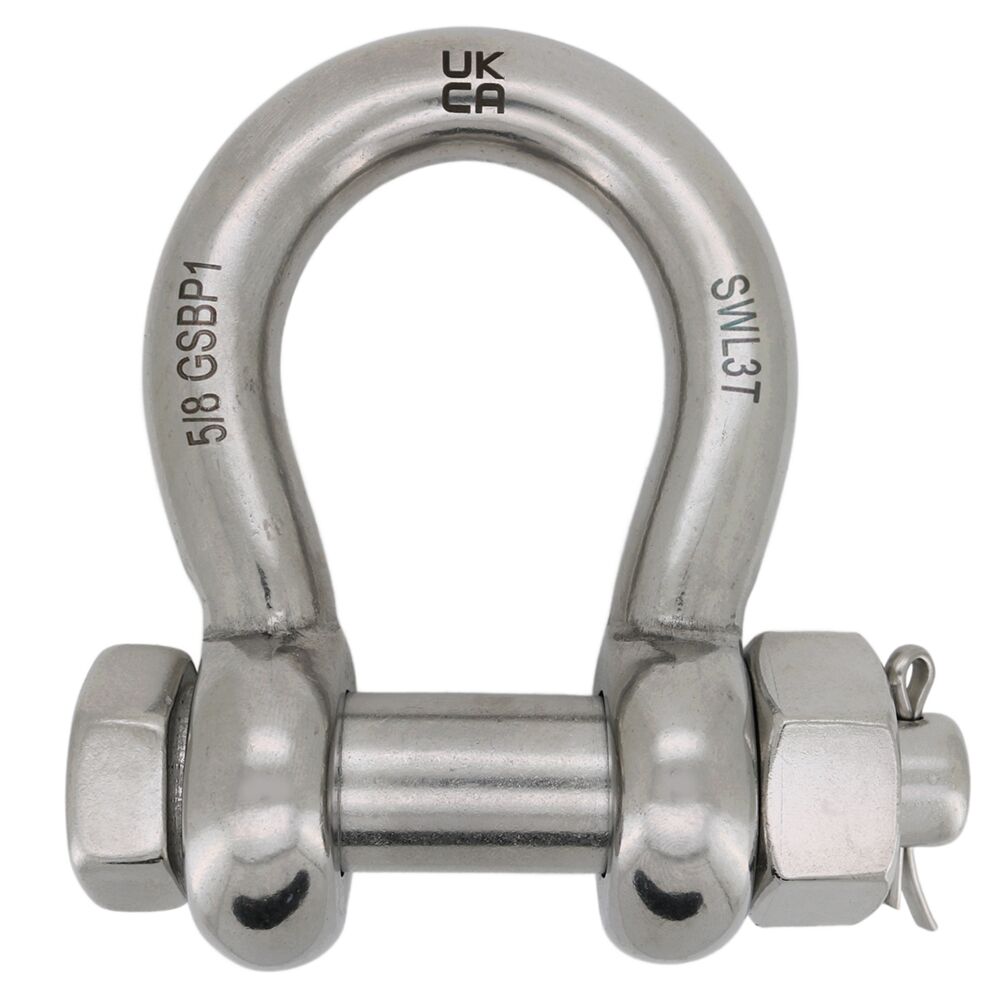

Stainless Steel Safe Working Load Rated Bow Shackles - Safety Pin

More Views

Show Price without VAT

Availability: In stock

A4 - AISI 316 Marine Grade Stainless Steel - Polished Finish

Type 'E' Safety Pin with Nut Excellent for lifting purposes(4:1 Factor of Safety)

Safe Working Load is marked on the Shackle Body

0.75ton, 1ton, 2 ton, 3ton, 4 ton, 5ton and 6ton SWL's available

Product Name	A (mm)	F (mm)	E (mm)	H (mm)	I (mm)	B (mm)	C (mm)	G (mm)	D (mm)	K (mm)	J (mm)	SWL (Kgs)	Price
0.75 Ton Shackle	7.5	30	13	54	50	10	19	21	7.5	8	35	750	Excl. VAT: £2.99 Incl. VAT: £3.59
1 Ton Shackle	9.5	36	18	64	64	12	24	26	9.5	8	44	1000	Excl. VAT: £3.99 Incl. VAT: £4.79
2 Ton Shackle	12	50	22	84	76	16	31	34	12	11	57	2000	Excl. VAT: £7.99 Incl. VAT: £9.59
3 Ton Shackle	15	61	28	115	98	19.5	38	43	15	13	72	3000	Excl. VAT: £14.99 Incl. VAT: £17.99
4 Ton Shackle	18	75	32	128	113	21.5	43	54	18	15	88	4000	Excl. VAT: £24.99 Incl. VAT: £29.99
5 Ton Shackle	20	84	38	144	124	24	49	58	20	17	97	5000	Excl. VAT: £39.99 Incl. VAT: £47.99
6 Ton Shackle	24	95	45	160	140	28	54	67	24	20	114	6000	Excl. VAT: £49.99 Incl. VAT: £59.99
