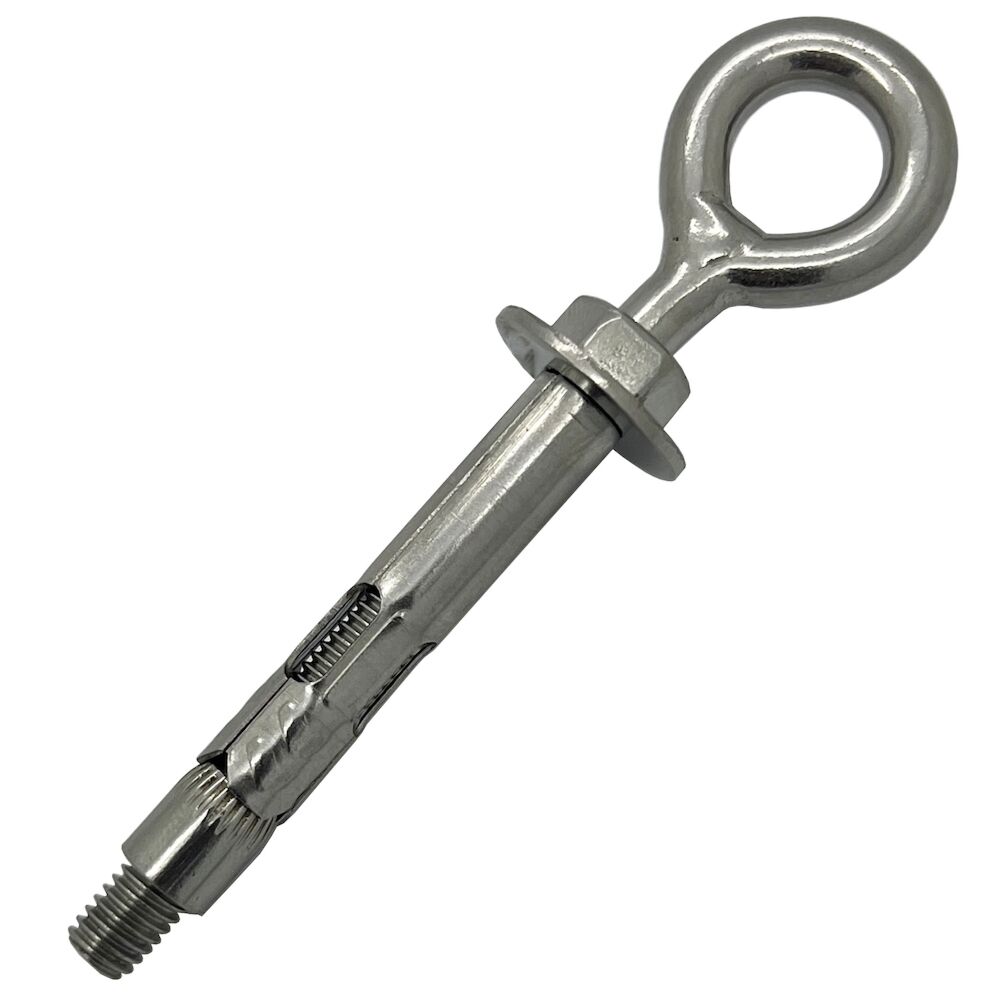

Stainless Steel Eye Bolts with Expansion Shield Anchor

More Views

Stainless Steel Eye Bolts with Expansion Shield Anchor
Show Price without VAT

Availability: In stock

A2 - AISI 304 Grade Stainless Steel

Anchor Eye Bolt with expansion shield - ideal for fixing into masonry

Easy to use mechanism, simply tighten the eye bolt and the expansion shield expands to create a secure fixing

Comes with nut and washer

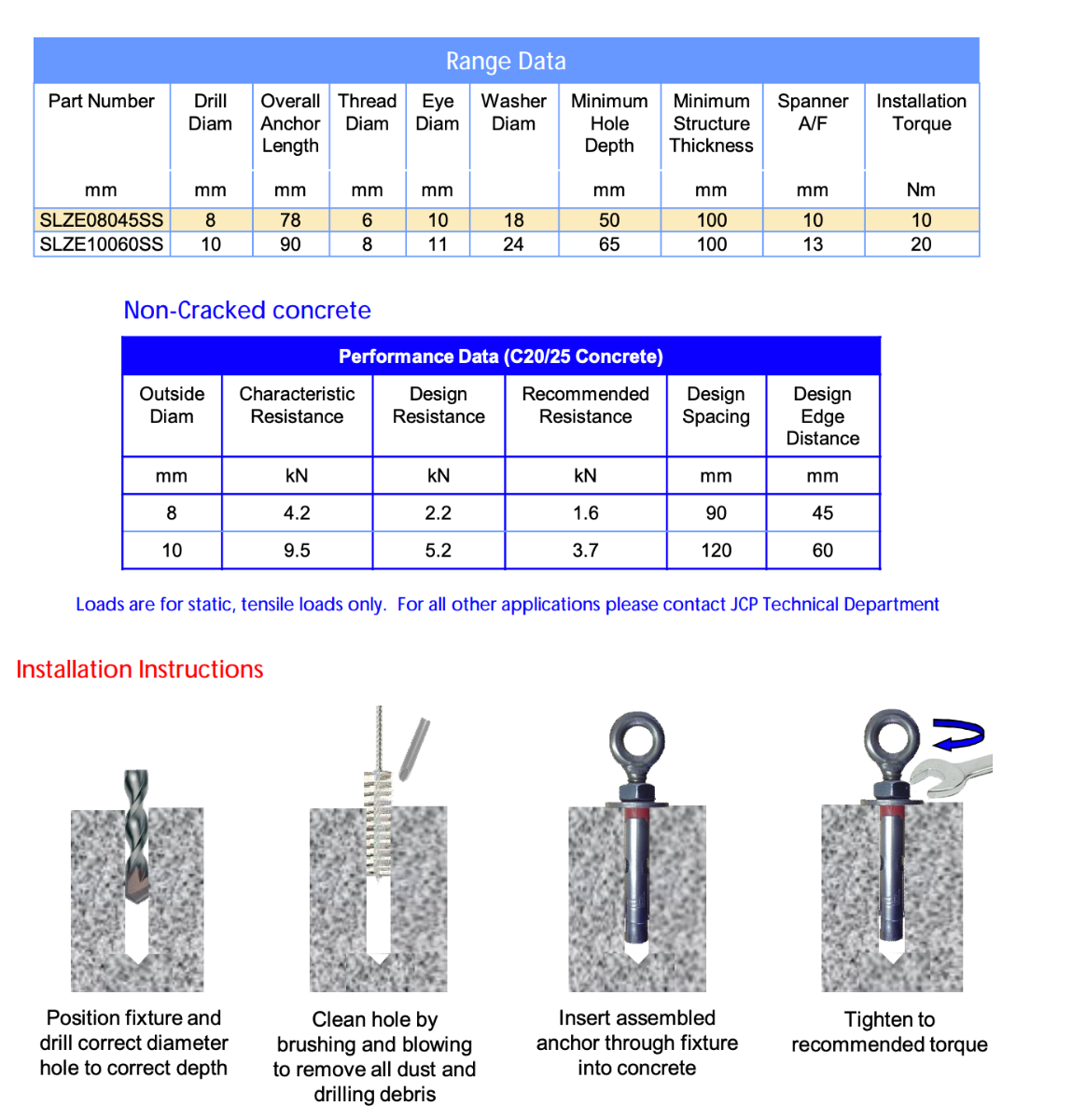

Product Name Thread (mm) Shield Holding Size (mm) Min Hole Depth (mm) D (mm) Eye (mm) Tensile Resistance (KN) L (mm) Price Qty
8mm Eye Bolt with Expansion Shield 6 8 50 8 10 1.6 78
Excl. VAT: £2.49 Incl. VAT: £2.99
10mm Eye Bolt with Expansion Shield 8 10 65 10 11 3.7 90
Excl. VAT: £3.32 Incl. VAT: £3.98
Questions & Answers
Expand all
Sort by
Most Recent Questions
Q:
What diameter drill bit is required to fix the 8mm version of this product ?
1 answers
Q:
What size hole needs to be drilled in brickwork for the 8mm eye bolt with expansion shield? The table says that diameter of the shield holding size is 8mm - so does that mean an 8mm hole or is a larger hole required to allow it to expand? Is 10mm OK?
1 answers
Q:
What is the working load for this anchor assuming correct installation?
1 answers
Q:
Hi
Can the thread eye be removed or is it permanently fixef
1 answers
Q:
What diameter drill bit would be needed for a 10mm anchor bolt
1 answers
Q:
Are these intended for indoor or outdoor applications?
Also, what is the maximum load that can be applied?
1 answers
