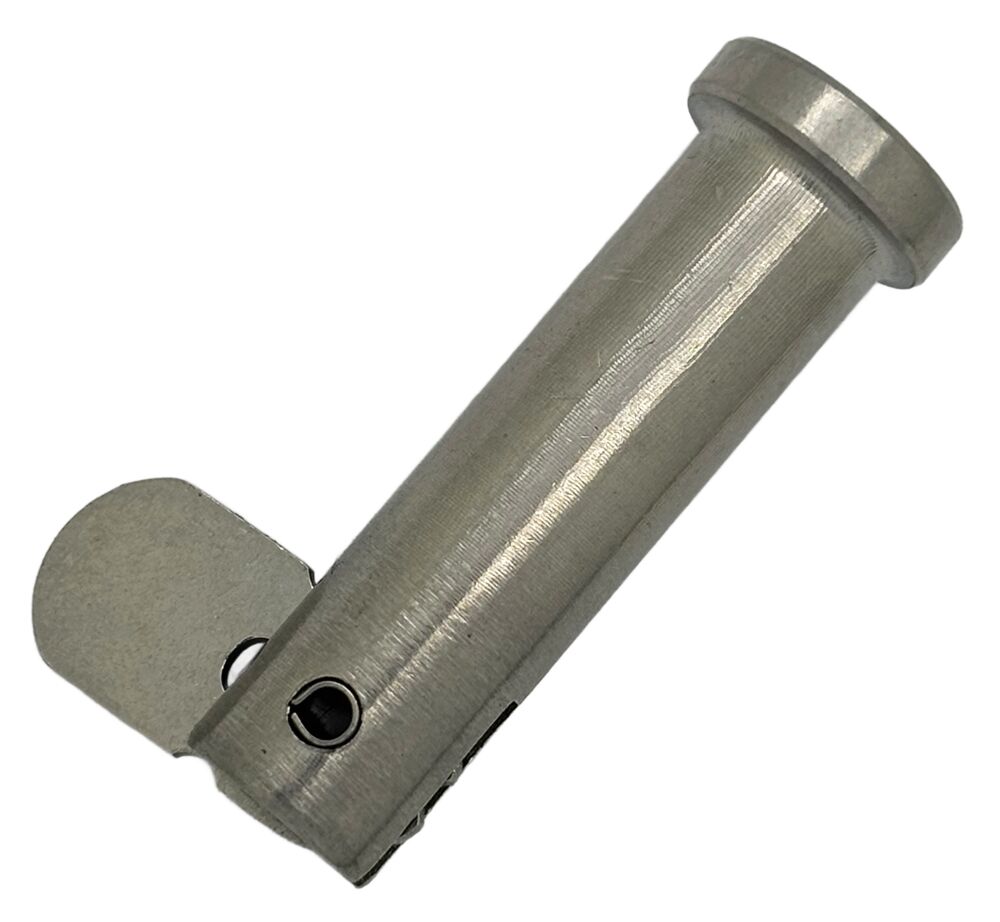

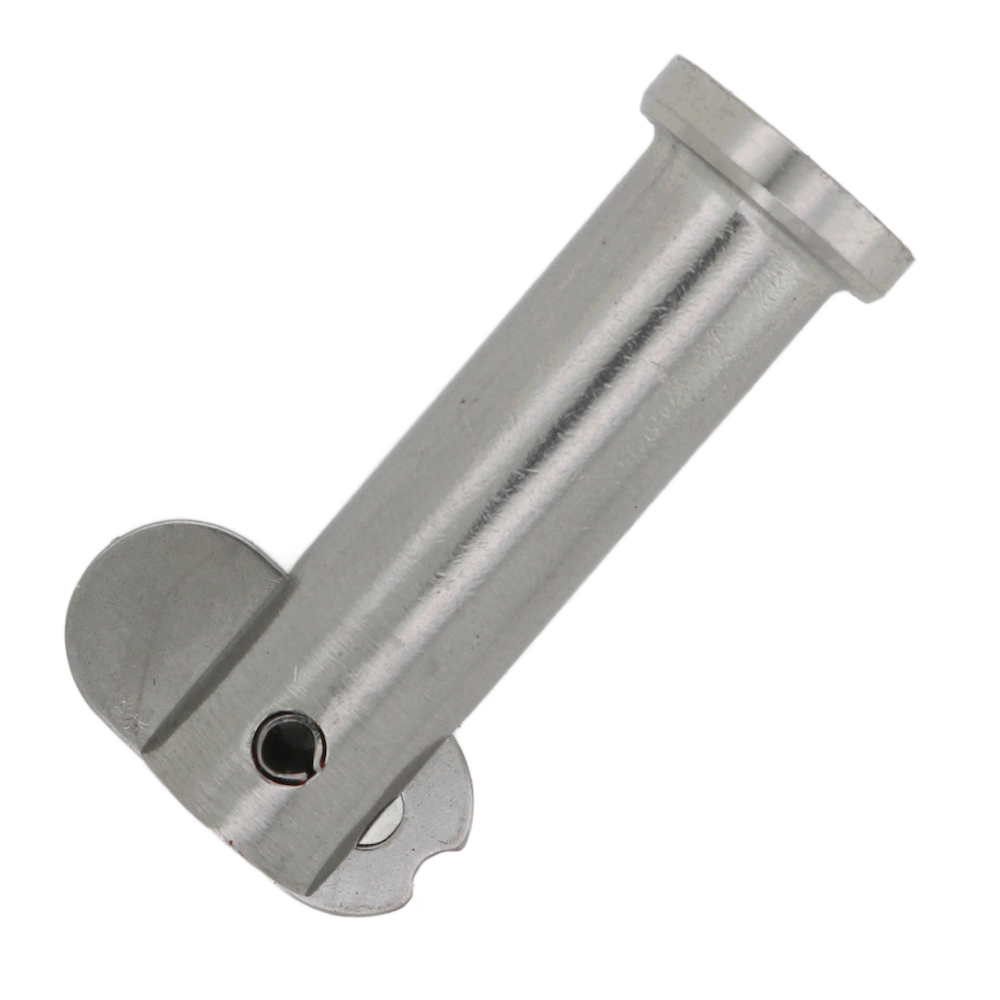

Stainless Steel Drop Nose Clevis Pins

GS Products offer A4 - AISI 316 grade stainless steel clevis retaining pins with a high polished finish.

The drop nose is spring loaded so when it is set it is fixed, it must be pressed in to release. This clevis pin is very popular as you do not require a separate retaining pin, the spring loaded end offers a fast and easy attachment.

6mm, 8mm and 10mm diameters available in different lengths.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	L (mm)	L1 (mm)	Ø (mm)	PRICE	Qty
6mm x 20mm Pin	20	12	6	£2.26 £1.88
6mm x 26mm Pin	26	18	6	£2.30 £1.92
6mm x 31mm Pin	31	23	6	£2.32 £1.93
6mm x 56mm Pin	56	48	6	£2.35 £1.96
6mm x 65mm Pin	65	57	6	£2.39 £1.99
8mm x 28mm Pin	28	20	8	£2.39 £1.99
8mm x 34mm Pin	34	25	8	£2.45 £2.04
8mm x 38mm Pin	38	30	8	£2.51 £2.09
8mm x 43mm Pin	43	38	8	£2.63 £2.19	Out of stock Notify me when in stock
10mm x 35mm Pin	35	25	10	£2.86 £2.38
10mm x 45mm Pin	45	35	10	£2.92 £2.43
10mm x 55mm Pin	55	45	10	£2.99 £2.49
