KL100 Zip-Clip Rize Steel Wire Rope Grip (1.5mm - 2.3mm Wire)
In stock
SKU: KL100
| Model Number | KL100 |
| Suits Wire | 1.5mm - 2.3mm |
| W | 26mm |
| L | 18mm |
| SWL | 50kgs |

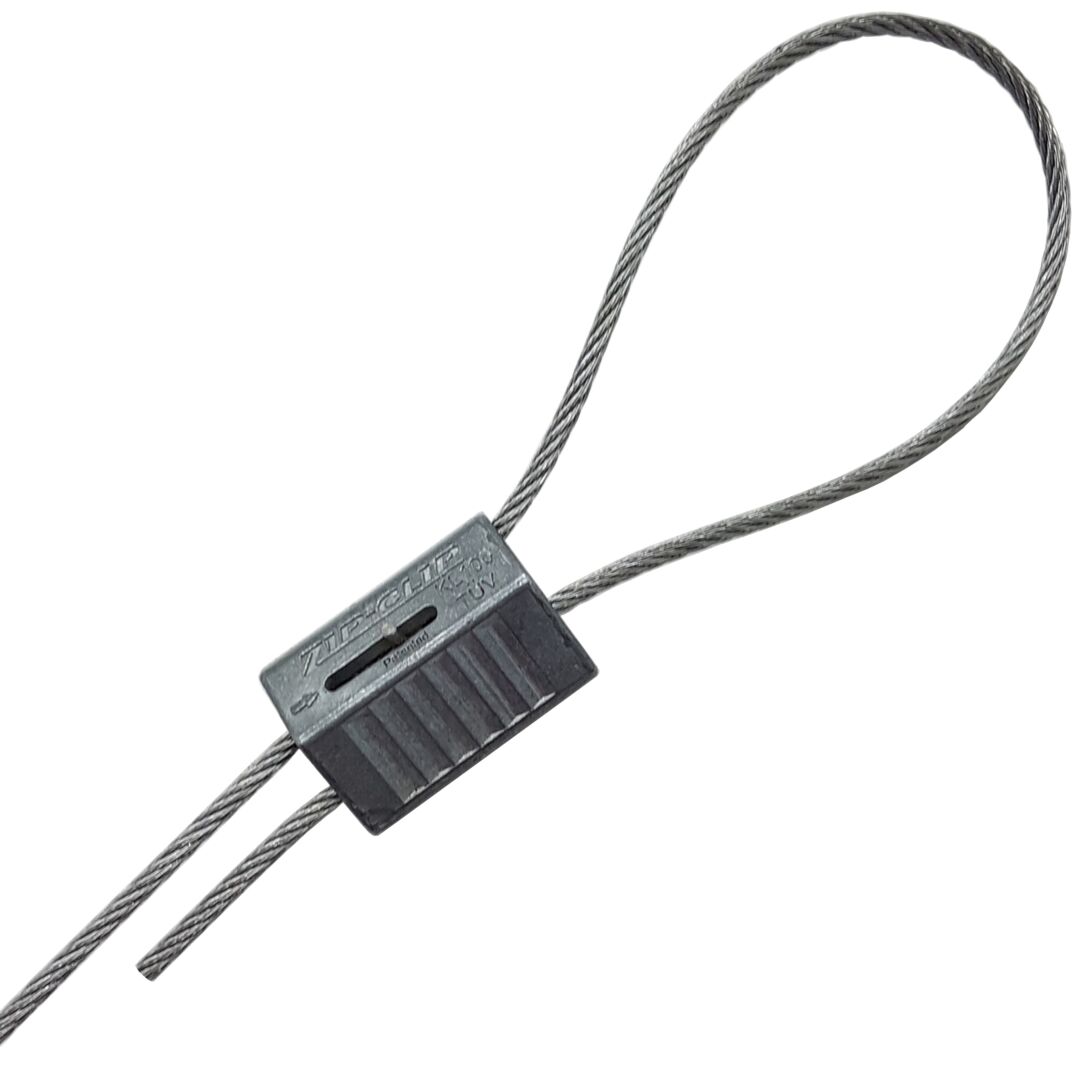

Check out this key free, easy release system Zip-Clip Rize steel wire rope grip. It's suitable for use with galvanised steel wire rope and can be re-used.
Perfect for use with a variety of tasks, these wire rope grips can be used with steel works, I beams or purlins.
These wire rope grips are ideal for suspended lengths of HVAC, electrical, signage and many more applications where a quick and secure wire grip is required.
SWL stated load is only valid when used with Zip-Clip branded steel wire ropes only.
£1.72
£1.43
Installation guide
- Cut wire to desired length for the drop required
- Pass one end of the wire through the zip-clip in the direction of the arrow on the Zip-Clip Rize body and draw through enough wire to go around your fixing point
- Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
- At the other end again pass the wire through the zip-clip in the direction of the arrow
- Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
- Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated
