BZP Steel DIN444 Eye Swing Bolts

More Views

Show Price without VAT

Availability: In stock

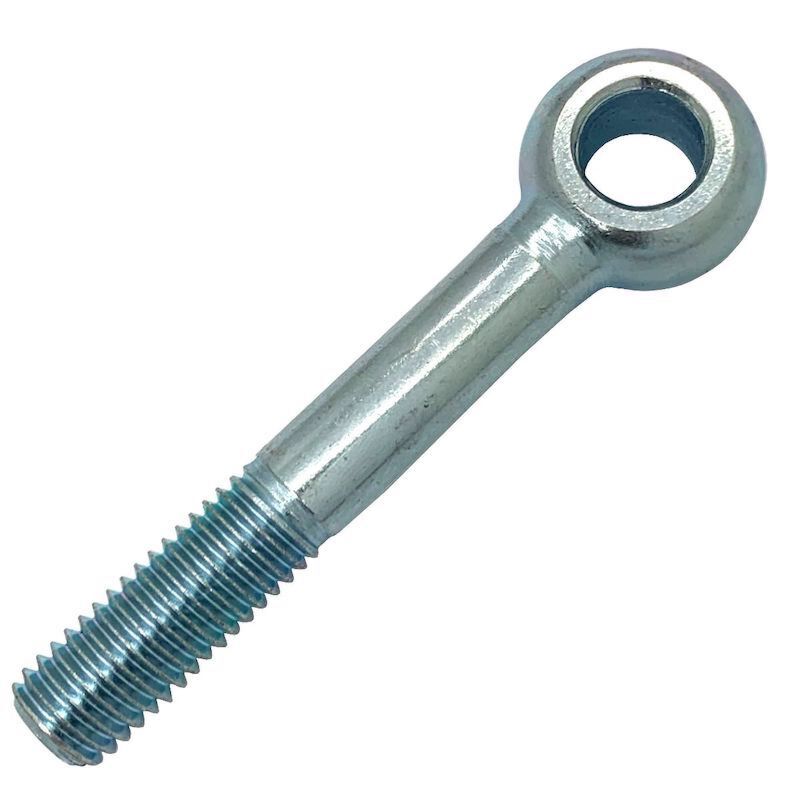

Bright Zinc Plated Steel Eye Bolts - Know also as Swing Bolts

Manufactured to Din444 Specification

5mm, 6mm, 8mm, 10mm, 12mm and 16mm diameters available in multiple lengths

Right handed metric coarse thread

PLEASE NOTE - Threaded area on the shank can vary considerably between each size, please examine the drawing carefully for exact sizes

Product Name	A (mm)	E (mm)	C (mm)	D (mm)	B (mm)	Price
M5 x 25mm Eye Bolt	5	5	25	12	14	Excl. VAT: £0.44 Incl. VAT: £0.53
M5 x 35mm Eye Bolt	5	5	35	12	16	Excl. VAT: £0.46 Incl. VAT: £0.55
M6 x 30mm Eye Bolt	6	6	30	14	17	Excl. VAT: £0.54 Incl. VAT: £0.65
M6 x 50mm Eye Bolt	6	6	50	14	17	Excl. VAT: £0.60 Incl. VAT: £0.72
M6 x 80mm Eye Bolt	6	6	80	14	19	Excl. VAT: £0.62 Incl. VAT: £0.74
M8 x 40mm Eye Bolt	8	8	40	18	23	Excl. VAT: £0.64 Incl. VAT: £0.77
M8 x 50mm Eye Bolt	8	8	50	18	23	Excl. VAT: £0.72 Incl. VAT: £0.86
M8 x 80mm Eye Bolt	8	8	80	18	23	Excl. VAT: £0.88 Incl. VAT: £1.06
M8 x 100mm Eye Bolt	8	8	100	18	23	Excl. VAT: £0.92 Incl. VAT: £1.10
M10 x 40mm Eye Bolt	10	10	40	20	23	Excl. VAT: £0.66 Incl. VAT: £0.79
M10 x 50mm Eye Bolt	10	10	50	20	23	Excl. VAT: £0.76 Incl. VAT: £0.91
M10 x 80mm Eye Bolt	10	10	80	20	23	Excl. VAT: £0.94 Incl. VAT: £1.13
M10 x 100mm Eye Bolt	10	10	100	20	25	Excl. VAT: £0.99 Incl. VAT: £1.19
M10 x 140mm Eye Bolt	10	10	140	20	30	Excl. VAT: £1.24 Incl. VAT: £1.49
M12 x 50mm Eye Bolt	12	12	50	25	29	Excl. VAT: £0.84 Incl. VAT: £1.01
M12 x 70mm Eye Bolt	12	12	70	25	29	Excl. VAT: £1.12 Incl. VAT: £1.34
M12 x 80mm Eye Bolt	12	12	80	25	29	Excl. VAT: £1.19 Incl. VAT: £1.43
M12 x 100mm Eye Bolt	12	12	100	25	32	Excl. VAT: £1.28 Incl. VAT: £1.54
M12 x 140mm Eye Bolt	12	12	140	25	38	Excl. VAT: £1.68 Incl. VAT: £2.02
M16 x 60mm Eye Bolt	16	16	60	32	43	Excl. VAT: £1.44 Incl. VAT: £1.73
M16 x 100mm Eye Bolt	16	16	100	32	43	Excl. VAT: £1.89 Incl. VAT: £2.27
M16 x 150mm Eye Bolt	16	16	150	32	43	Excl. VAT: £2.49 Incl. VAT: £2.99
