Wire Rope Lifting Slings

Wire Rope Lifting Strops - Galvanised and Stainless Steel Wire Slings

A selection of grade 80, galvanised and stainless steel wire rope lifting slings which are availble in different loads and lengths

Custom made in-house lifting strops conform to BS EN 13414-1-2003 Part 1 standard for wire slings 8mm - 30mm diameters

Our lifting strops are safe, reliable and always in stock for fast delivery

All lifting strops in this category are made in-house and come supplied with engraved markings for full traceability and guidance, all slings will marked with the following information: UKCA + CE, date of manufacture, serial number and supplied with a conformity certificate

Made In Britain


Wire rope slings are an important piece of rigging hardware used in lifting and hoisting operations and are commonly used across different industries. These slings connect the load to the lifting device and are available in a wide range of wire diameters and lengths to support a broad range of applications. All of our wire rope slings are made from 6x19 IWRC (7x19) flexible galvanised steel wire rope.

What are the advantages of wire rope lifting slings?

  • Lighter in weight than chain slings
  • Highly flexible
  • Smaller diameter design
  • High strength
  • The construction and design provide fatigue resistance, abrasion resistance, corrosion resistance, strength, and flexibility

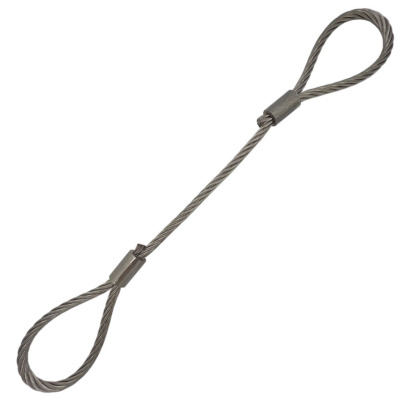

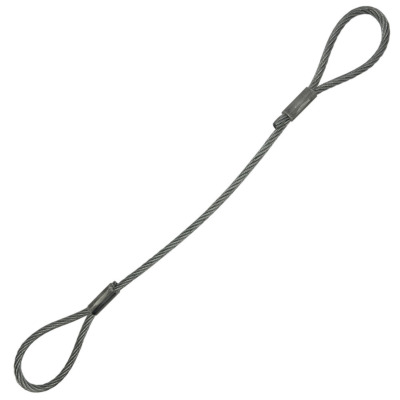

The average internal diameter of soft eye wire rope slings that we make to BS EN 13414-1-2003 Part 1 standard are approx 15x the diameter of the rope...

Eg.

4mm diameter wire - 60mm internal eye

5mm diameter wire - 75mm internal eye

6mm diameter wire - 90mm internal eye

8mm diameter wire - 120mm internal eye

10mm diameter wire - 150mm internal eye

13mm diameter wire - 185mm internal eye


Our wire rope slings are made and marked in-house, they are fully marked with serial numbers, the Working Load Limit, date of maunfacture and CE - UKCA logos.

All of our steel wire rope lifting strops conform to BS EN13414-1:2003 Part 1. Steel wire rope slings for general lifting service for 8mm – 30mm wire rope diameters




If you require a wire rope lifting sling to be custom made please get in touch with us for a quote
