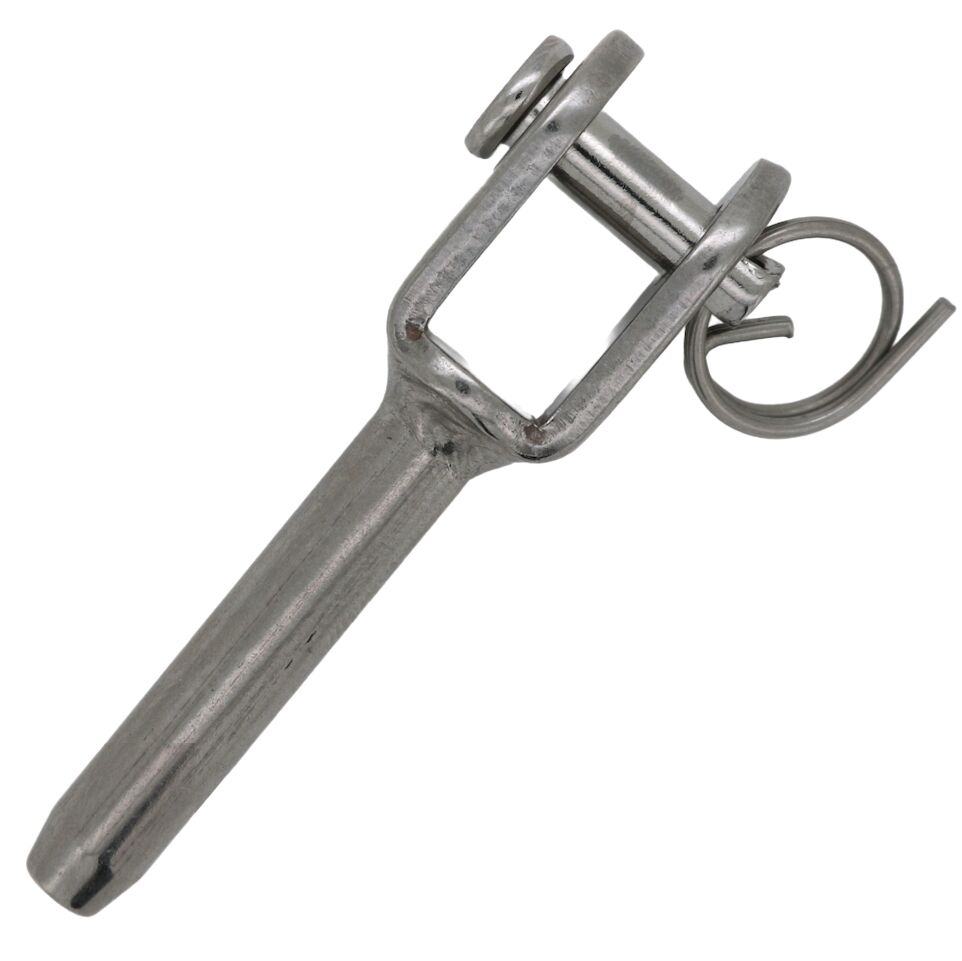

Stainless Steel Wire Rope Swage Jaw Fork Terminals - Mini Type

A4-AISI 316 marine grade stainless steel wire rope mini jaws with a polished finish

These mini wire rope rigging terminals are approximately 20% smaller than the standard jaw terminals. They need to be hydraulically swaged onto your steel wire rope. We can provide this service for you - email us for a quote.

This mini pattern wire rope fork end terminal has a removable clevis pin which is kept captive by a split ring.

Mini swage jaws available for 3mm, 4mm, 5mm and 6mm diameter stainless steel wire ropes. Order yours online today.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	A (mm)	B (mm)	L (mm)	P (mm)	Suit Wire Ø (mm)	PRICE
3mm Stainless Steel Swage Mini Jaw	14	8.5	56	4.5	3	£2.39 £1.99
4mm Stainless Steel Swage Mini Jaw	14	9.5	62	5.5	4	£2.69 £2.24
5mm Stainless Steel Swage Mini Jaw	17	12	68	7.5	5	£4.31 £3.59
6mm Stainless Steel Swage Mini Jaw	21	12.8	85	9.5	6	£5.99 £4.99

Show Price without VAT

Download Product Data Sheet

Steel wire rope rigging service

Our team of wire rope riggers can swage your stainless steel mini jaw terminals onto your steel wire rope for you, you can use our wire rope builder HERE or email us for a custom quote.
